Diesel Data: Automotive Repair

Clutch System (for E351)








CLUTCH: CLUTCH SYSTEM (for E351): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

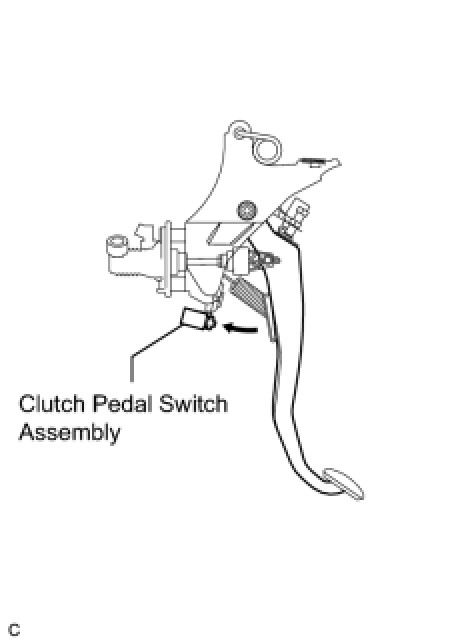

1. INSPECT CLUTCH PEDAL SWITCH ASSEMBLY





(a) Check that the engine does not start when the clutch pedal is released.
(b) Check that the engine starts when the clutch pedal is fully depressed.
If necessary, inspect and replace the clutch pedal switch assembly.
