Replacement

E351 MANUAL TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

REPLACEMENT

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN MANUAL TRANSAXLE OIL Service and Repair
4. REMOVE FRONT DRIVE SHAFT ASSEMBLY
Removal.

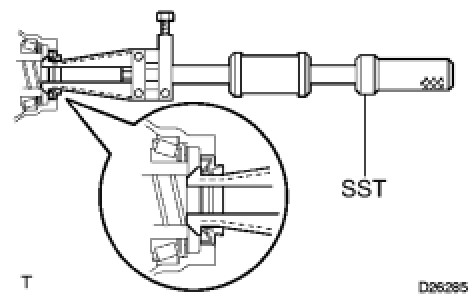

5. REMOVE TRANSAXLE CASE OIL SEAL





(a) Using SST, remove the transaxle case oil seal.
SST: 09308-00010
6. REMOVE TRANSMISSION CASE OIL SEAL





(a) Using SST, remove the transmission case oil seal.
SST: 09308-00010
7. INSTALL TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.





(b) Using SST and a hammer, tap in the oil seal.
SST: 09608-10010
SST: 09950-70010
09951-07200
Standard depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
NOTE: Do not damage the oil seal lip.

8. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.





(b) Using SST and a hammer, tap in the oil seal.
SST: 09608-32010
SST: 09950-70010
09951-07200
Standard depth:
3.0 to 4.0 mm (0.118 to 0.158 in.)
NOTE: Do not damage the oil seal lip.

9. INSTALL FRONT DRIVE SHAFT ASSEMBLY
Installation.
10. ADD MANUAL TRANSAXLE OIL Service and Repair
11. INSPECT MANUAL TRANSAXLE OIL Testing and Inspection
12. INSTALL ENGINE UNDER COVER LH
13. INSTALL ENGINE UNDER COVER RH
