E351 MANUAL TRANSMISSION / TRANSAXLE: MANUAL TRANSAXLE UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE CLUTCH RELEASE FORK SUB-ASSEMBLY

(a) Remove the clutch release fork sub-assembly together with the clutch release bearing assembly from the manual transaxle case.
2. REMOVE CLUTCH RELEASE BEARING ASSEMBLY
(a) Remove the clutch release bearing assembly and release bearing hub clip from the clutch release fork sub-assembly.
3. REMOVE RELEASE FORK SUPPORT

(a) Remove the release fork support from the manual transaxle case.
4. REMOVE CLUTCH RELEASE FORK BOOT
(a) Remove the clutch release fork boot from the manual transaxle case.
5. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
(a) Remove the bolt and speedometer driven hole cover sub-assembly.
(b) Remove the O-ring.
6. REMOVE CONTROL CABLE BRACKET

(a) Remove the 3 bolts and control cable bracket.
7. REMOVE SELECTING BELLCRANK ASSEMBLY

(a) Remove the 2 bolts and selecting bellcrank assembly from the manual transmission case.
8. REMOVE CONTROL SHIFT LEVER

(a) Remove the nut and spring washer.

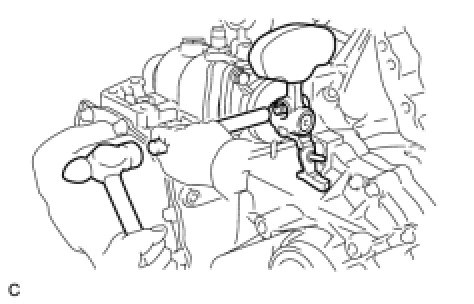

(b) Using a brass bar and hammer, remove the shift outer lever lock pin.
(c) Remove the control shift lever.
9. REMOVE NO. 2 CLUTCH TUBE BRACKET

(a) Remove the bolt and No. 2 clutch tube bracket.
10. SECURE MANUAL TRANSAXLE ASSEMBLY

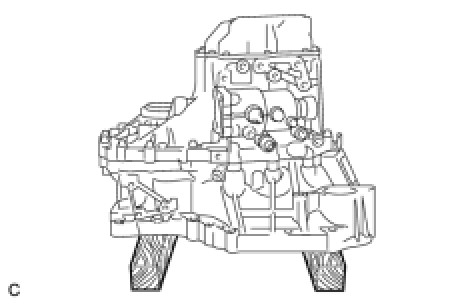

(a) Place the manual transaxle assembly on wooden blocks.
11. REMOVE NO. 1 LOCK BALL ASSEMBLY

(a) Remove the No. 1 lock ball assembly from the manual transmission case.
12. REMOVE SHIFT GATE PIN

(a) Remove the shift gate pin from the manual transmission case.
13. REMOVE MANUAL TRANSMISSION BREATHER PLUG

(a) Remove the manual transmission breather plug.
14. REMOVE CONTROL SHAFT COVER

(a) Remove the 4 bolts and control shaft cover from the manual transmission case.
15. REMOVE SHIFT AND SELECT LEVER SHAFT ASSEMBLY

(a) Remove the shift and select lever shaft assembly from the manual transmission case.
16. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

(a) Remove the back-up light switch assembly and gasket from the manual transmission case.
17. REMOVE MANUAL TRANSMISSION FILLER PLUG

(a) Remove the manual transmission filler plug and gasket from the manual transmission case.
18. REMOVE DRAIN PLUG SUB-ASSEMBLY

(a) Remove the drain plug sub-assembly and gasket from the manual transmission case.
19. REMOVE MANUAL TRANSMISSION CASE COVER SUB-ASSEMBLY

(a) Remove the 10 bolts and manual transmission case cover from the manual transmission case.
20. REMOVE MANUAL TRANSMISSION OUTPUT SHAFT REAR SET NUT

(a) Engage the 1st and 2nd gears simultaneously.

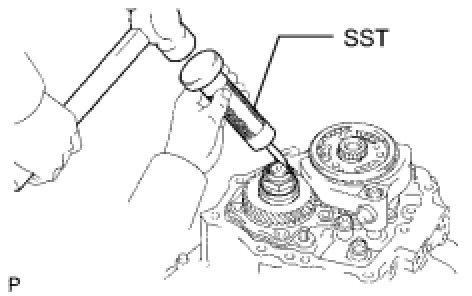

(b) Using SST and a hammer, unstake the manual transmission output shaft rear set nut.
SST: 09930-00010

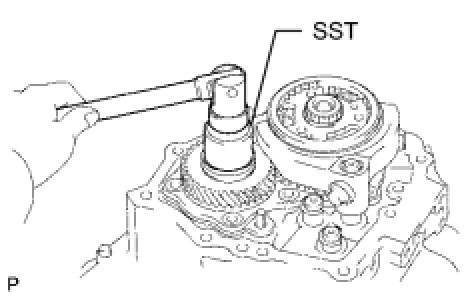

(c) Using SST, remove the manual transmission output shaft rear set nut from the output shaft.
SST: 09229-55010
(d) Disengage the gears.

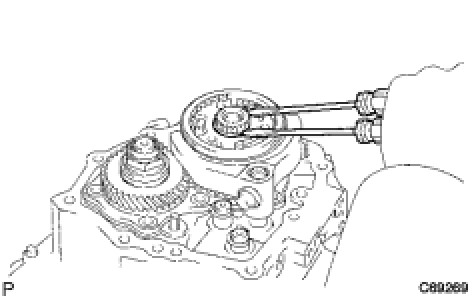

21. REMOVE NO. 3 TRANSMISSION CLUTCH HUB

(a) Using 2 screwdrivers and a hammer, remove the transmission clutch hub No. 3 shaft snap ring from the input shaft.
HINT: Use a piece of cloth to keep the snap ring from flying.

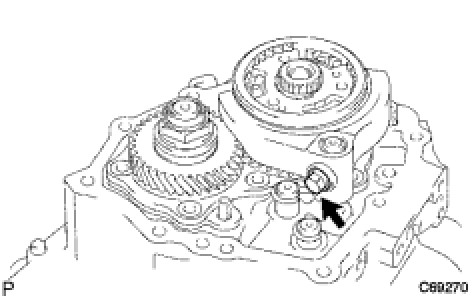

(b) Remove the shift fork set bolt from the No. 3 gear shift fork.

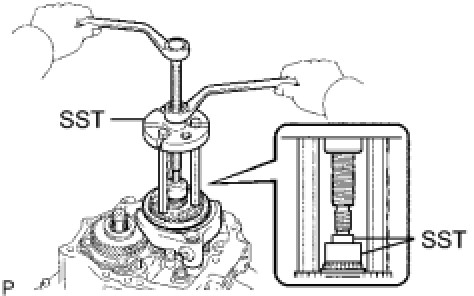

(c) Using SST, remove the No. 3 transmission clutch hub and No. 3 gear shift fork from the input shaft.
SST: 09950-30012
09951-03010
09953-03010
09954-03010
SST: 09950-50013
09957-04010
SST: 09950-60010
09951-00280
22. REMOVE 5TH GEAR

(a) Remove the 5th gear from the input shaft.
23. REMOVE 5TH GEAR NEEDLE ROLLER BEARING

(a) Remove the 5th gear needle roller bearing from the input shaft.
24. REMOVE 5TH DRIVEN GEAR

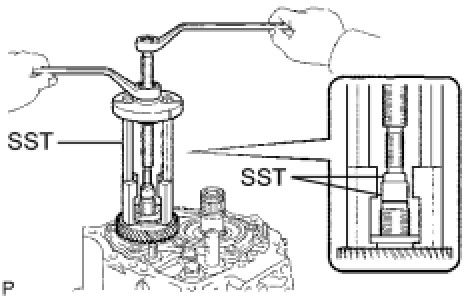

(a) Using SST, remove the 5th driven gear from the output shaft.
SST: 09950-30012
09951-03010
09953-03010
09954-03010
09957-04010
SST: 09950-60010
09951-00180
09955-03011
SST: 09950-50013

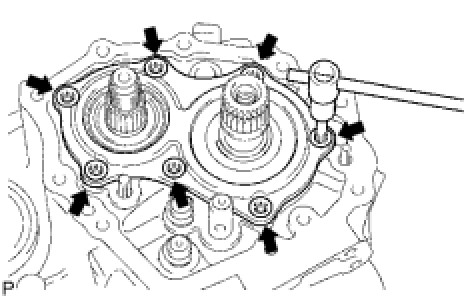

25. REMOVE REAR BEARING RETAINER

(a) Using a "TORX" socket wrench (T45), remove the 7 "TORX" screws and rear bearing retainer from the manual transmission case.
26. REMOVE OUTPUT SHAFT REAR BEARING SHIM

(a) Remove the output shaft rear bearing shim from the output shaft.
27. REMOVE INPUT SHAFT REAR BEARING SHAFT SNAP RING

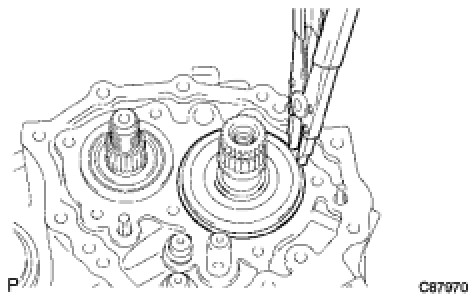

(a) Using a snap ring expander, remove the input shaft rear bearing shaft snap ring from the input shaft.
28. REMOVE SHIFT FORK SHAFT SNAP RING

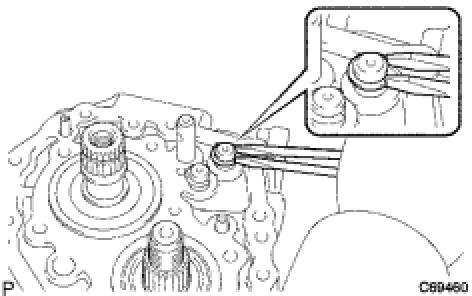

(a) Using 2 screwdrivers and a hammer, remove the shift fork shaft snap ring from the No. 1 gear shift fork shaft.
HINT: Use a piece of cloth to keep the snap ring from flying.

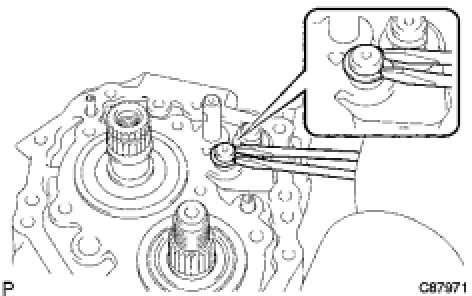

(b) Using 2 screwdrivers and a hammer, remove the shift fork shaft snap ring from the No. 2 gear shift fork shaft.
HINT: Use a piece of cloth to keep the snap ring from flying.

29. REMOVE REVERSE IDLER GEAR SHAFT BOLT

(a) Remove the reverse idler gear shaft bolt and gasket.
30. REMOVE MANUAL TRANSMISSION CASE

(a) Remove the 3 bolts from the manual transaxle case.

(b) Remove the 14 bolts from the manual transmission case.
(c) Using a plastic hammer, carefully tap the manual transmission case to remove it.
31. REMOVE REVERSE RESTRICT PIN ASSEMBLY

(a) Using a hexagon wrench (6 mm), remove the reverse restrict pin plug from the manual transmission case.

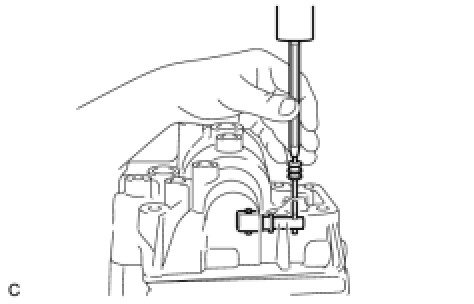

(b) Using a pin punch (dia 5 mm) and hammer, remove the slotted pin.

(a) Remove the bolt and No. 2 oil receiver pipe from the manual transmission case.
NOTE: Do not damage the pipe.

33. REMOVE NO. 1 OIL RECEIVER PIPE

(a) Remove the bolt and No. 1 oil receiver pipe from the manual transmission case.
NOTE: Do not damage the pipe.

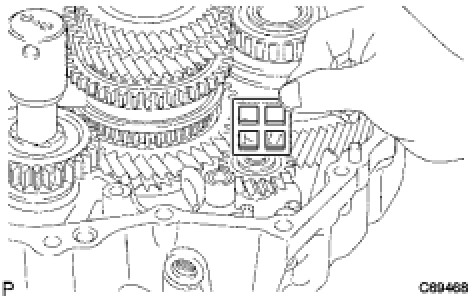

34. REMOVE TRANSMISSION MAGNET

(a) Remove the transmission magnet from the manual transaxle case.
35. REMOVE REVERSE IDLER GEAR SUB-ASSEMBLY

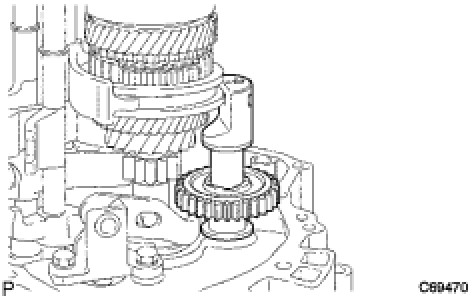

(a) Remove the reverse idler gear sub-assembly from the manual transaxle case.

(b) Remove the reverse gear and reverse idler thrust washer from the reverse idler gear shaft.
36. REMOVE REVERSE SHIFT ARM BRACKET ASSEMBLY

(a) Remove the 2 bolts and reverse shift arm bracket assembly from the manual transaxle case.
37. REMOVE NO. 1 GEAR SHIFT FORK SHAFT

(a) Remove the shift fork set bolt from the No. 1 gear shift fork.

(b) Pull out the No. 1 gear shift fork shaft while pulling up the No. 3 gear shift fork shaft.

(c) Using 2 screwdrivers and a hammer, remove the shift fork shaft snap ring from the No. 1 gear shift fork shaft.
HINT: Use a piece of cloth to keep the snap ring from flying.

38. REMOVE REVERSE SHIFT FORK ROLLER

(a) Using a magnetic pick-up tool, remove the reverse shift fork roller from the reverse shift fork.

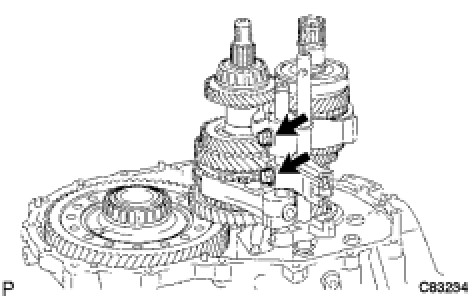

39. REMOVE NO. 2 GEAR SHIFT FORK SHAFT

(a) Remove the shift fork set bolt and shift head set bolt from the No. 2 gear shift fork and No. 1 gear shift head.

(b) Remove the No. 2 gear shift fork shaft and No. 1 gear shift head from the manual transaxle case.
40. REMOVE NO. 1 GEAR SHIFT FORK

(a) Remove the No. 1 gear shift fork.
41. REMOVE NO. 3 GEAR SHIFT FORK SHAFT

(a) Remove the No. 3 gear shift fork shaft from the manual transaxle case.

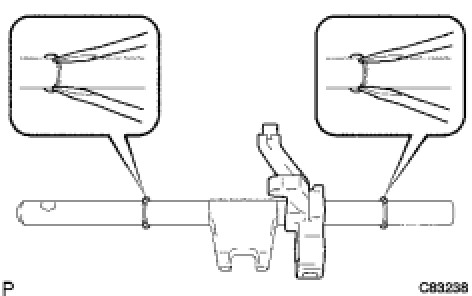

(b) Using 2 screwdrivers and a hammer, remove the 2 shift fork shaft snap rings from the No. 3 gear shift fork shaft.
(c) Remove the reverse shift fork from the No. 3 gear shift fork shaft.
42. REMOVE NO. 2 GEAR SHIFT FORK

(a) Remove the No. 2 gear shift fork from the input shaft assembly.
43. REMOVE INPUT SHAFT ASSEMBLY

(a) Tilt the output shaft, and then remove the input shaft from the manual transaxle case.
44. REMOVE OUTPUT SHAFT ASSEMBLY

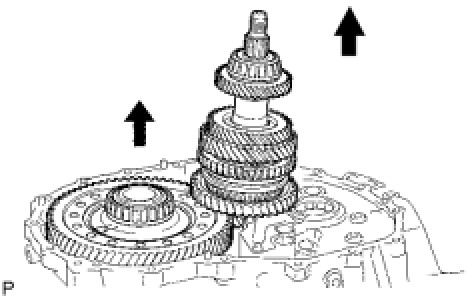

(a) Lift the differential case assembly while tilting the output shaft assembly.
(b) Remove the output shaft assembly from the manual transaxle case.
45. REMOVE DIFFERENTIAL CASE ASSEMBLY

(a) Remove the differential case assembly from the manual transaxle case.

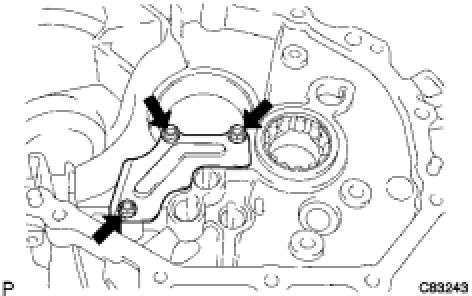

46. REMOVE MANUAL TRANSAXLE CASE RECEIVER

(a) Remove the 3 bolts and manual transaxle case receiver from the manual transaxle case.

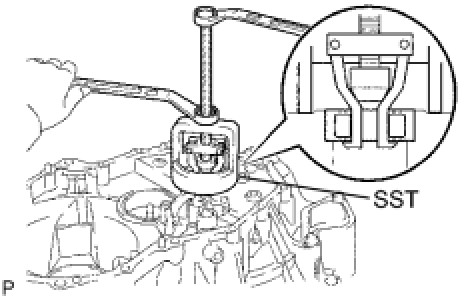

47. REMOVE INPUT SHAFT FRONT BEARING

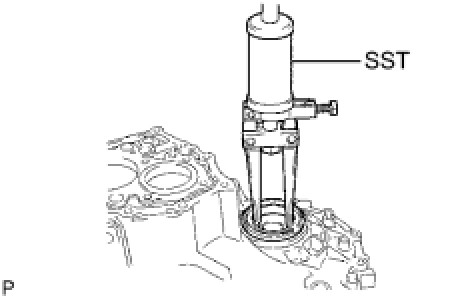

(a) Using SST, remove the input shaft front bearing (outer race) from the manual transaxle case.
SST: 09612-65014
09612-01040
09612-01050
48. REMOVE FRONT TRANSAXLE CASE COVER OIL SEAL

(a) Using SST, remove the front transaxle case cover oil seal from the manual transaxle case.
SST: 09612-65014
09612-01040
09612-01050

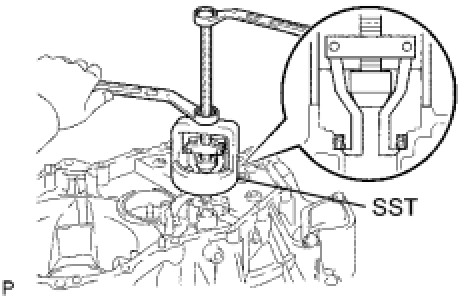

49. REMOVE OUTPUT SHAFT FRONT BEARING

(a) Using SST, remove the output shaft front bearing (outer race) from the manual transaxle case.
SST: 09387-00041
09387-02020
09387-02010

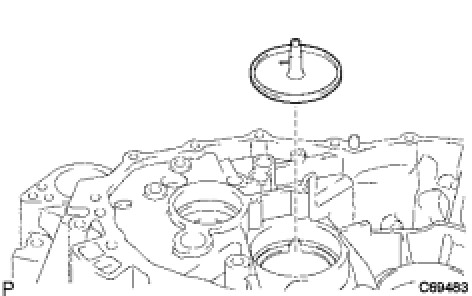

50. REMOVE OUTPUT SHAFT COVER

(a) Remove the output shaft cover from the manual transaxle case.
51. REMOVE OUTPUT SHAFT REAR BEARING

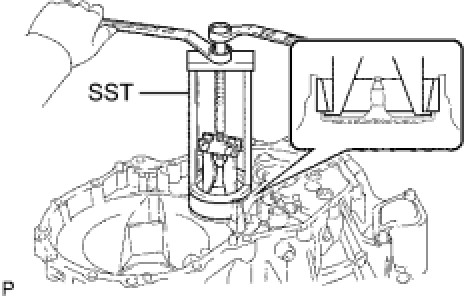

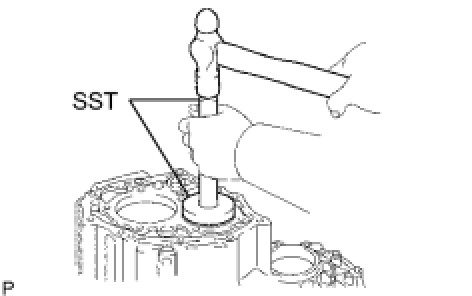

(a) Using SST and a hammer, remove the output shaft rear bearing from the manual transmission case (outer race).
SST: 09950-60010
09951-00680
SST: 09950-70010
09951-07100
52. REMOVE TRANSMISSION CASE OIL SEAL

(a) Using SST, remove the transmission case oil seal from the manual transmission case.
SST: 09308-00010
53. REMOVE TRANSAXLE CASE OIL SEAL

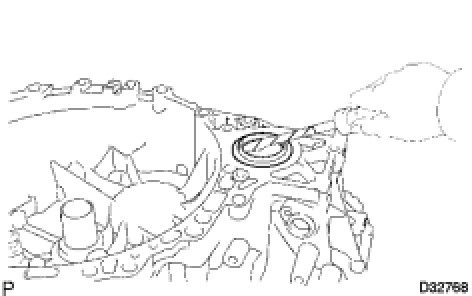

(a) Using a screwdriver, remove the transaxle case oil seal.
HINT: Tape the screwdriver tip before use to avoid damage.
