E351 MANUAL TRANSMISSION / TRANSAXLE: MANUAL TRANSAXLE UNIT: DISASSEMBLY

DISASSEMBLY CONTINUED


54. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

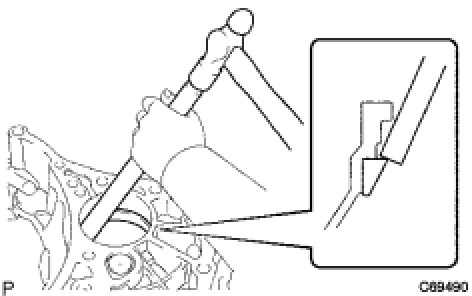

(a) Using a brass bar and a hammer, remove the front differential case front tapered roller bearing (outer race) from the manual transaxle case.

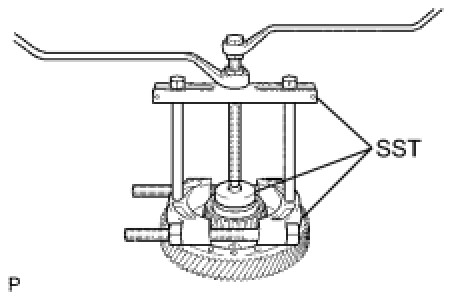

(b) Using SST, remove the front differential case front tapered roller bearing from the front differential case.
SST: 09950-00020
SST: 09950-00030
SST: 09950-40011
09957-04010
SST: 09950-60010
09951-00560
55. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

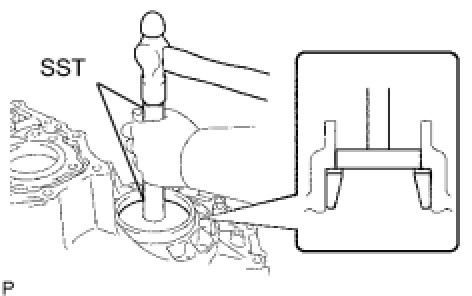

(a) Using SST and a hammer, remove the front differential case rear tapered roller bearing (outer race) and front differential case rear shim from the manual transmission case.
SST: 09950-60020
09951-00790
SST: 09950-70010
09951-07100

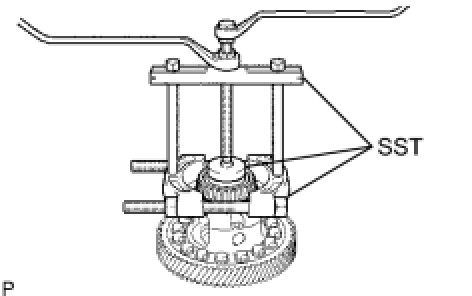

(b) Using SST, remove the front differential case rear tapered roller bearing (inner race) from the front differential case.
SST: 09950-60020
SST: 09950-00030
SST: 09950-40011
09957-04010
SST: 09950-60010
09951-00490
56. REMOVE NO. 3 TRANSMISSION HUB SLEEVE

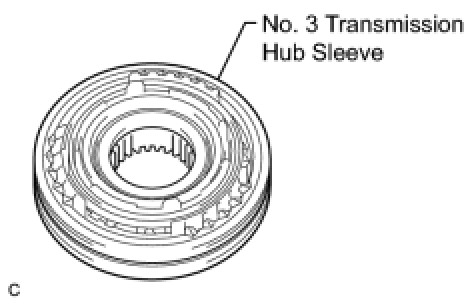

(a) Remove the No. 3 transmission hub sleeve from the No. 3 transmission clutch hub.
57. REMOVE NO. 3 SYNCHROMESH SHIFTING KEY SPRING

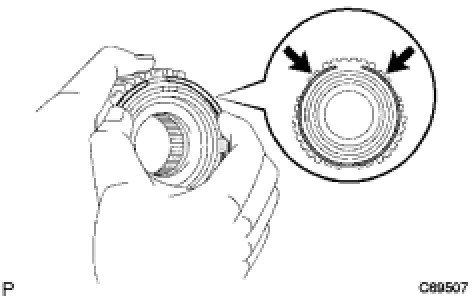

(a) Remove the 2 No. 3 synchromesh shifting key springs from the No. 3 transmission clutch hub while pushing on the No. 3 synchromesh shifting key spring.
58. REMOVE SYNCHRONIZER PULL RING

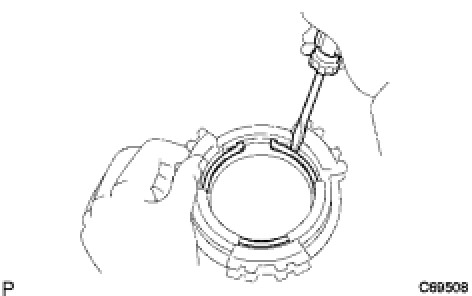

(a) Using a screwdriver, remove the synchronizer pull ring snap ring.
(b) Remove the synchronizer pull ring, No. 5 synchronizer ring outer, No. 5 synchronizer ring inner, and No. 5 synchronizer ring middle from the No. 5 synchronizer ring inner.
