A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Active Torque Control 4WD System
Active Torque Control 4WD System
MF1A TRANSFER / 4WD / AWD: ACTIVE TORQUE CONTROL 4WD SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

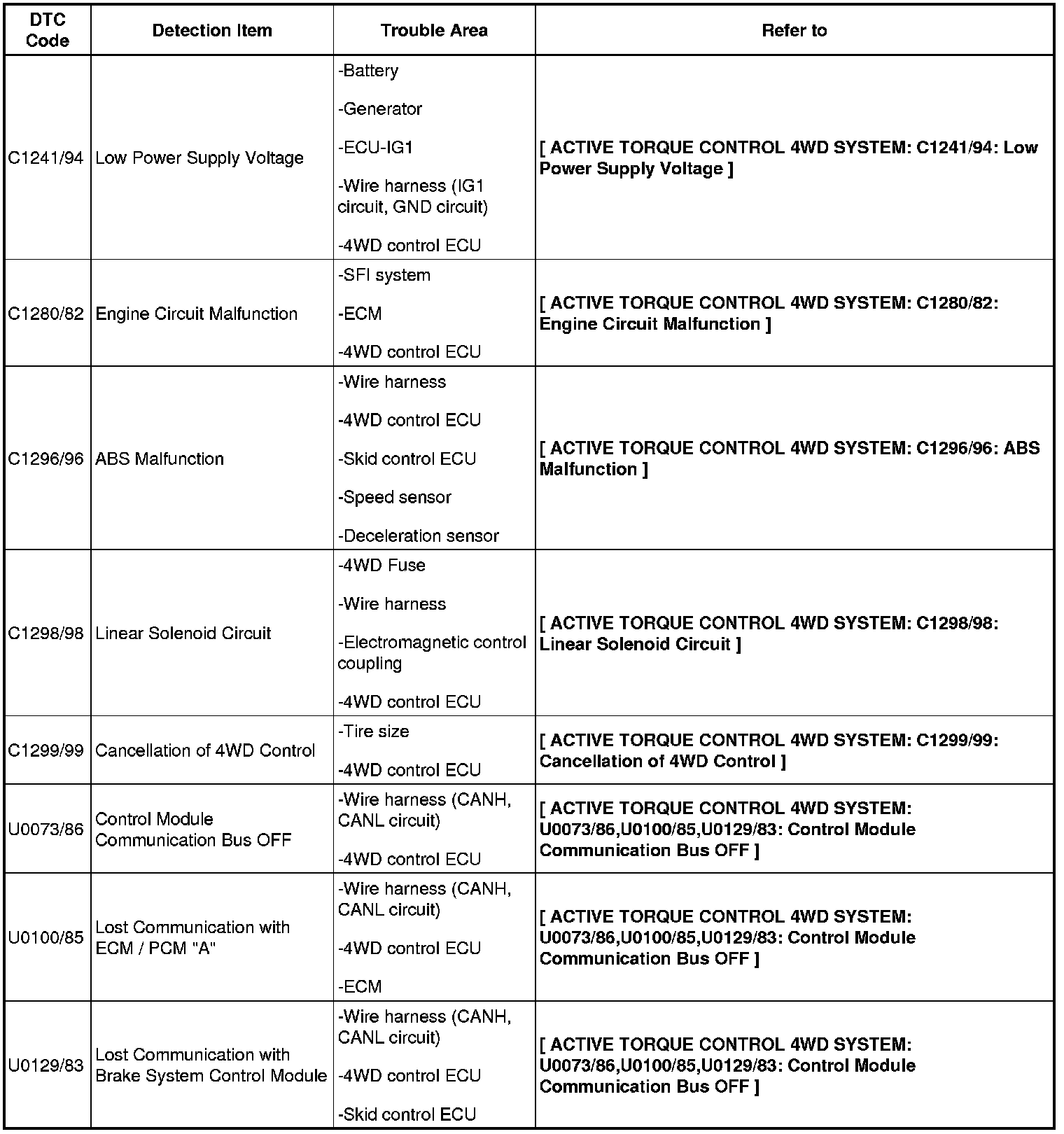

DIAGNOSTIC TROUBLE CODE CHART
C1241 - C1299 / U0073 - U0129:
