Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Service and Repair
>>
Components
Components
SLIDING ROOF / CONVERTIBLE: SLIDING ROOF HOUSING: COMPONENTS
COMPONENTS

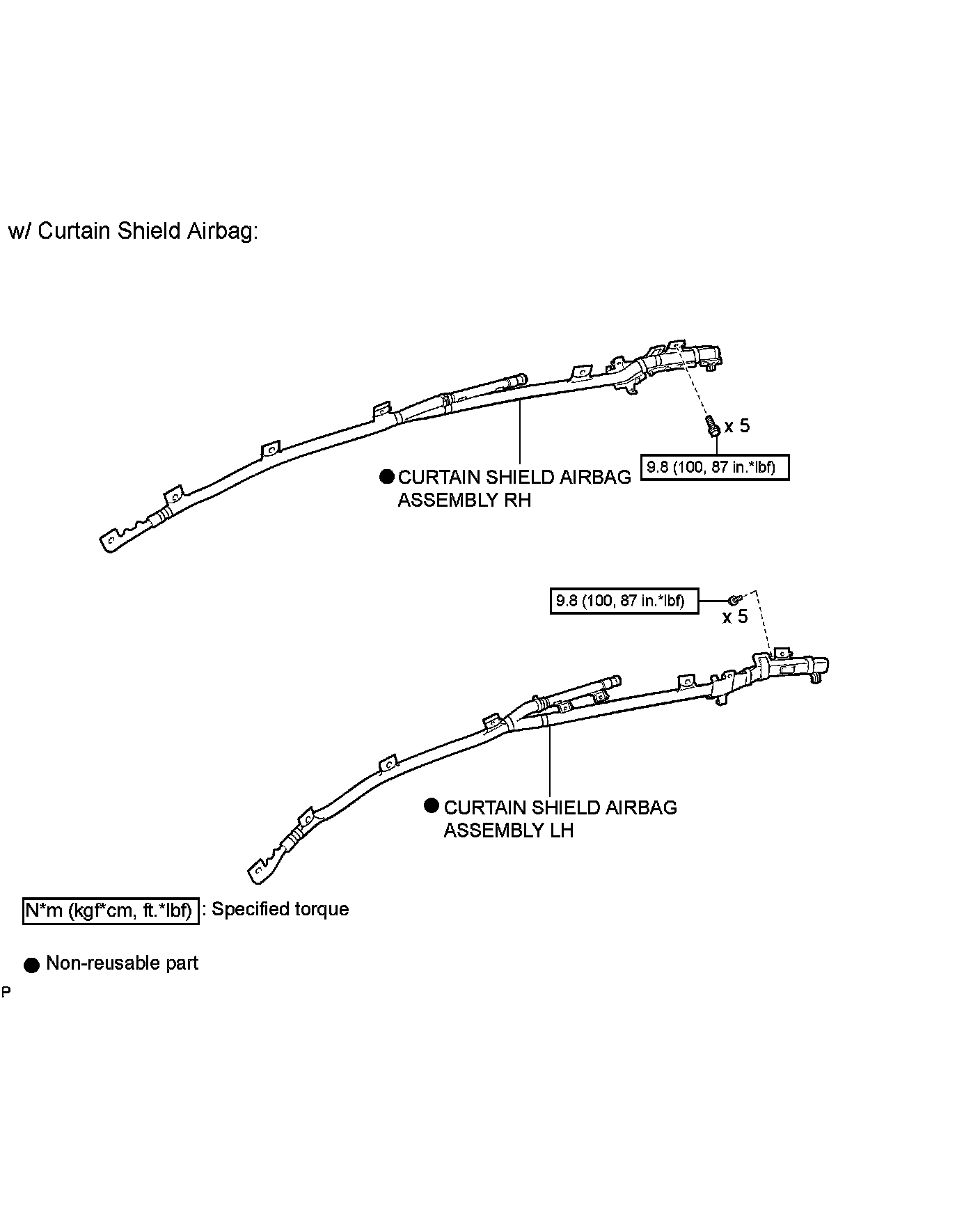

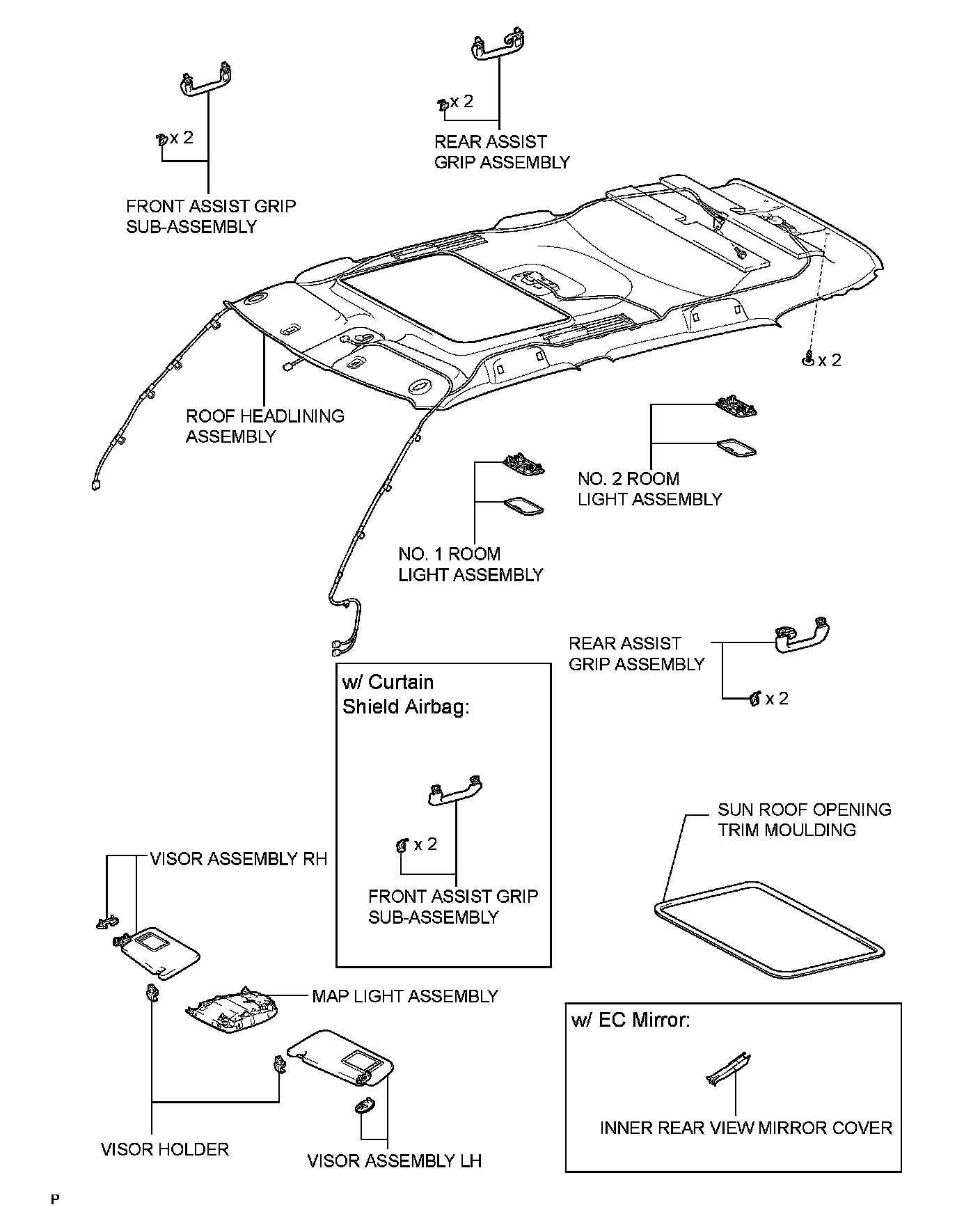

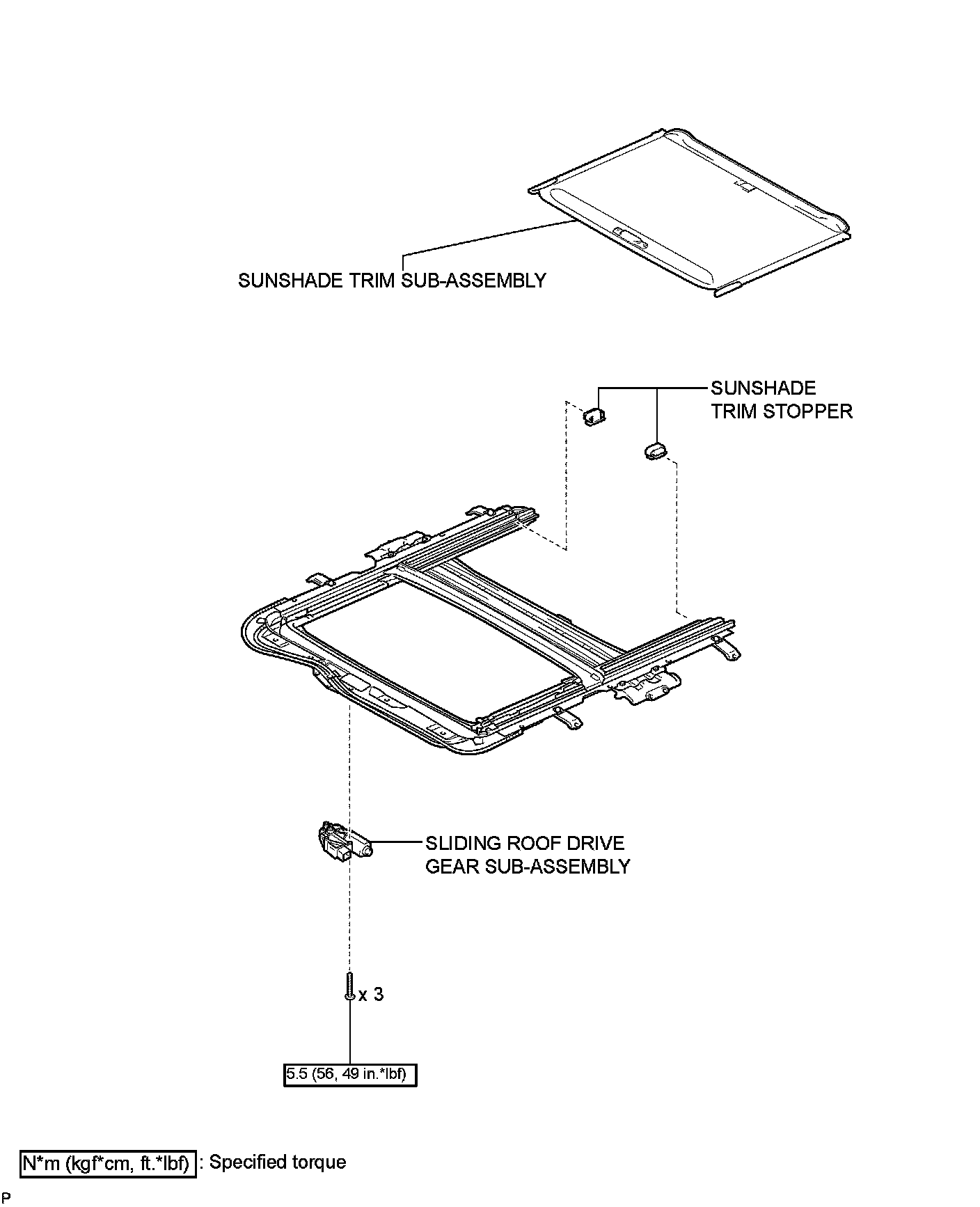

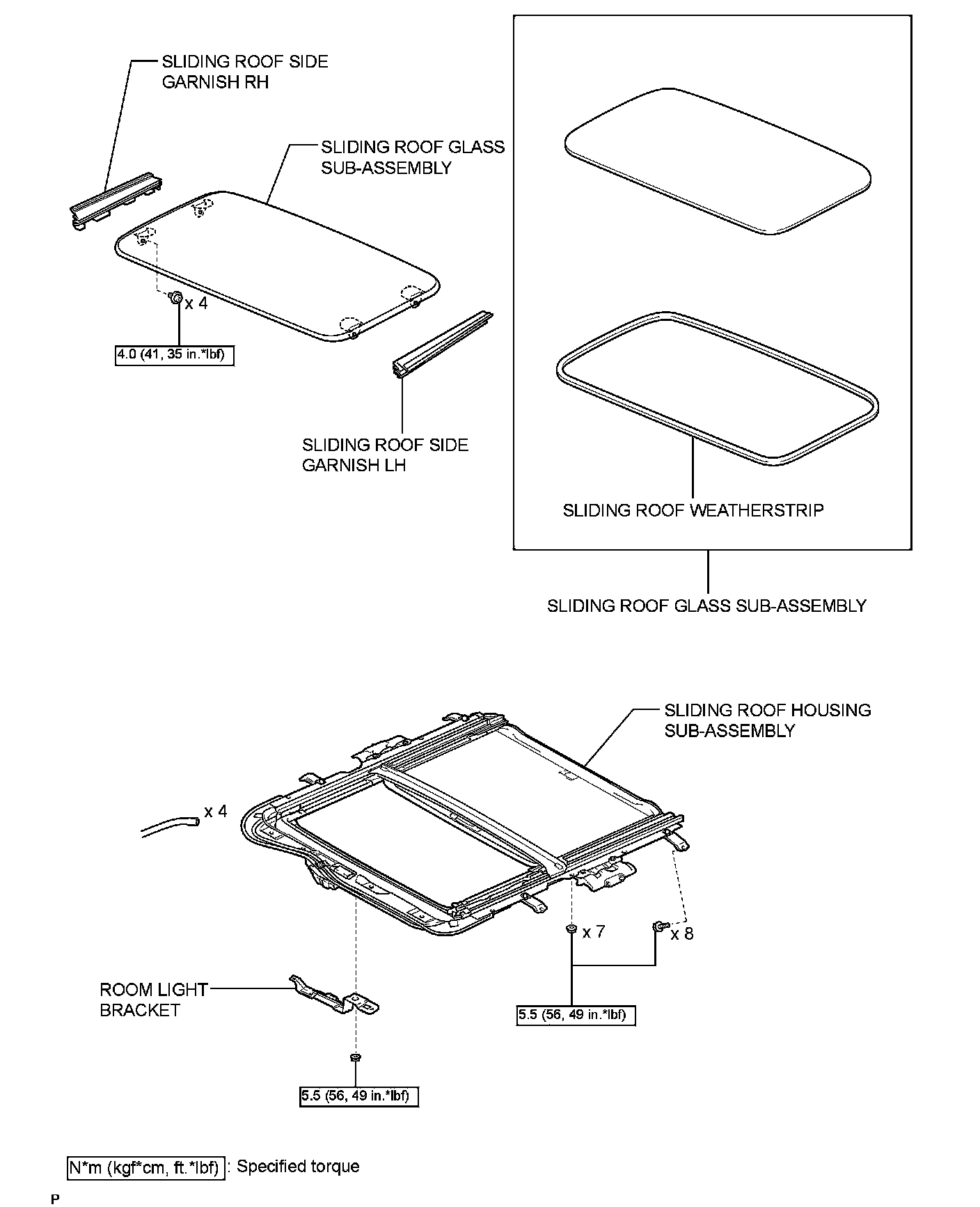

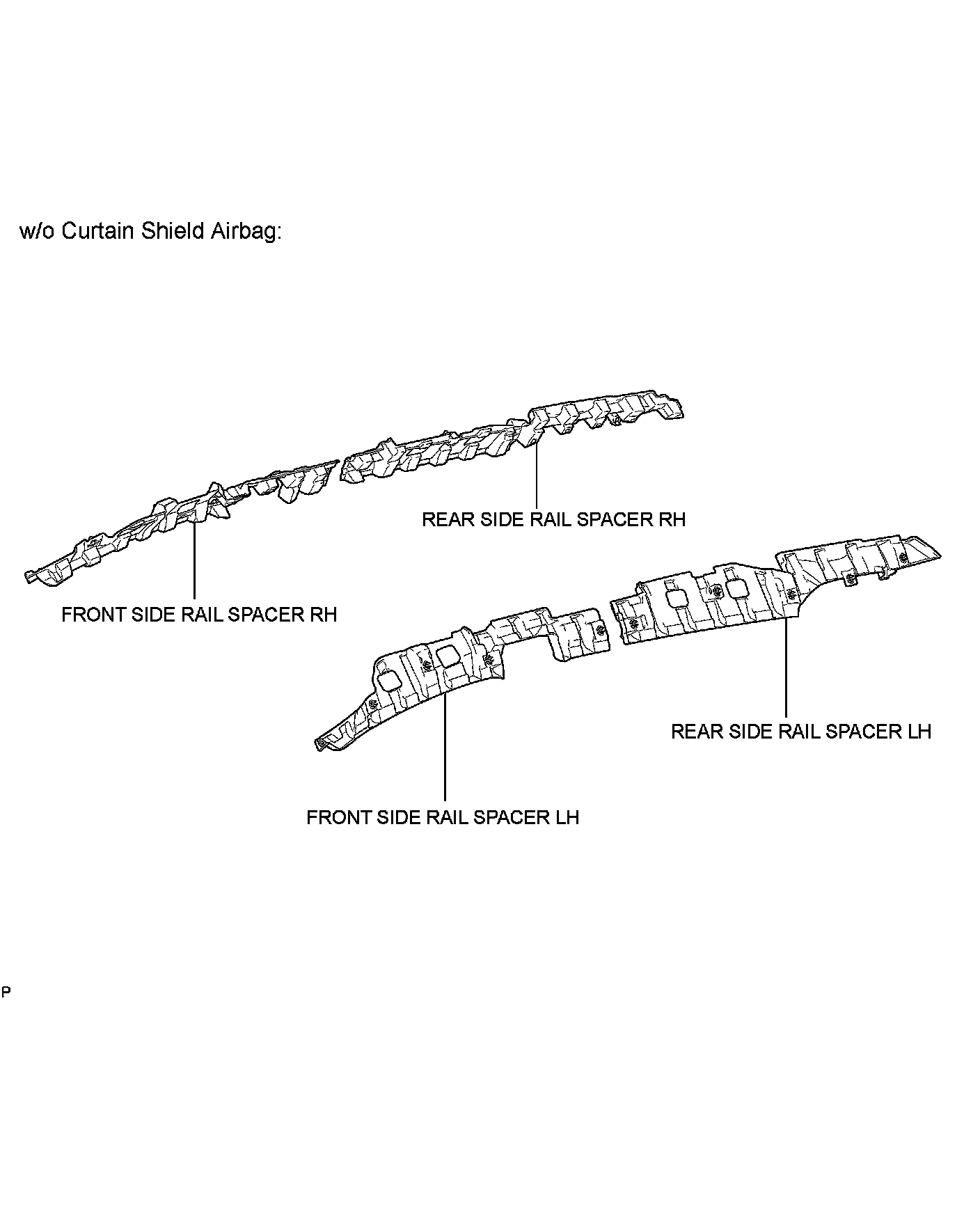

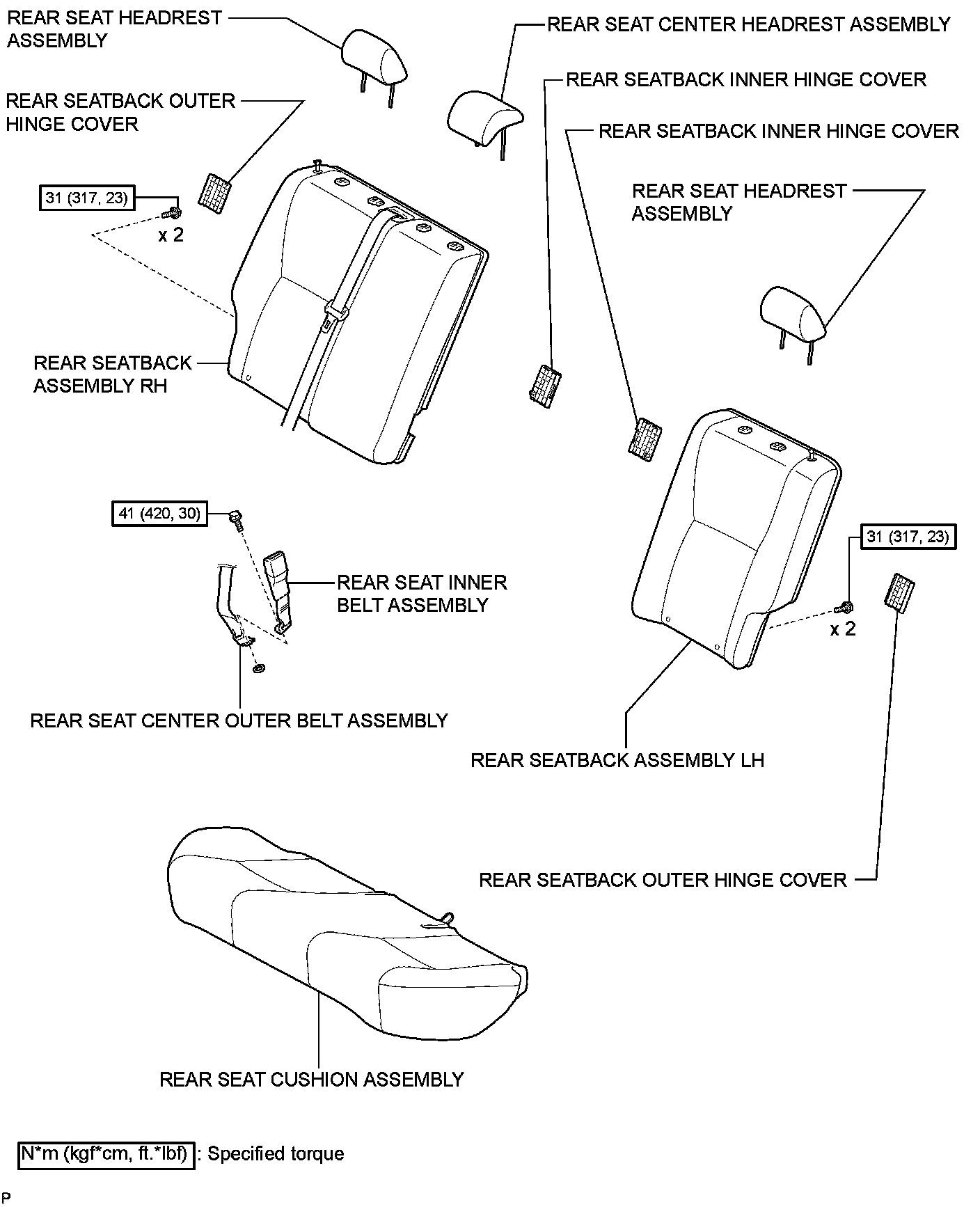

ILLUSTRATION
