Emission Control Systems: Description and Operation








2AZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM:

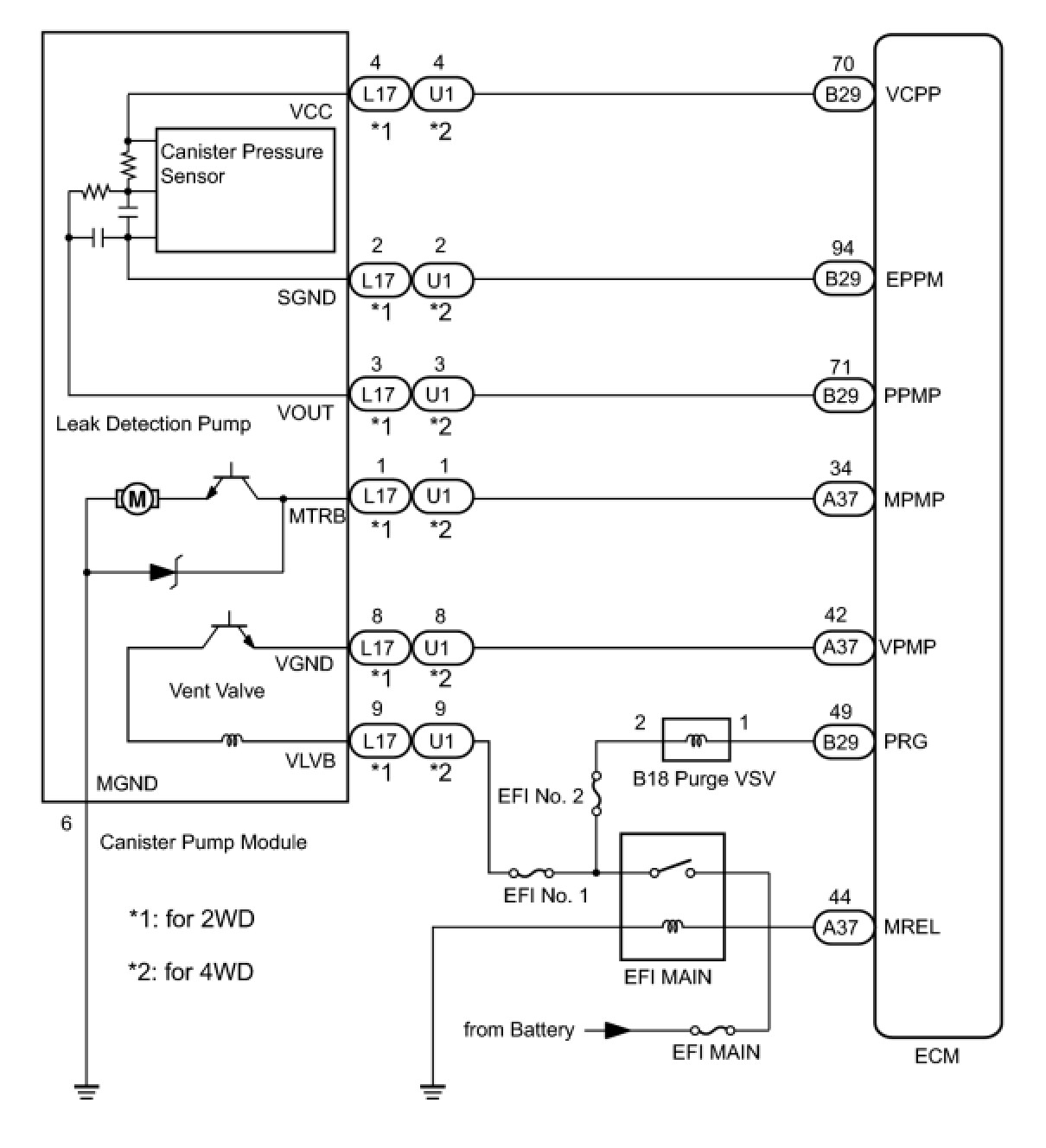

SYSTEM DIAGRAM
