Installation

2AZ-FE EMISSION CONTROL: CANISTER (for 4WD): INSTALLATION

INSTALLATION

1. INSTALL CHARCOAL CANISTER ASSEMBLY

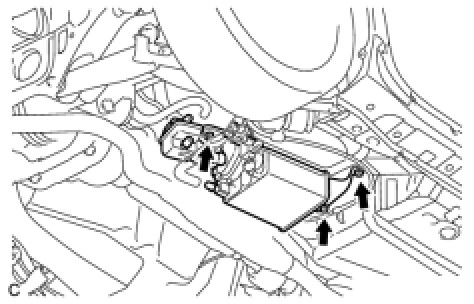

(a) Install the charcoal canister assembly with the 3 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)

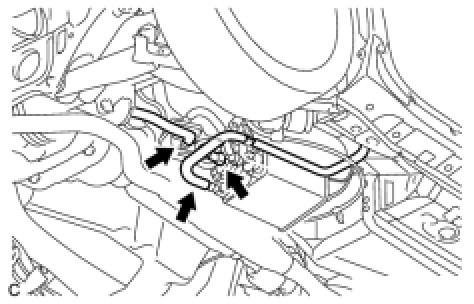

(b) Connect the fuel tank vent hose to the charcoal canister.
(c) Connect the charcoal canister filter sub-assembly to the charcoal canister.
(d) Connect the fuel tank vent hose to the charcoal canister.





(e) Connect the purge line hose.
2. INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
(a) Install the No. 1 fuel tank protector sub-assembly with the 3 bolts and 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
