Home
>>
Toyota
>>
2009
>>
Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Service and Repair
>>
Components
Components

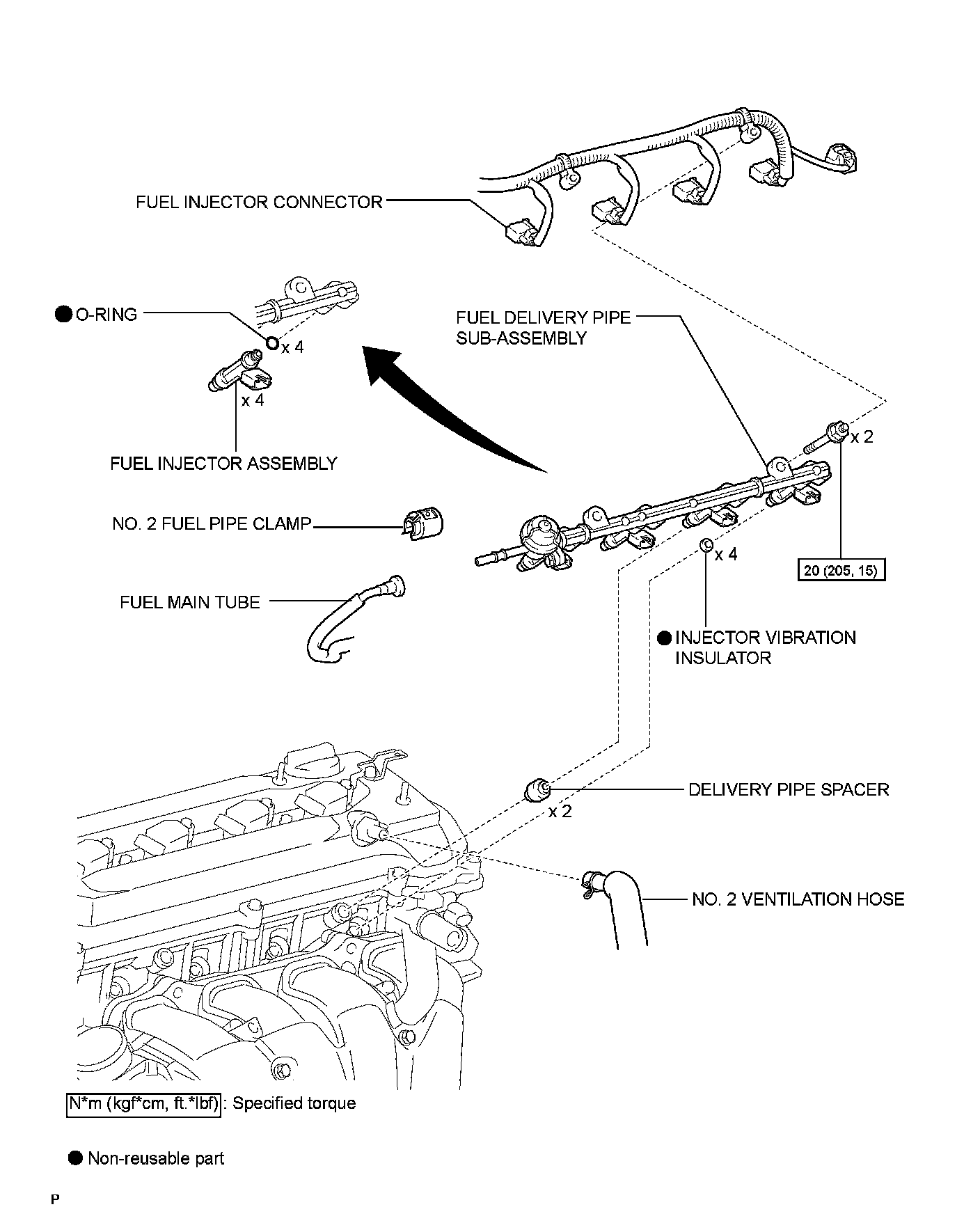

2AZ-FE FUEL:
FUEL INJECTOR
: COMPONENTS
COMPONENTS
ILLUSTRATION
