Ignition System: Locations

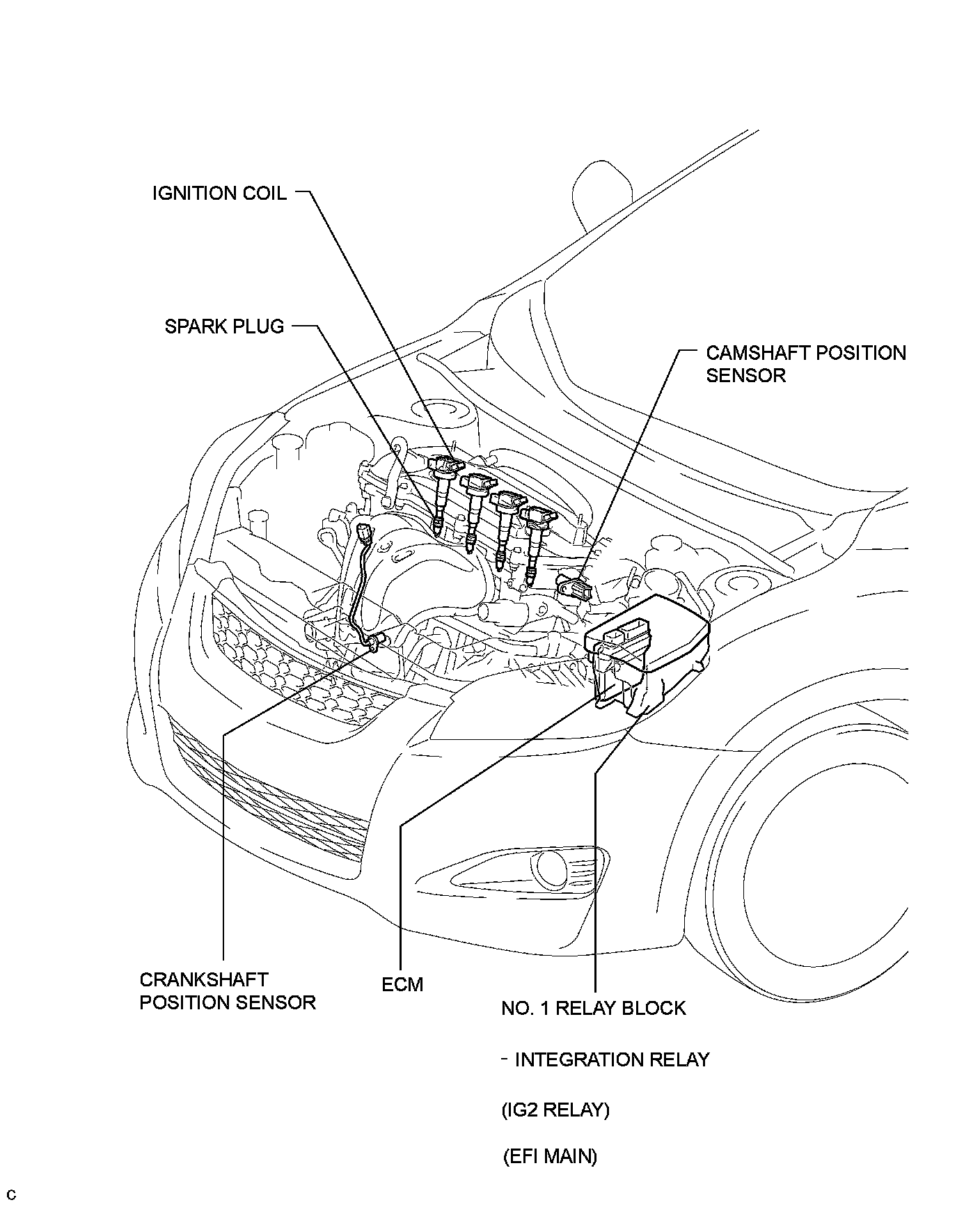

2AZ-FE ENGINE CONTROL: IGNITION SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
