Charging System: Description and Operation

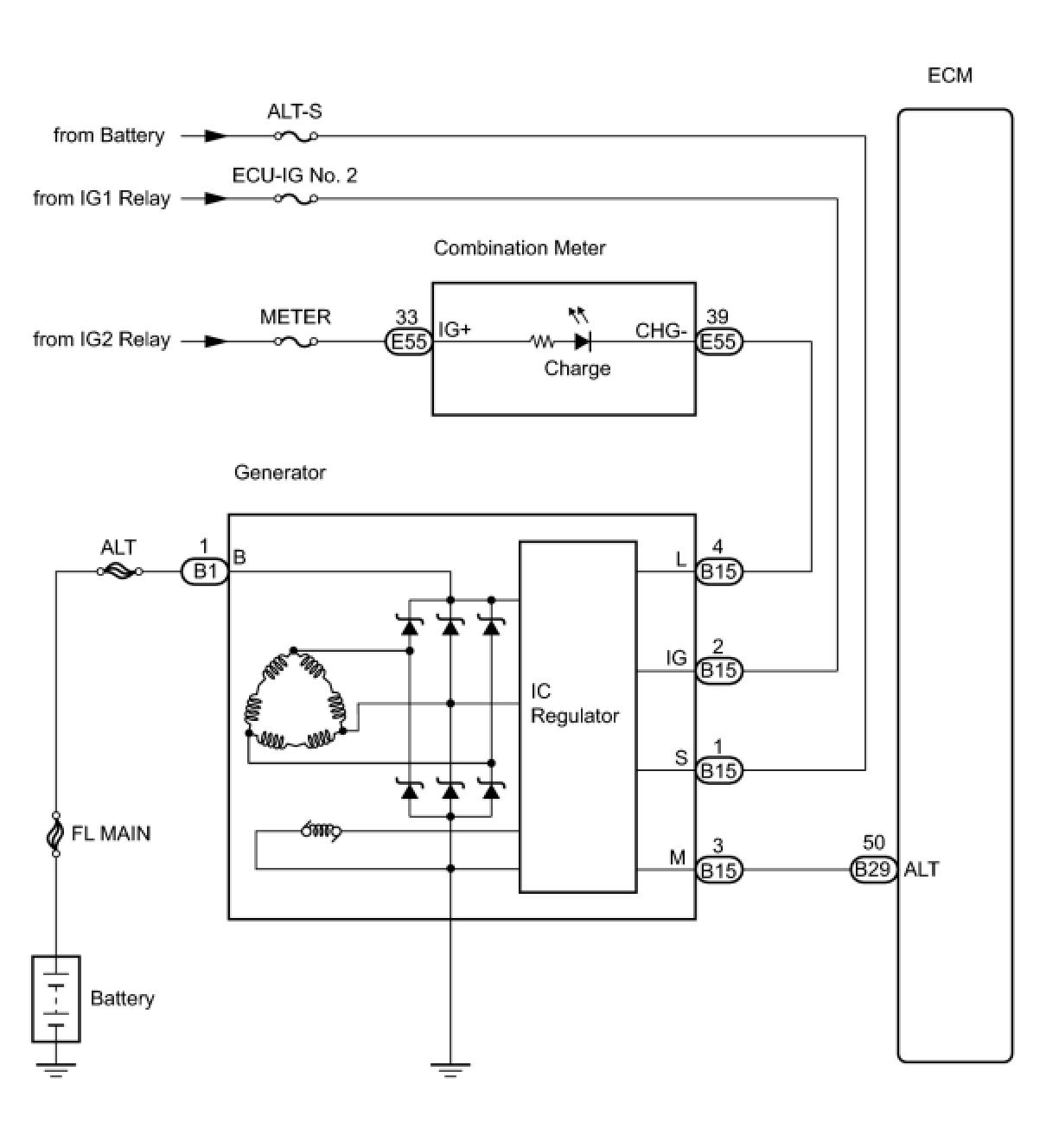

2AZ-FE BATTERY / CHARGING: CHARGING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
