Reassembly

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: OIL PUMP: REASSEMBLY

REASSEMBLY

1. INSTALL FRONT OIL PUMP OIL SEAL





(a) Using SST and a hammer, install a new oil seal to the pump.
SST: 09350-32014
09351-32140
Standard depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
HINT: The seal end should be flush with the outer edge of the oil pump.

(b) Coat the lip of the oil seal with petroleum jelly.

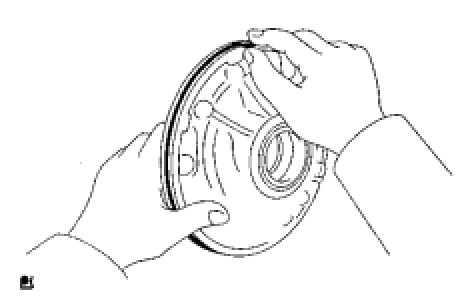

2. INSTALL FRONT OIL PUMP BODY O-RING





(a) Coat a new O-ring with ATF, and install it to the oil pump body.

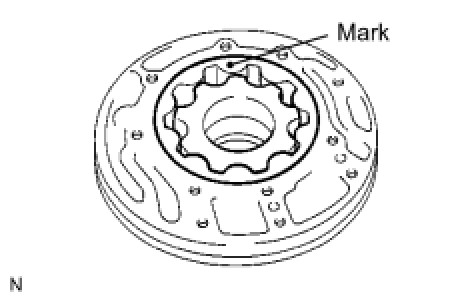

3. INSTALL FRONT OIL PUMP DRIVEN GEAR





(a) Coat the front oil pump driven gear with ATF, and install it to the oil pump body with the marked side facing up.

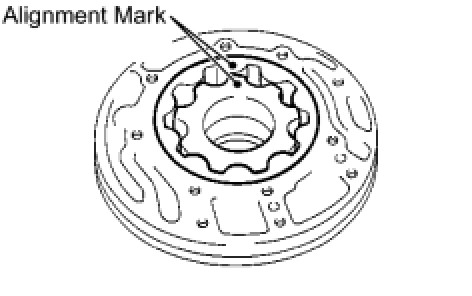

4. INSTALL FRONT OIL PUMP DRIVE GEAR





(a) Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side facing up.

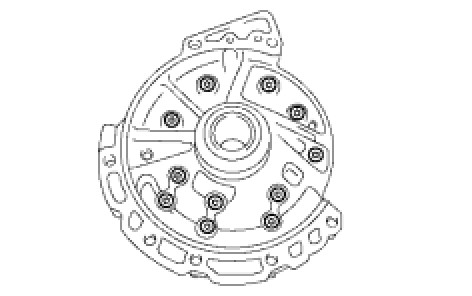

5. INSTALL STATOR SHAFT ASSEMBLY





(a) Set the stator shaft by aligning each bolt hole.
(b) Using a T30 ''TORX'' socket wrench, install the 11 bolts.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)

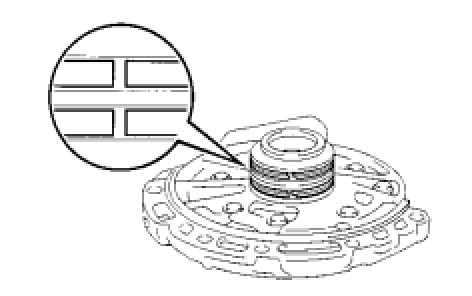

6. INSTALL CLUTCH DRUM OIL SEAL RING





(a) Install the 2 clutch drum oil seal rings.
NOTE: Do not expand the ring ends excessively.

7. INSPECT OIL PUMP ASSEMBLY Oil Pump
