Components

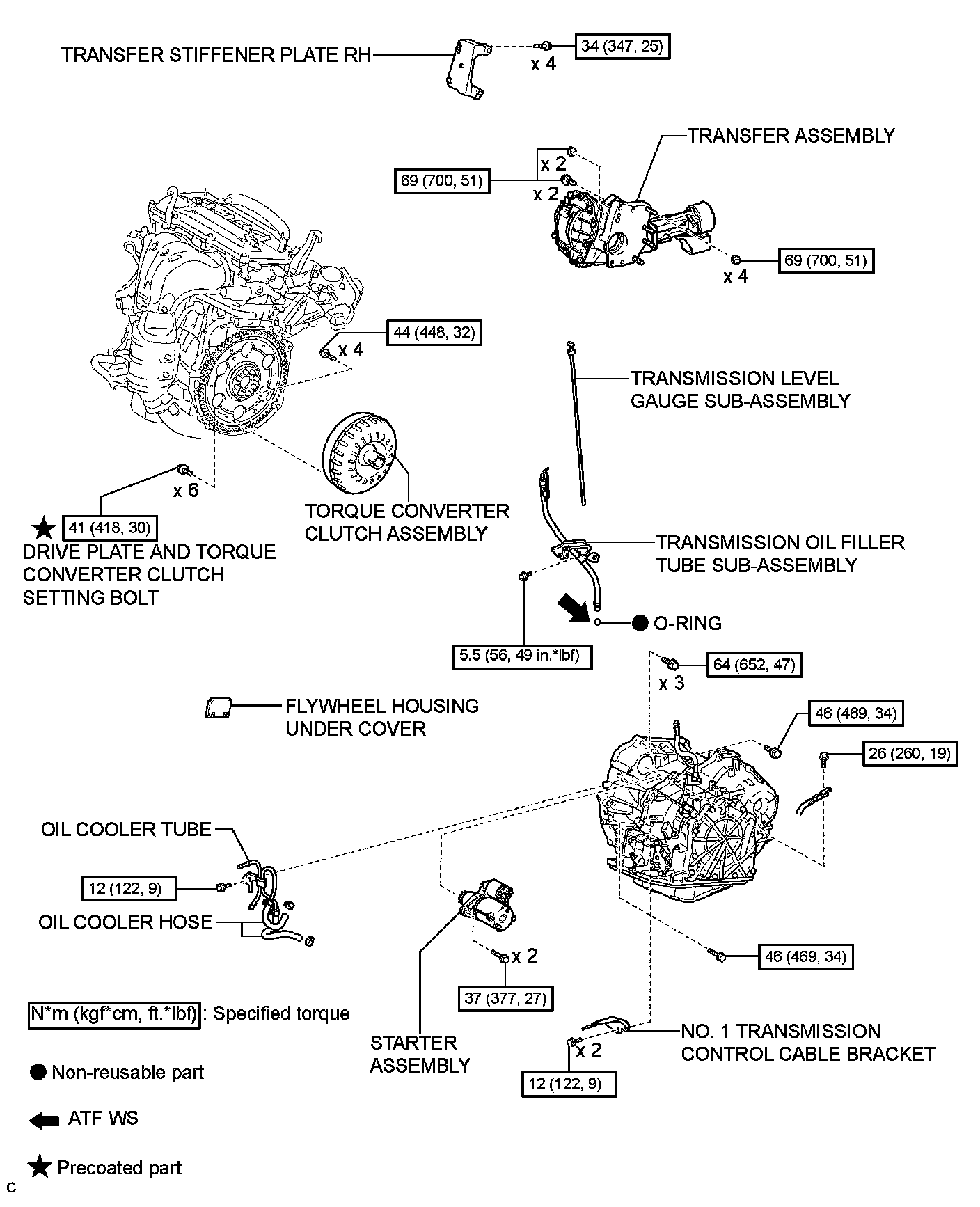

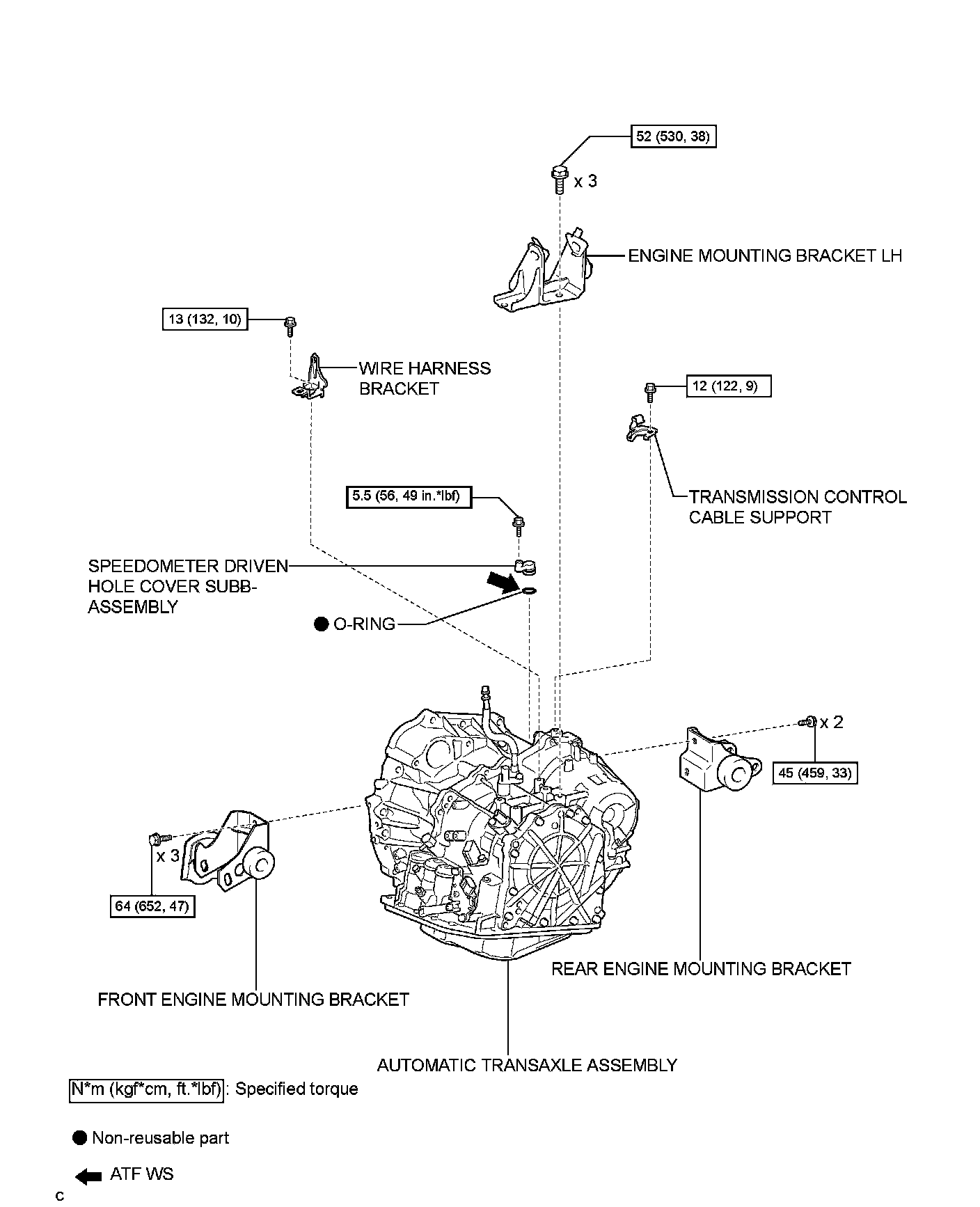

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE ASSEMBLY: COMPONENTS

COMPONENTS

ILLUSTRATION
