Reassembly

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

REASSEMBLY

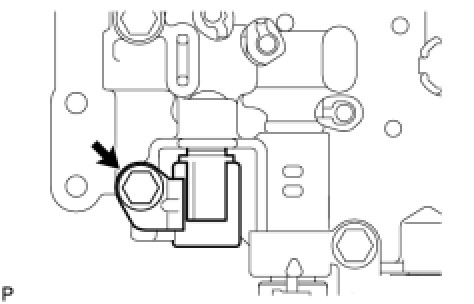

1. INSTALL SHIFT SOLENOID VALVE S4





(a) Install the shift solenoid valve S4 to the valve body with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)

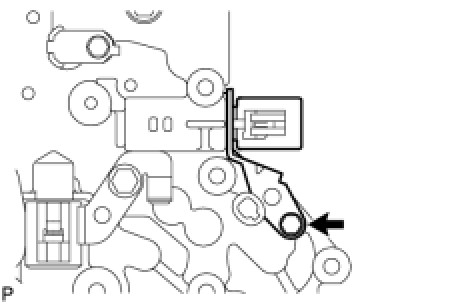

2. INSTALL SHIFT SOLENOID VALVE SL2





(a) Install the shift solenoid valve SL2 to the valve body with the bolt and plate.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)

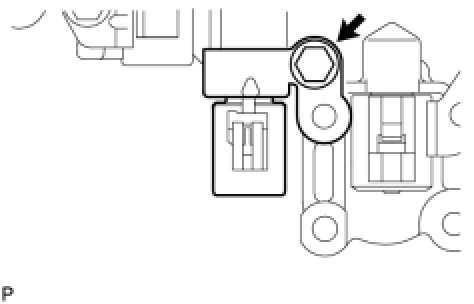

3. INSTALL SHIFT SOLENOID VALVE DSL





(a) Install the shift solenoid valve DSL to the valve body with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)

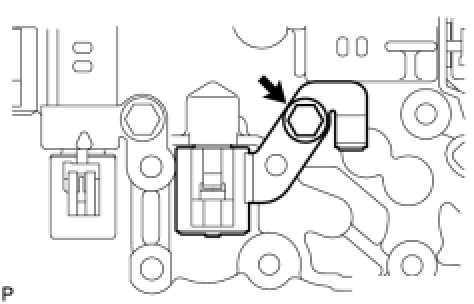

4. INSTALL SHIFT SOLENOID VALVE SL1





(a) Install the shift solenoid valve SL1 to the valve body with the bolt and plate.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)

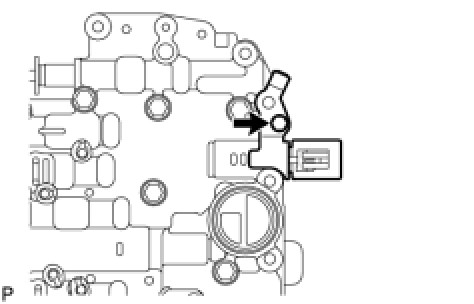

5. INSTALL SHIFT SOLENOID VALVE SLT





(a) Install the shift solenoid valve SLT to the valve body with the bolt and plate.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)
