Installation

DRIVE SHAFT / PROPELLER SHAFT: REAR DRIVE SHAFT ASSEMBLY (for 4WD): INSTALLATION

INSTALLATION
HINT:
- Use the same procedure for the RH side and LH side.
- The procedure listed below is for the LH side.

1. INSTALL REAR DRIVE SHAFT SNAP RING
(a) Install a new rear drive shaft snap ring.
2. INSTALL REAR DRIVE SHAFT ASSEMBLY

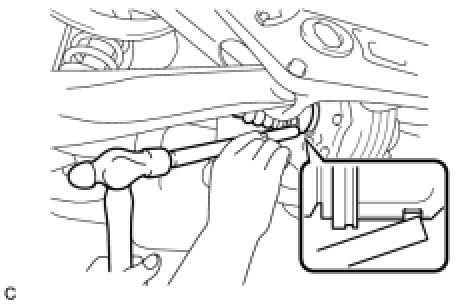

(a) Align the shaft splines and install the rear drive shaft assembly with a brass bar and a hammer.

NOTICE:
- Set the snap ring with the opening facing downward.
- Be careful not to damage the oil seal, boot, or dust cover.
- Install the drive shaft assembly while keeping it level.

3. INSTALL REAR AXLE ASSEMBLY Installation
4. TEMPORARILY TIGHTEN UPPER CONTROL ARM ASSEMBLY Installation
5. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY Installation
6. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY Installation
7. INSTALL REAR STABILIZER LINK ASSEMBLY Installation
8. INSTALL REAR SPEED SENSOR Installation
9. APPLY HIGH TEMPERATURE GREASE Reassembly
10. INSTALL NO. 1 PARKING BRAKE SHOE HOLD DOWN SPRING PIN Reassembly
11. INSTALL NO. 2 PARKING BRAKE SHOE HOLD DOWN SPRING PIN Reassembly
12. INSTALL PARKING BRAKE SHOE LEVER Reassembly
13. INSTALL NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING Reassembly
14. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET Reassembly
15. INSTALL PARKING BRAKE SHOE LEVER Reassembly
16. INSTALL NO. 2 PARKING BRAKE SHOE HOLD DOWN COMPRESSION SPRING Reassembly
17. INSTALL PARKING BRAKE SHOE STRUT Reassembly
18. INSTALL NO. 1 PARKING BRAKE SHOE HOLD DOWN COMPRESSION SPRING Reassembly
19. INSTALL NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING Reassembly
20. INSTALL NO. 3 PARKING BRAKE SHOE RETURN TENSION SPRING Reassembly
21. CHECK PARKING BRAKE INSTALLATION Reassembly
22. INSTALL REAR DISC Reassembly
23. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Replacement
24. ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL Adjustments
25. INSTALL REAR AXLE SHAFT NUT
(a) Clean the threaded parts on the drive shaft and axle shaft nut using a non-residue solvent.
NOTICE:
- Be sure to perform this work for a new drive shaft.
- Keep the threaded parts free of oil and foreign matter.





(b) Install a new rear axle shaft nut LH.
Torque: 216 Nm (2203 kgf-cm, 159 ft-lbf)

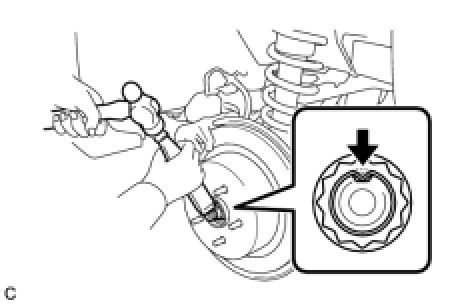

(c) Using a chisel and a hammer, stake the rear axle shaft nut LH.
26. ADD DIFFERENTIAL OIL Service and Repair
27. INSPECT AND ADJUST DIFFERENTIAL OIL Service and Repair
28. INSTALL REAR WHEEL
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
29. STABILIZE SUSPENSION Installation
30. FULLY TIGHTEN UPPER CONTROL ARM ASSEMBLY Installation
31. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY Installation
32. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
HINT: Rear Wheel Alignment (for Double Wishbone Type Suspension)

33. CHECK ABS SPEED SENSOR SIGNAL
HINT:
- w/o VSC Test Mode Procedure
- w/ VSC Test Mode Procedure
