Replacement

MF1A TRANSFER / 4WD / AWD: TRANSFER CASE REAR OIL SEAL: REPLACEMENT

REPLACEMENT

1. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY Removal
2. REMOVE TRANSFER CASE REAR OIL SEAL

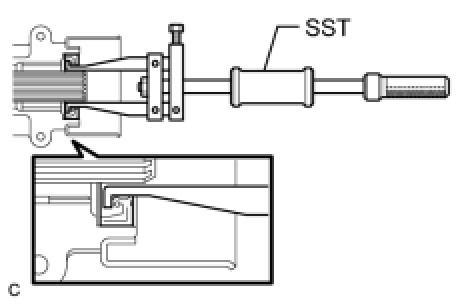

(a) Using SST, remove the transfer case rear oil seal from the transfer extension housing sub-assembly.
SST: 09308-00010
NOTE: Be careful not to damage the oil seal contact surface or the inside surface of the oil seal.

3. INSTALL TRANSFER CASE REAR OIL SEAL

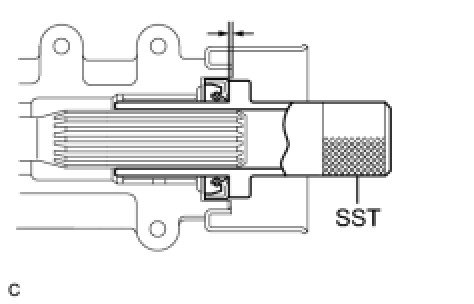

(a) Using SST and a hammer, drive in a new transfer case rear oil seal into the transfer extension housing sub-assembly until it reaches the position shown in the illustration.
SST: 09325-20010
Drive in depth:
1.1 to 1.9 mm (0.0433 to 0.0748 in.)
NOTE: Do not tilt the oil seal during installation.

(b) Apply a small amount of MP grease to the lip of the oil seal.
4. TEMPORARILY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY Installation
5. FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY Installation
6. INSPECT TRANSFER OIL Testing and Inspection
