Installation

MF1A TRANSFER / 4WD / AWD: TRANSFER ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL TRANSFER ASSEMBLY





(a) Install the transfer assembly to the transaxle assembly with the 2 bolts and 6 nuts.
Torque: 69 Nm (700 kgf-cm, 51 ft-lbf)

NOTICE:
- Install the transfer assembly to the transaxle assembly horizontally.
- Do not touch the transfer assembly oil seals during installation.

2. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY Installation
3. INSTALL TRANSFER STIFFENER PLATE RH

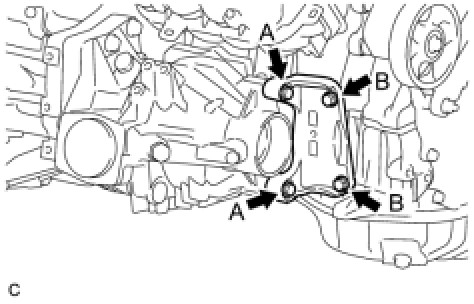

(a) Install the transfer stiffener plate RH with the 4 bolts.
Torque: 34 Nm (347 kgf-cm, 25 ft-lbf)
Bolt length:
Bolt A
45 mm (1.7717 in.)
Bolt B
30 mm (1.1811 in.)
4. INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT Installation
5. INSTALL REAR ENGINE MOUNTING BRACKET Installation
6. CONNECT WIRE HARNESS Installation
7. INSTALL STARTER ASSEMBLY Installation
8. TEMPORARILY TIGHTEN REAR ENGINE MOUNTING INSULATOR Installation
9. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE Installation for 2AZ-FE.
