Navigation System

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: 62-43: CD-ROM Abnormal

DTC 62-43 - CD-ROM Abnormal

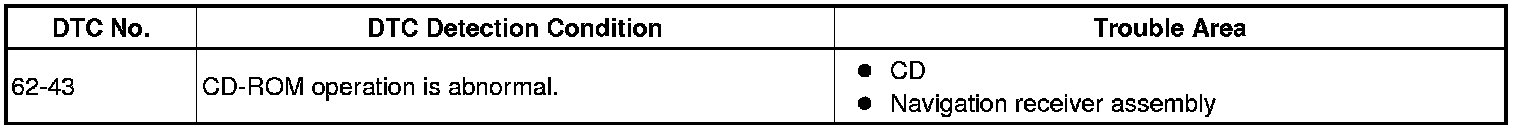

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK IF A PROPER CD IS INSERTED
(a) Make sure that the CD is a audio CD or a CD with an MP3 file, and that it is not deformed, flawed, stained, deteriorated, or otherwise defective.
OK:
The CD is normal.
HINT:
- Translucent or uniquely-shaped CDs cannot be played.

NG -- DISC IS FAULTY
OK -- Continue to next step.
2. REPLACE DISC WITH ANOTHER AND RECHECK
(a) Replace the disc with a known good one and recheck.
(1) Replace the disc with a known good one.
(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(3) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
NG -- REPLACE NAVIGATION RECEIVER ASSEMBLY
OK -- END
