THEFT DETERRENT / KEYLESS ENTRY: TRANSPONDER KEY AMPLIFIER: INSTALLATION

INSTALLATION

1. INSTALL TRANSPONDER KEY AMPLIFIER





(a) Connect the connector to the transponder key amplifier.

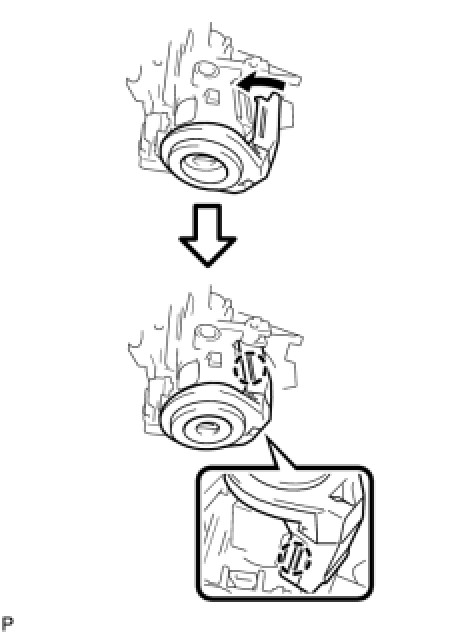

(b) Align the transponder key amplifier with the steering column upper bracket. Tilt the amplifier slightly and slide it into position.
(c) Push the transponder key amplifier, and engage the 2 claws to install the transponder key amplifier to the steering column upper bracket.
2. INSTALL UPPER STEERING COLUMN COVER Installation
3. INSTALL LOWER STEERING COLUMN COVER Installation
4. ADJUST SPIRAL CABLE Installation
5. INSTALL STEERING WHEEL ASSEMBLY Installation
6. INSTALL STEERING PAD Installation
7. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
8. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
9. INSPECT STEERING WHEEL CENTER POINT
10. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
11. INSTALL NO. 1 SWITCH HOLE BASE Installation
12. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle) Installation
13. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle) Installation
14. INSTALL FRONT NO. 1 CONSOLE BOX INSERT Installation
15. INSTALL FRONT NO. 2 CONSOLE BOX INSERT Installation
16. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD) Installation
17. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD) Installation
18. INSTALL CONSOLE BOX CARPET
19. INSTALL NO. 2 SWITCH HOLE BASE Installation
20. INSTALL FRONT UPPER CONSOLE BOX Installation
21. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
22. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Installation
23. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Installation
24. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
25. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation
26. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY Installation
27. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
29. INSPECT SRS WARNING LIGHT Diagnosis System
