NAVIGATION / MULTI INFO DISPLAY: NAVIGATION RECEIVER: INSTALLATION

INSTALLATION

1. INSTALL NAVIGATION RECEIVER ASSEMBLY
2. INSTALL NO. 2 RADIO BRACKET

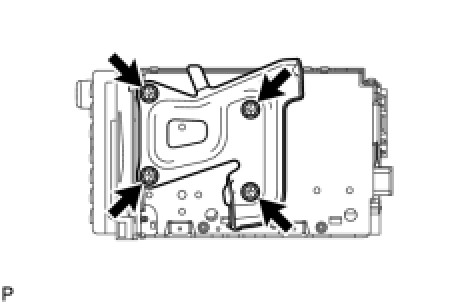

(a) Install the No. 2 radio bracket with the 4 screws.
3. INSTALL NO. 1 RADIO BRACKET





(a) Install the No. 1 radio bracket with the 4 screws.
4. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
(a) Connect each connector.

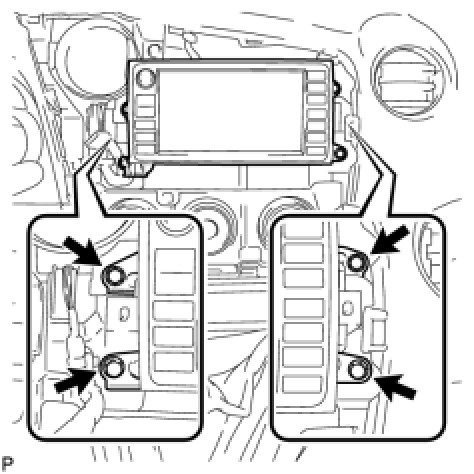

(b) Install the navigation receiver assembly with bracket with the 4 bolts.
5. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
