EXTERIOR PANELS / TRIM: FRONT BUMPER: INSTALLATION

INSTALLATION

1. INSTALL FRONT BUMPER ASSEMBLY (w/o Front Spoiler)
(a) w/ Fog Light:
(1) Connect each fog light connector.

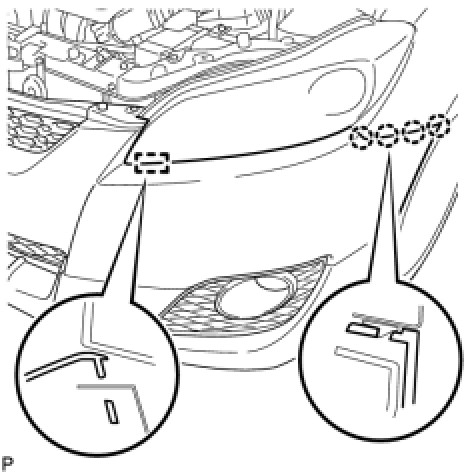

(b) Engage the guide and 4 claws to install the front bumper assembly.
HINT: Use the same procedure for the RH side and LH side.





(c) Install the 3 clips and 2 radiator grille protectors.
(d) for 2ZR-FE:




(1) Install the 2 clips.
(2) Install the 6 screws.
(e) for 2AZ-FE:




(1) Install the 2 clips.
(2) Install the 8 screws.

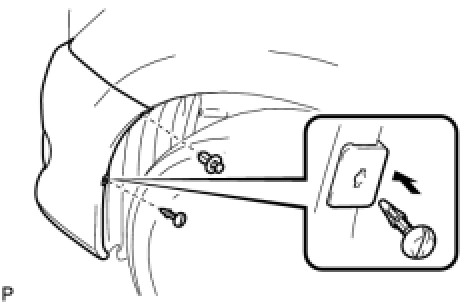

(f) Install the clip and pin hold clip.
HINT: Use the same procedure for the RH side and LH side.

2. INSTALL FRONT BUMPER ASSEMBLY (w/ Front Spoiler)
(a) Connect each fog light connector.

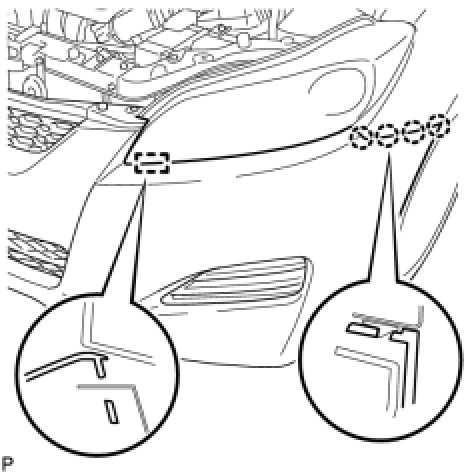

(b) Engage the guide and 4 claws to install the front bumper assembly.
HINT: Use the same procedure for the RH side and LH side.





(c) Install the 3 clips and 2 radiator grille protectors.
(d) for 2ZR-FE:




(1) Install the 2 clips.
(2) Install the 6 screws.
(e) for 2AZ-FE:




(1) Install the 2 clips.
(2) Install the 8 screws.

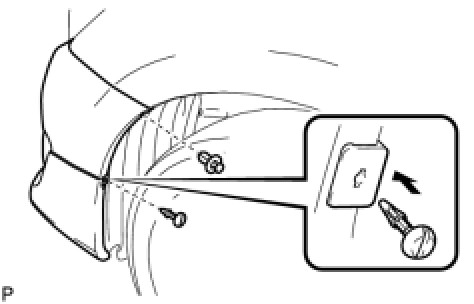

(f) Install the clip and pin hold clip.
HINT: Use the same procedure for the RH side and LH side.

3. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
4. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
5. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments
6. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
