Installation

EXTERIOR PANELS / TRIM: REAR BUMPER: INSTALLATION

INSTALLATION

1. INSTALL REAR BUMPER ASSEMBLY

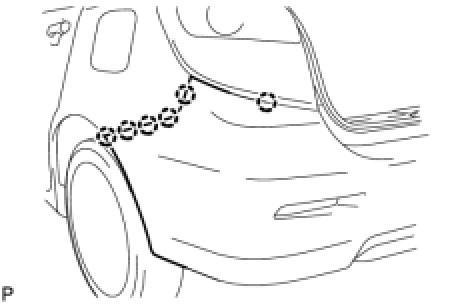

(a) Engage the 6 claws to install the rear bumper assembly.
HINT: Use the same procedure for the RH side and LH side.

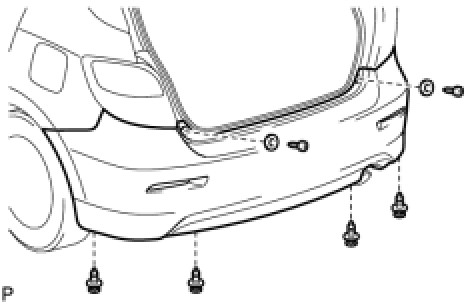

(b) Install the 4 clips and 2 rear bumper upper stoppers.

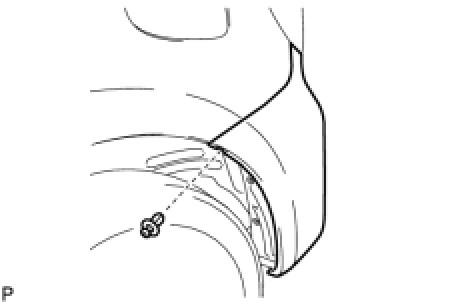

(c) Install the clip.
HINT: Use the same procedure for the RH side and LH side.
