Removal

DOOR / HATCH: FUEL LID LOCK CONTROL CABLE ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY
3. REMOVE OUTER SEAT TRACK COVER Removal
4. REMOVE INNER SEAT TRACK COVER Removal
5. REMOVE FRONT SEAT ASSEMBLY Removal
6. REMOVE FRONT DOOR SCUFF PLATE LH Removal
7. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal
8. REMOVE REAR DOOR SCUFF PLATE LH Removal
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH Removal
10. REMOVE LAP BELT OUTER ANCHOR COVER Removal
11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH Removal
12. REMOVE LOWER CENTER PILLAR GARNISH LH Removal
13. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
14. REMOVE REAR SEAT HEADREST ASSEMBLY
15. REMOVE REAR SEATBACK OUTER HINGE COVER Removal
16. REMOVE REAR SEATBACK INNER HINGE COVER Removal
17. REMOVE REAR SEATBACK ASSEMBLY LH Removal
18. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
19. REMOVE DECK BOARD ASSEMBLY Removal
20. REMOVE NO. 2 DECK BOARD Removal
21. REMOVE JACK CARRIER ASSEMBLY
22. REMOVE JACK ASSEMBLY Removal
23. REMOVE DECK FLOOR BOX LH Removal
24. REMOVE DECK FLOOR BOX RH Removal
25. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR Removal
26. REMOVE LUGGAGE COMPARTMENT TRAY Removal
27. REMOVE REAR DECK TRIM COVER Removal
28. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY Removal
29. REMOVE REAR SEAT SIDE GARNISH LH Removal
30. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH Removal
31. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY Removal
32. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal
33. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH Removal
34. REMOVE SIDE DECK TRIM PANEL ASSEMBLY LH Removal

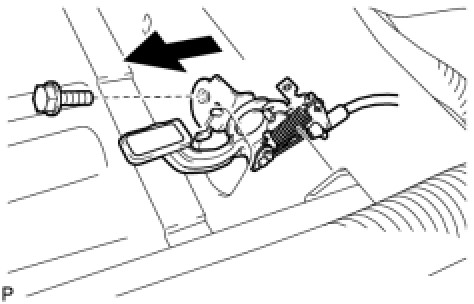

35. DISCONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY





(a) Remove the bolt.
(b) Disconnect the fuel lid lock open lever sub-assembly as shown in the illustration.
36. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

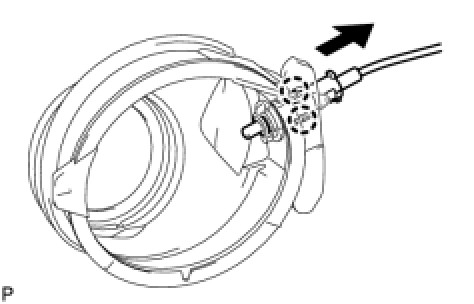

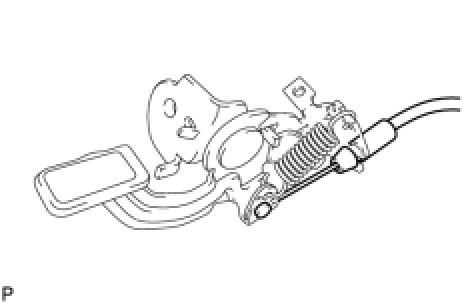

(a) Disconnect the fuel lid lock control cable sub-assembly as shown in the illustration.





(b) Disengage the 2 claws and disconnect the fuel lid lock control cable sub-assembly as shown in the illustration.

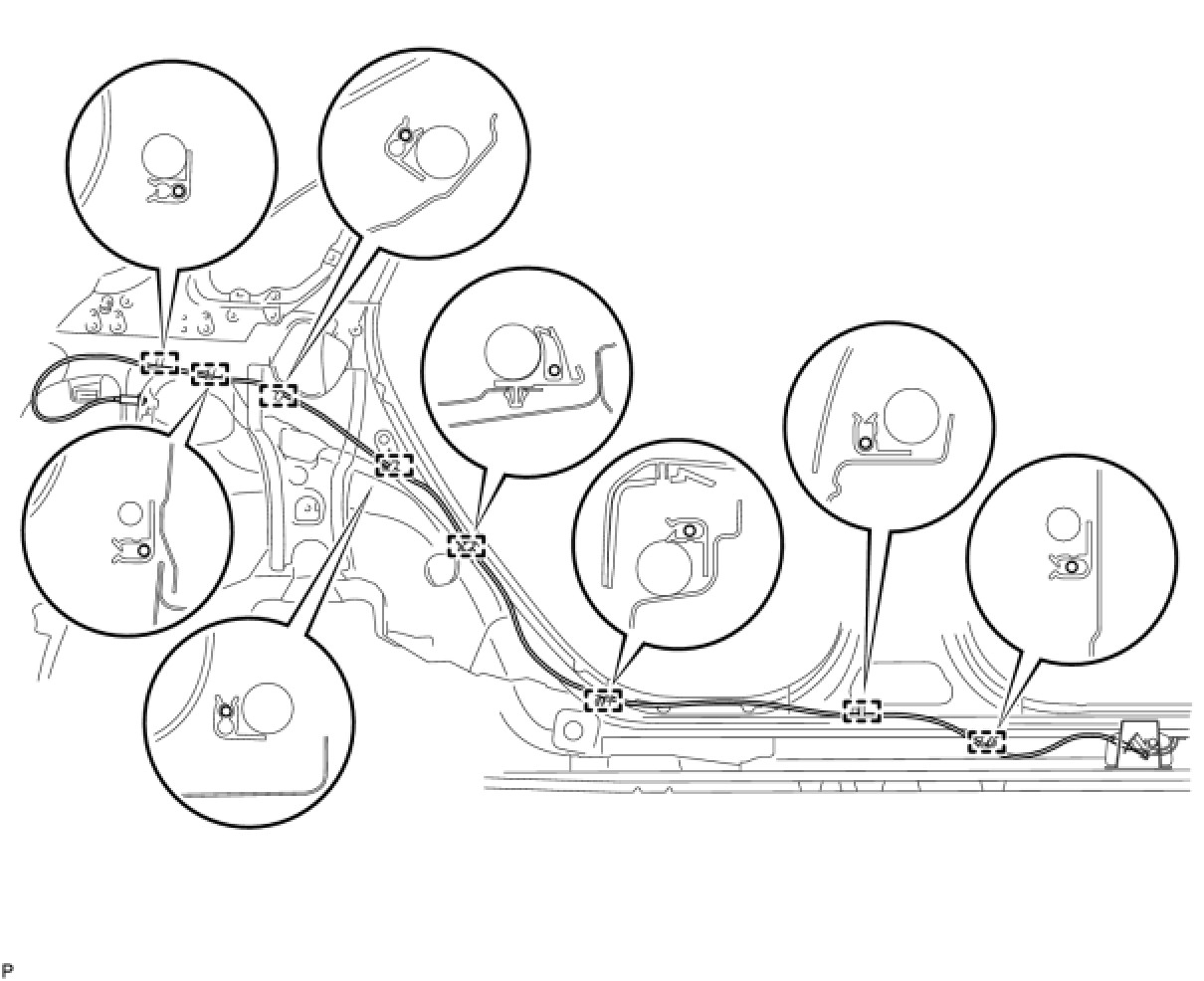

(c) Disengage the 8 clamps and remove the fuel lid lock control cable sub-assembly.
