Installation

EXTERIOR PANELS / TRIM: NAME PLATE: INSTALLATION

INSTALLATION
HINT: When installing new name plates or emblems, heat the vehicle body, name plates or emblems using a heat light.

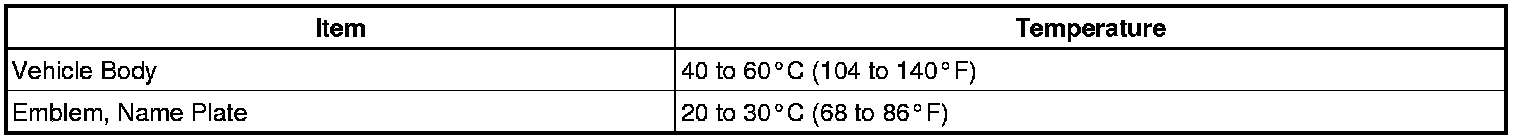

Heating Temperature:





NOTE: Do not heat the vehicle body, name plates or emblems excessively.

1. INSTALL SYMBOL EMBLEM
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install a new emblem.
(1) Using a heat light, heat the vehicle body and a new emblem.
(2) Remove the release paper from the emblem.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.

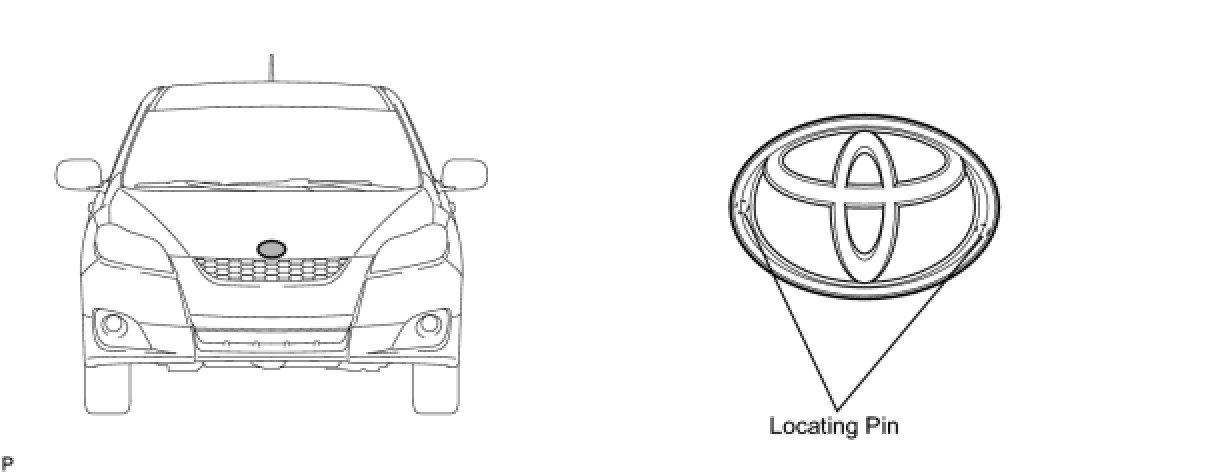

(3) Install the emblem as shown in the illustration.





2. INSTALL SYMBOL EMBLEM
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install a new emblem.
(1) Using a heat light, heat the vehicle body and a new emblem.
(2) Remove the release paper from the emblem.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.

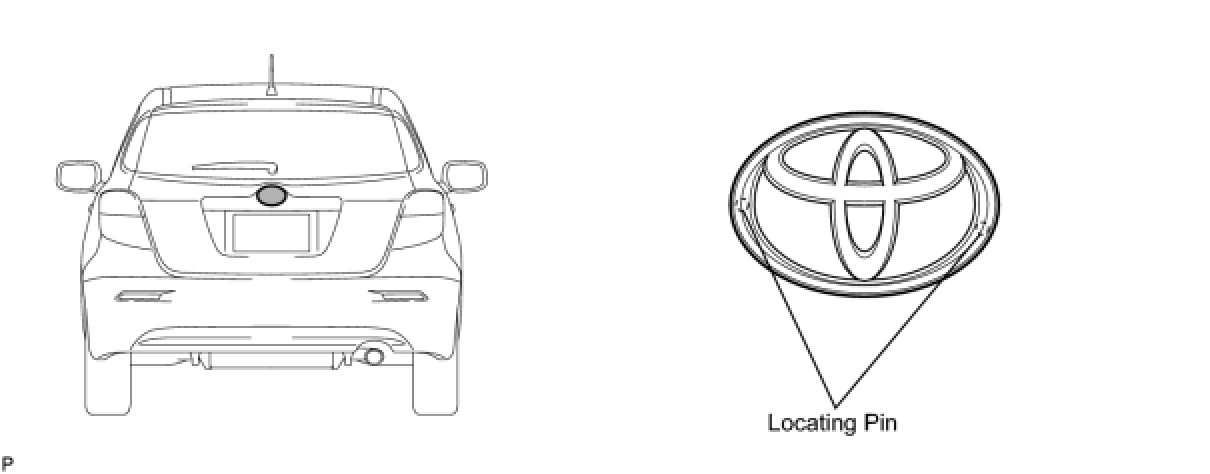

(3) Install the emblem as shown in the illustration.





3. INSTALL NO. 7 LUGGAGE COMPARTMENT DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install a new name plate.
(1) Using a heat light, heat the vehicle body and a new name plate.
(2) Remove the release paper from the name plate.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.

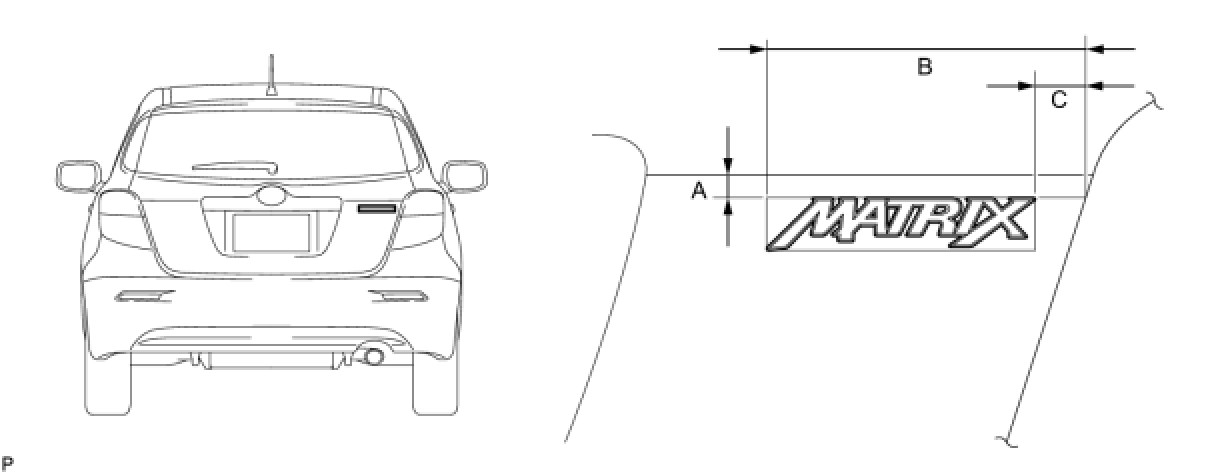

(3) Install the name plate as shown in the illustration.

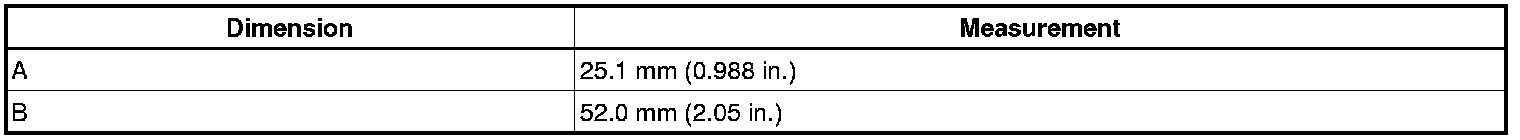

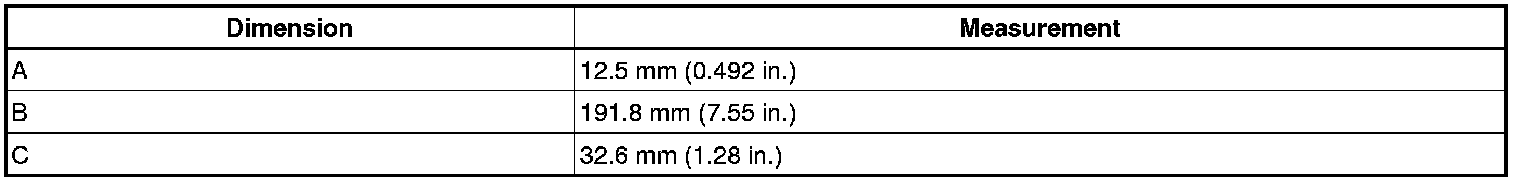

Standard Measurement:

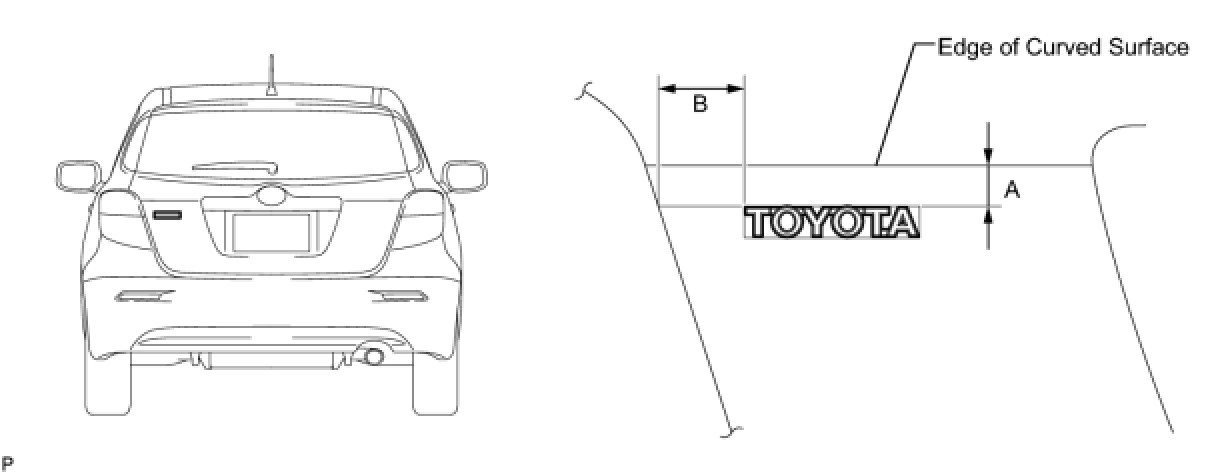

4. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install a new name plate.
(1) Using a heat light, heat the vehicle body and a new name plate.
(2) Remove the release paper from the name plate.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.
(3) Install the name plate as shown in the illustration.

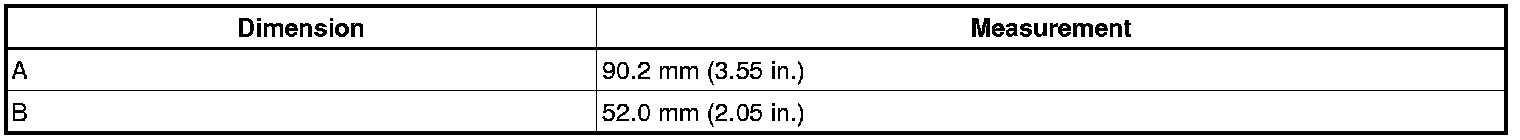

Standard Measurement:






5. INSTALL NO. 1 BACK DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install a new name plate.
(1) Using a heat light, heat the vehicle body and a new name plate.
(2) Remove the release paper from the name plate.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.
(3) Install the name plate as shown in the illustration.

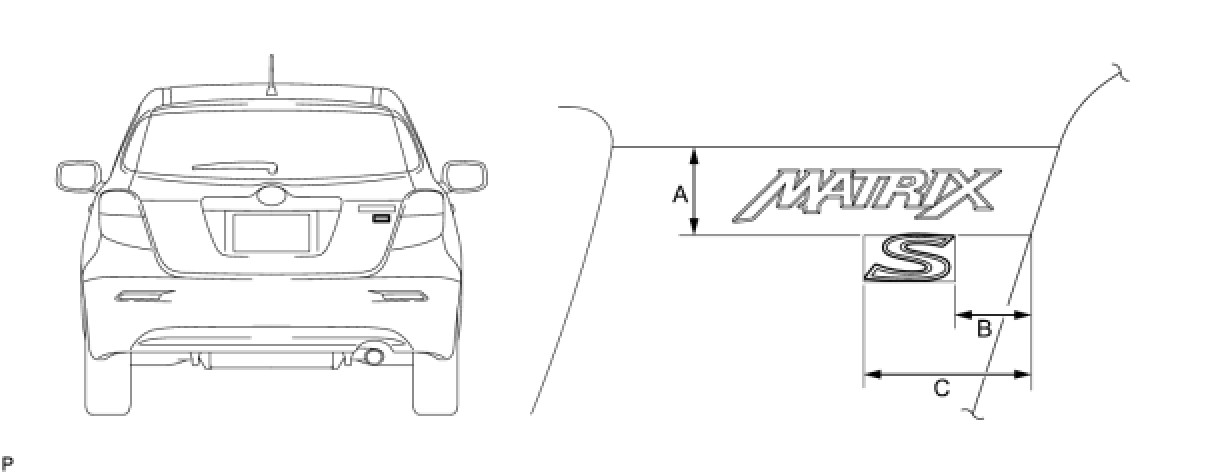

for S plate:

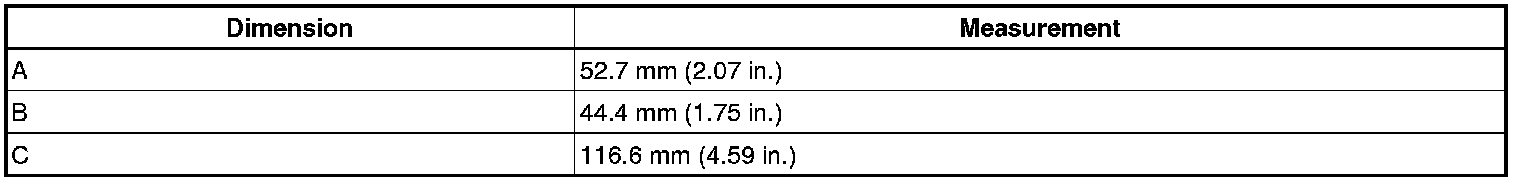

Standard Measurement:

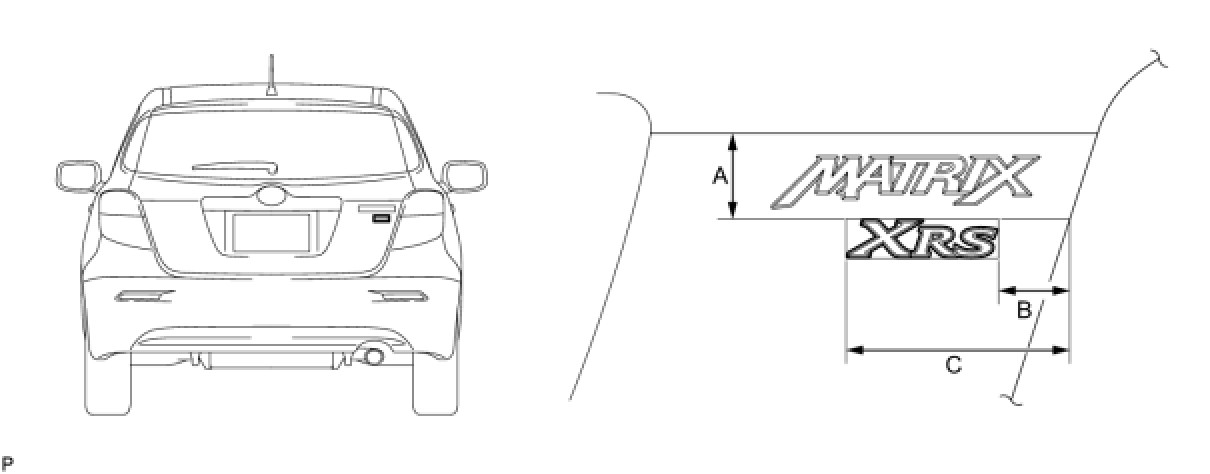

for XRS plate:

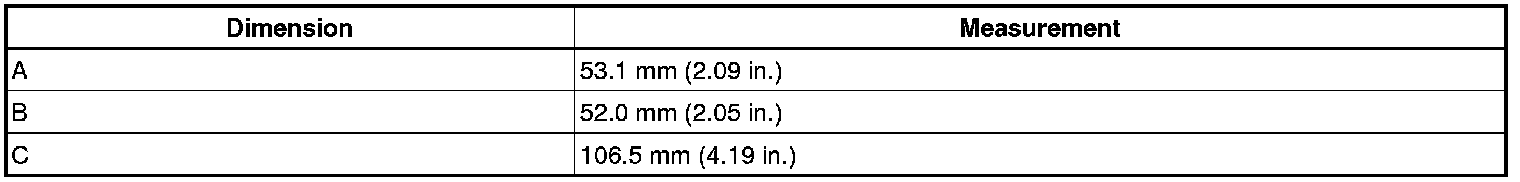

Standard Measurement:

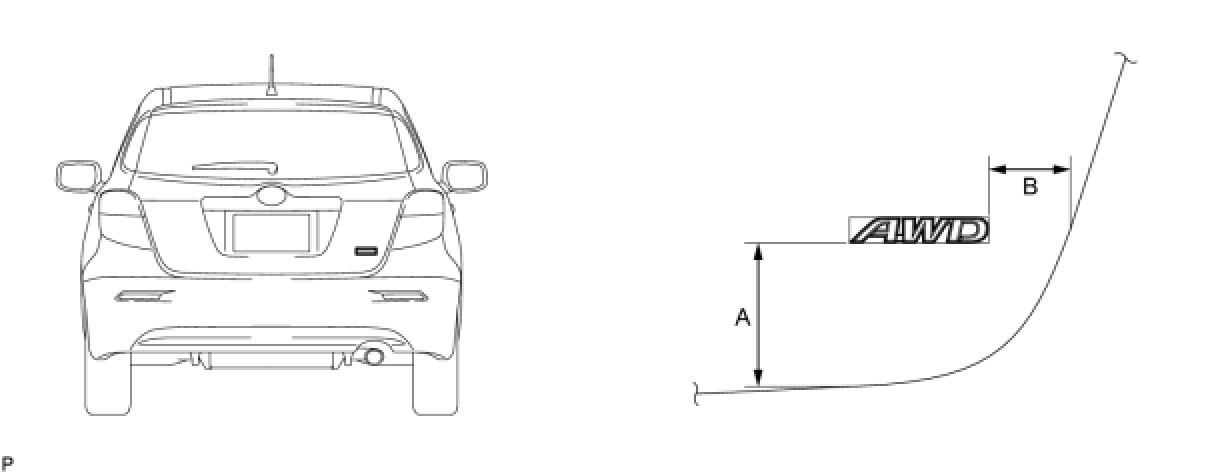

6. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install a new name plate.
(1) Using a heat light, heat the vehicle body and a new name plate.
(2) Remove the release paper from the name plate.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.
(3) Install the name plate as shown in the illustration.





Standard Measurement:
