EXTERIOR PANELS / TRIM: NAME PLATE: REMOVAL

REMOVAL
HINT: When removing the name plates and emblems, heat the vehicle body, name plates and emblems using a heat light.

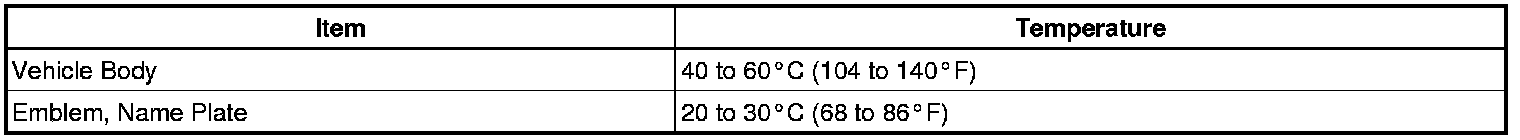

Heating Temperature:





NOTE: Do not heat the vehicle body, name plates or emblems excessively.

1. REMOVE SYMBOL EMBLEM

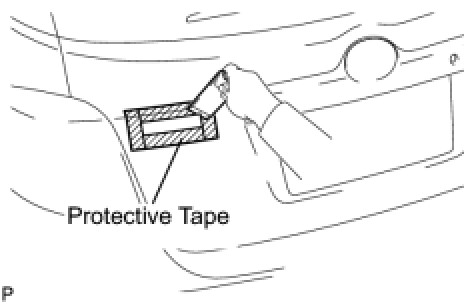

(a) Put protective tape around the emblem.
(b) Using a moulding remover, peel off the double-sided tape to remove the emblem.
NOTE: Be careful not to damage the vehicle body.

2. REMOVE SYMBOL EMBLEM

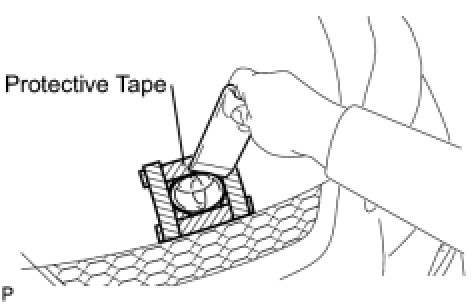

(a) Put protective tape around the emblem.
(b) Using a moulding remover, peel off the double-sided tape to remove the emblem.
NOTE: Be careful not to damage the vehicle body.

3. REMOVE NO. 7 LUGGAGE COMPARTMENT DOOR NAME PLATE

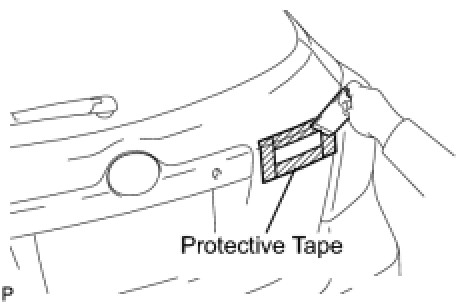

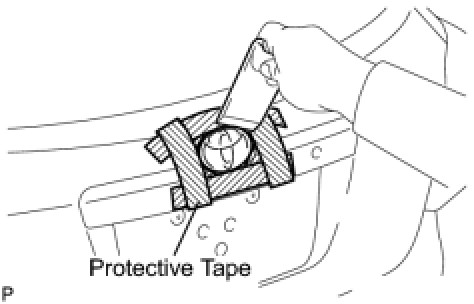

(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape to remove the name plate.
NOTE: Be careful not to damage the vehicle body.

4. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

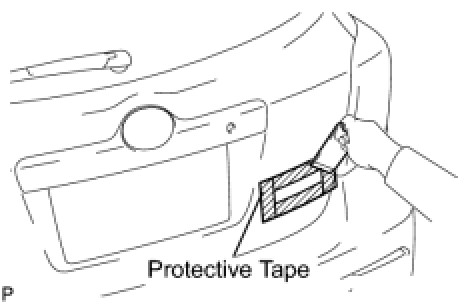

(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape to remove the name plate.
NOTE: Be careful not to damage the vehicle body.

5. REMOVE NO. 1 BACK DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape to remove the name plate.
NOTE: Be careful not to damage the vehicle body.

6. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the name plate.
(b) Using a moulding remover, peel off the double-sided tape to remove the name plate.
NOTE: Be careful not to damage the vehicle body.
