Power Locks: Description and Operation

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM:

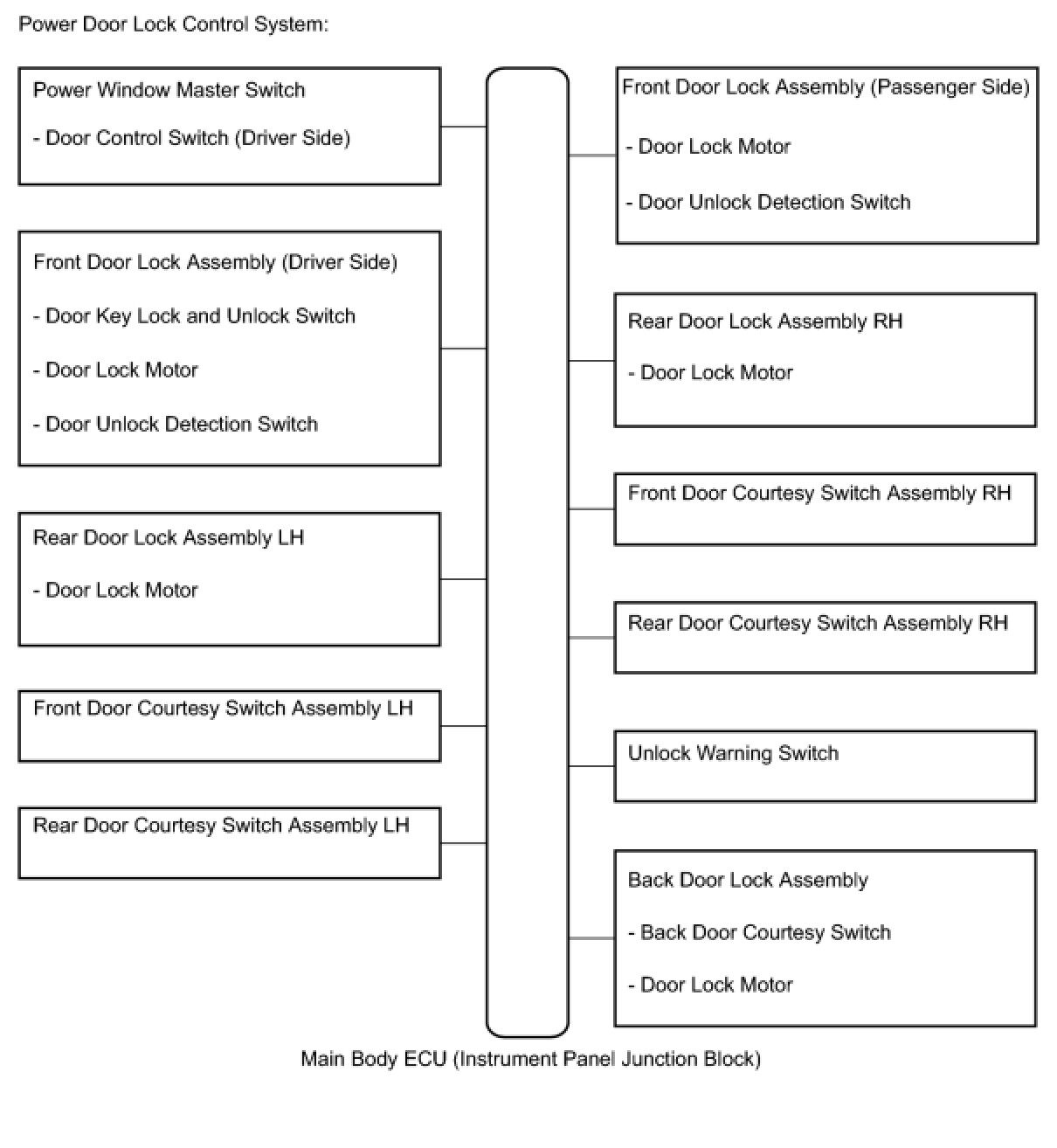

SYSTEM DIAGRAM





SYSTEM DESCRIPTION

1. POWER DOOR LOCK CONTROL SYSTEM DESCRIPTION
(a) The power door lock system locks/unlocks all the doors.
The master switch and the door control switch on the front passenger door send "lock/unlock" request signals to the main body ECU (instrument panel junction block). Then, the main body ECU (instrument panel junction block) sends these request signals to the lock motors in each door to lock/unlock all the doors at once in response to the inputs.
Operating the driver door lock using a mechanical key sends request signals to lock or unlock the doors to the main body ECU (instrument panel junction block).

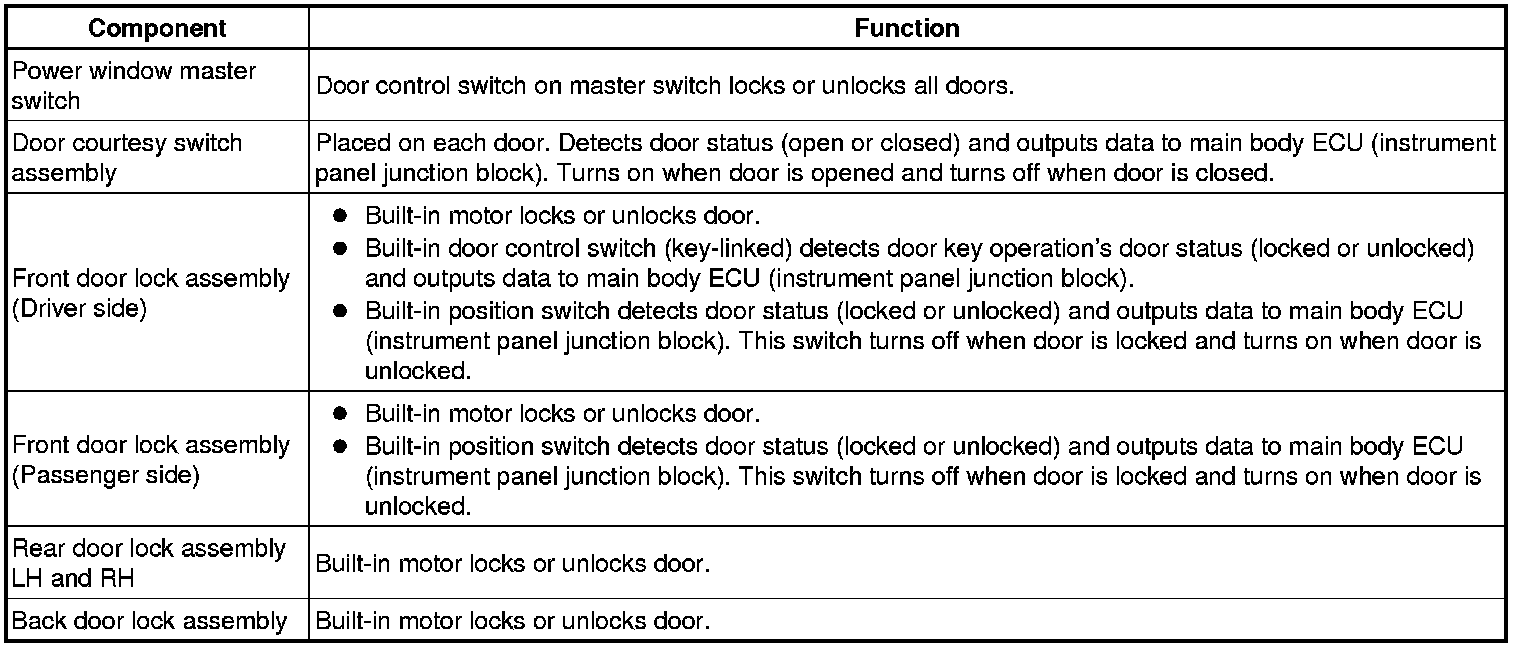

2. FUNCTION OF MAIN COMPONENTS

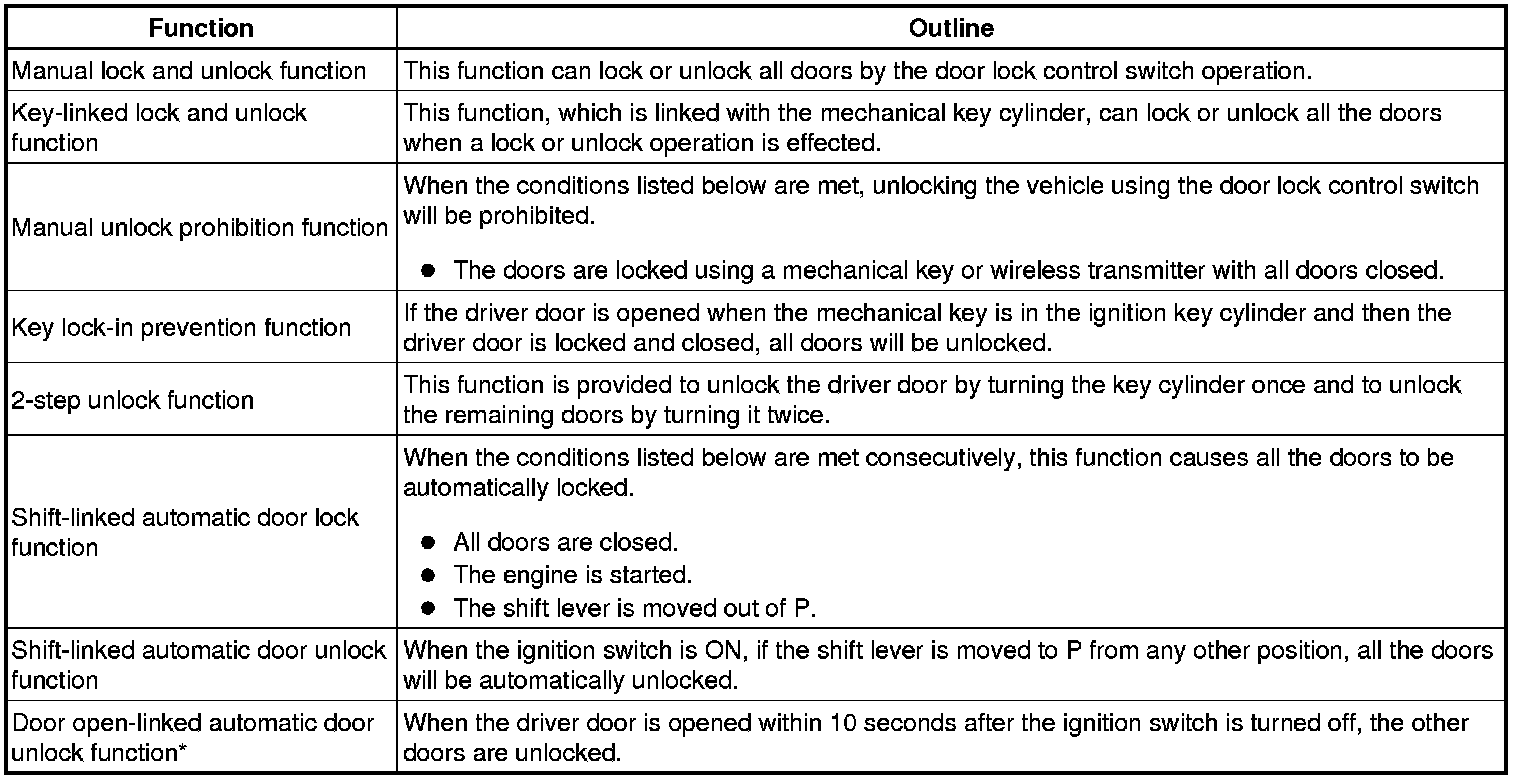

3. SYSTEM FUNCTION
(a) This system is controlled by the main body ECU (instrument panel junction block). The main body ECU (instrument panel junction block) outputs signals to each door lock motor. The door lock control system of the vehicle has the following functions:





*: This function is set through the customize function, as it is off by default.
