Installation

EXTERIOR PANELS / TRIM: ROOF RACK: INSTALLATION

INSTALLATION

1. INSTALL ROOF RACK ASSEMBLY





(a) Install 2 new gaskets.





(b) Install the roof rack assembly with 4 new bolts.
Torque: 32 Nm (326 kgf-cm, 24 ft-lbf)

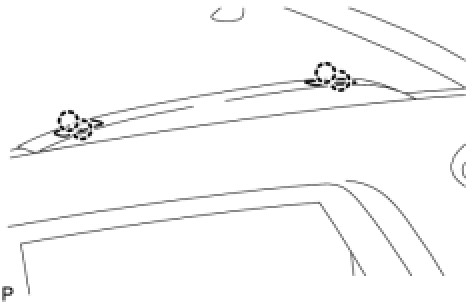

2. INSTALL ROOF RACK COVER





(a) Engage the 2 claws to install the roof rack cover.
HINT: Use the same procedure for the rear side and front side.
