Removal

EXTERIOR PANELS / TRIM: ROOF RACK: REMOVAL

REMOVAL

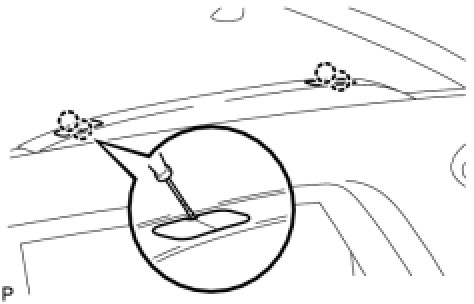

1. REMOVE ROOF RACK COVER





(a) Using a screwdriver, disengage the 2 claws and remove the roof rack cover.
NOTE: Tape the screwdriver tip before use.
HINT: Use the same procedure for the rear side and front side.

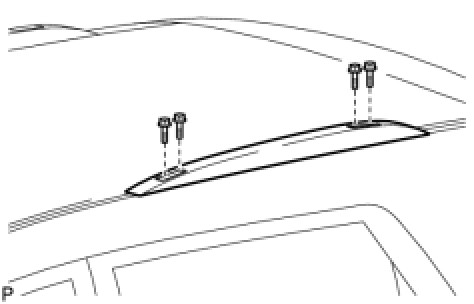

2. REMOVE ROOF RACK ASSEMBLY





(a) Remove the 4 bolts and roof rack assembly.

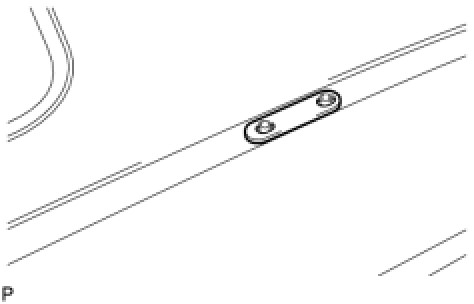

(b) Remove the 2 gaskets.
