Sunroof / Moonroof: Description and Operation

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM:

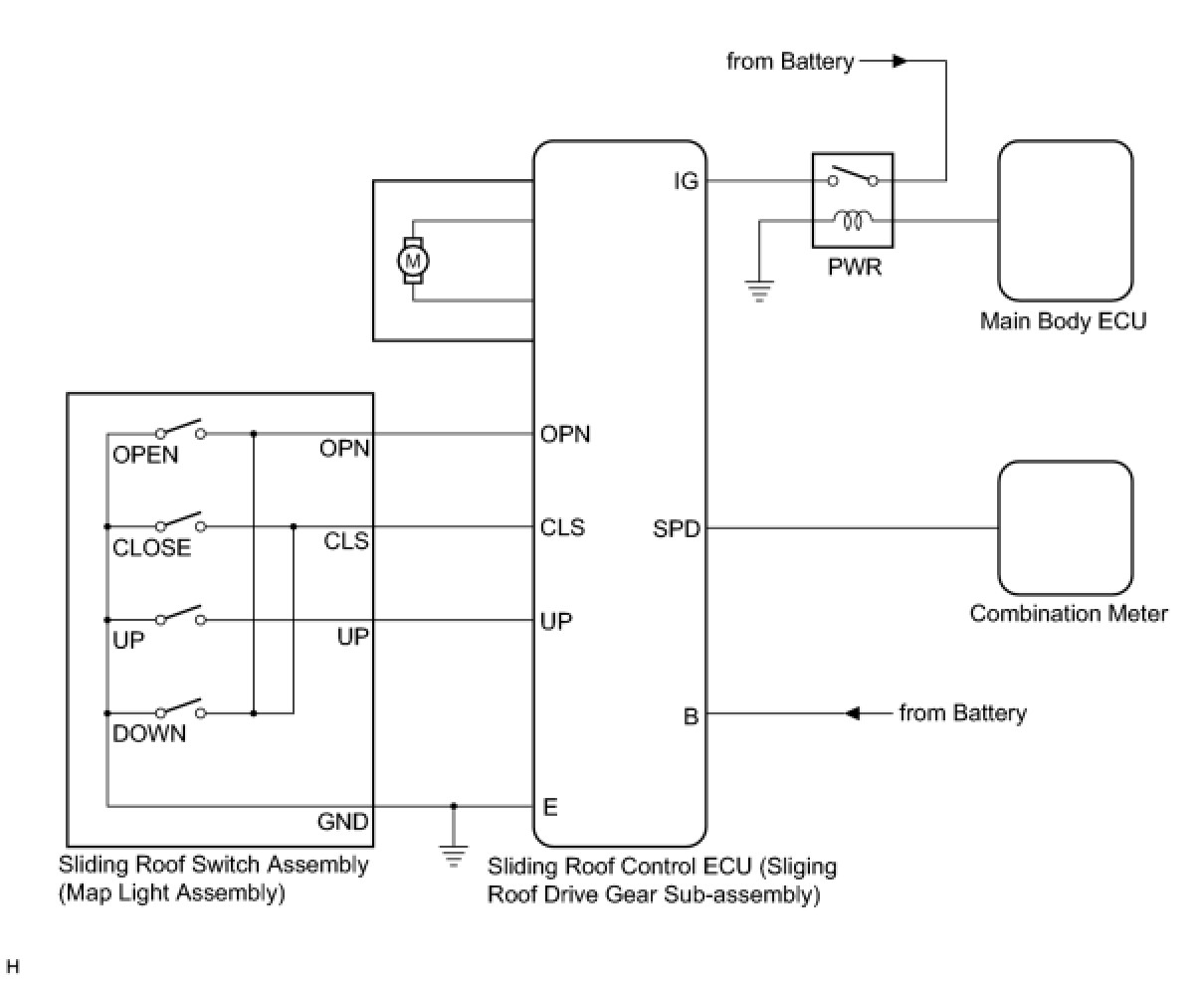

SYSTEM DIAGRAM





SYSTEM DESCRIPTION

1. GENERAL
This system has the following functions: manual slide open and close, auto slide open and close, manual tilt up and down, auto tilt up and down, jam protection, and key off operation.

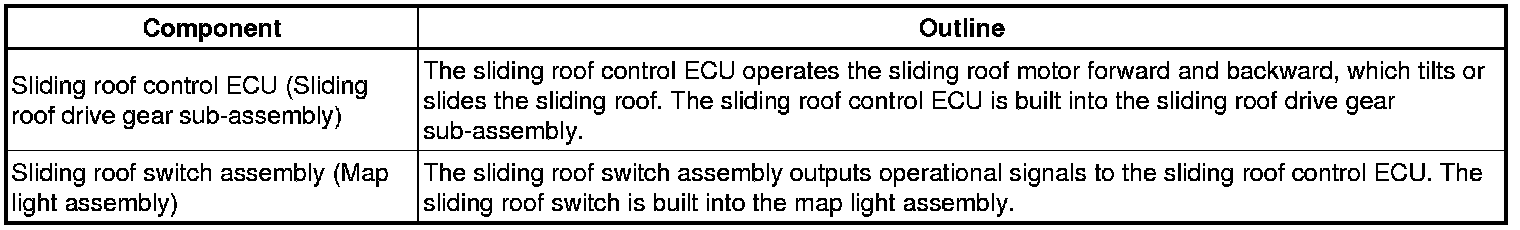

2. FUNCTION OF MAIN COMPONENTS






3. SYSTEM OPERATION
The sliding roof has the following features.
