Reassembly

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF HOUSING: REASSEMBLY

REASSEMBLY

1. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

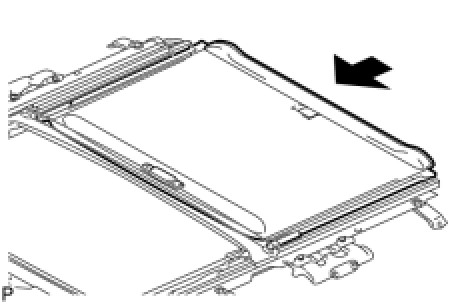

(a) Insert the sunshade trim into the sliding roof housing sub-assembly.

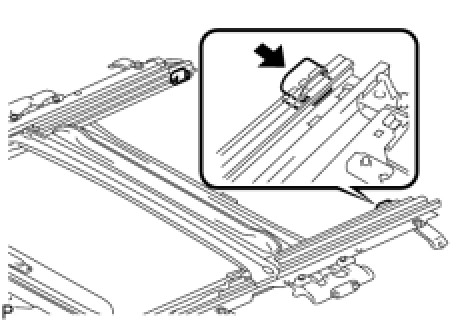

(b) Install the sunshade trim stopper.
HINT: Use the same procedure for the RH side and the LH side.

2. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY





(a) Using a T25 "TORX" socket wrench, install the sliding roof drive gear sub-assembly with the 3 screws.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
