Components








SEAT: FRONT SEAT ASSEMBLY (w/o Seatback Board): COMPONENTS

COMPONENTS

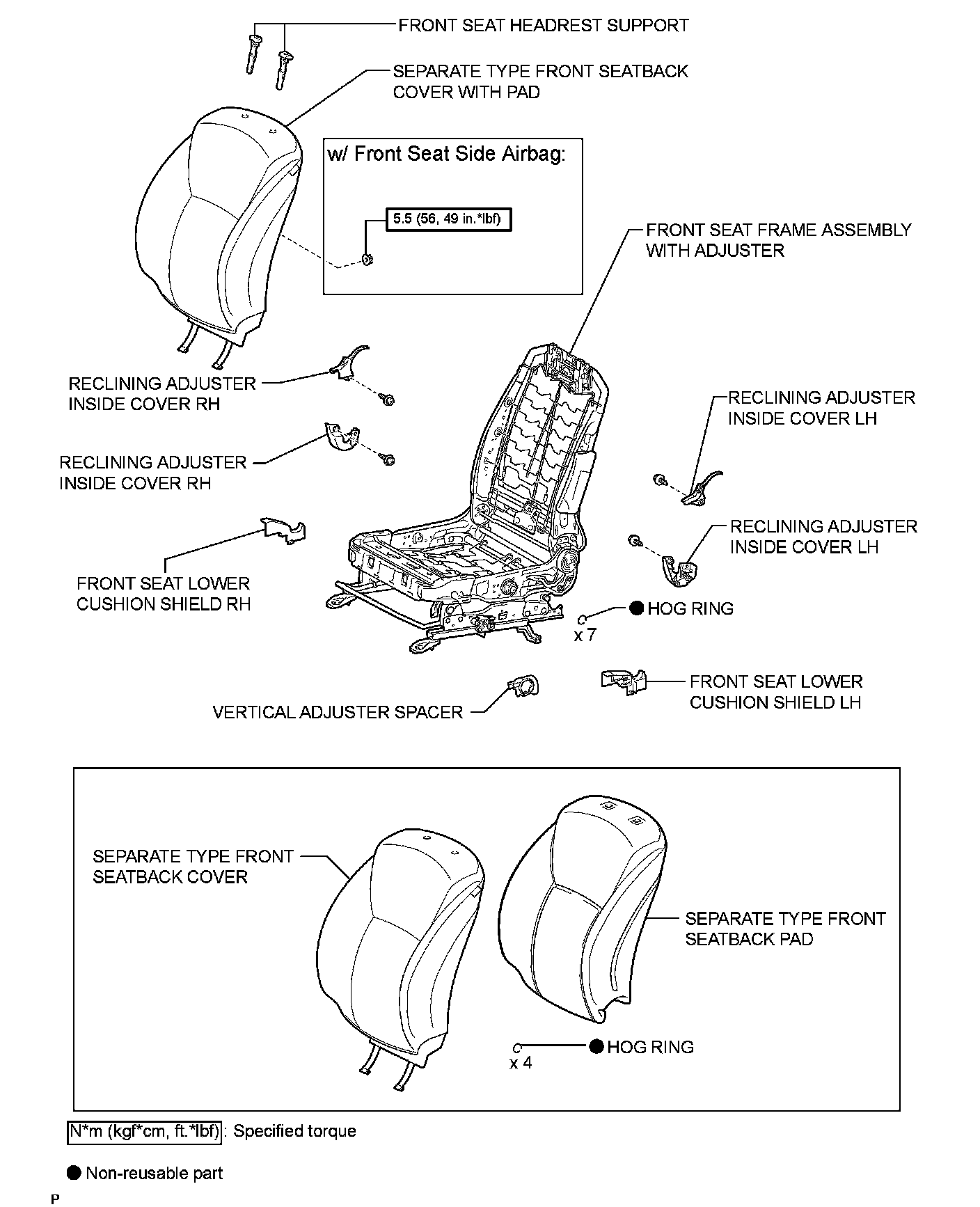

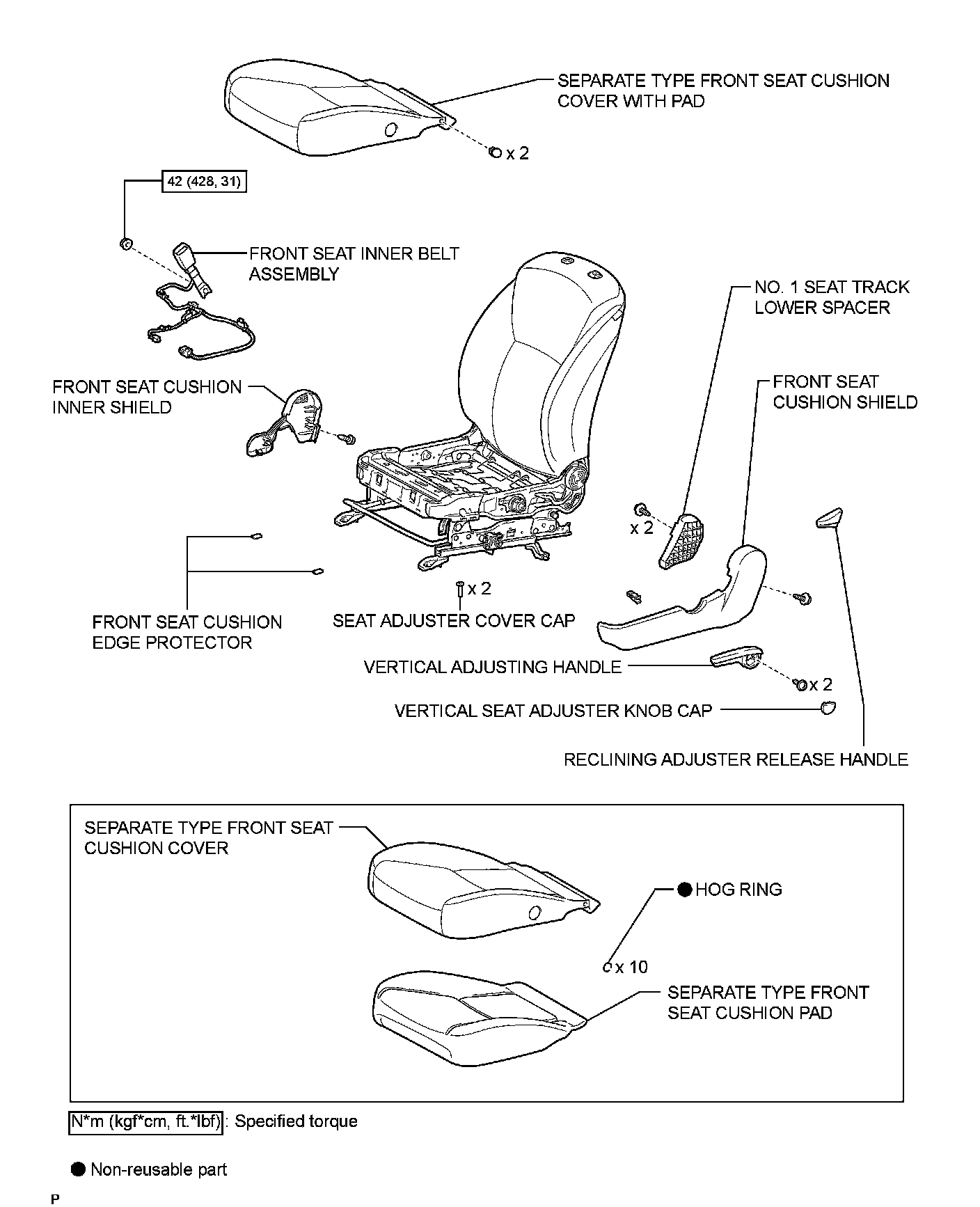

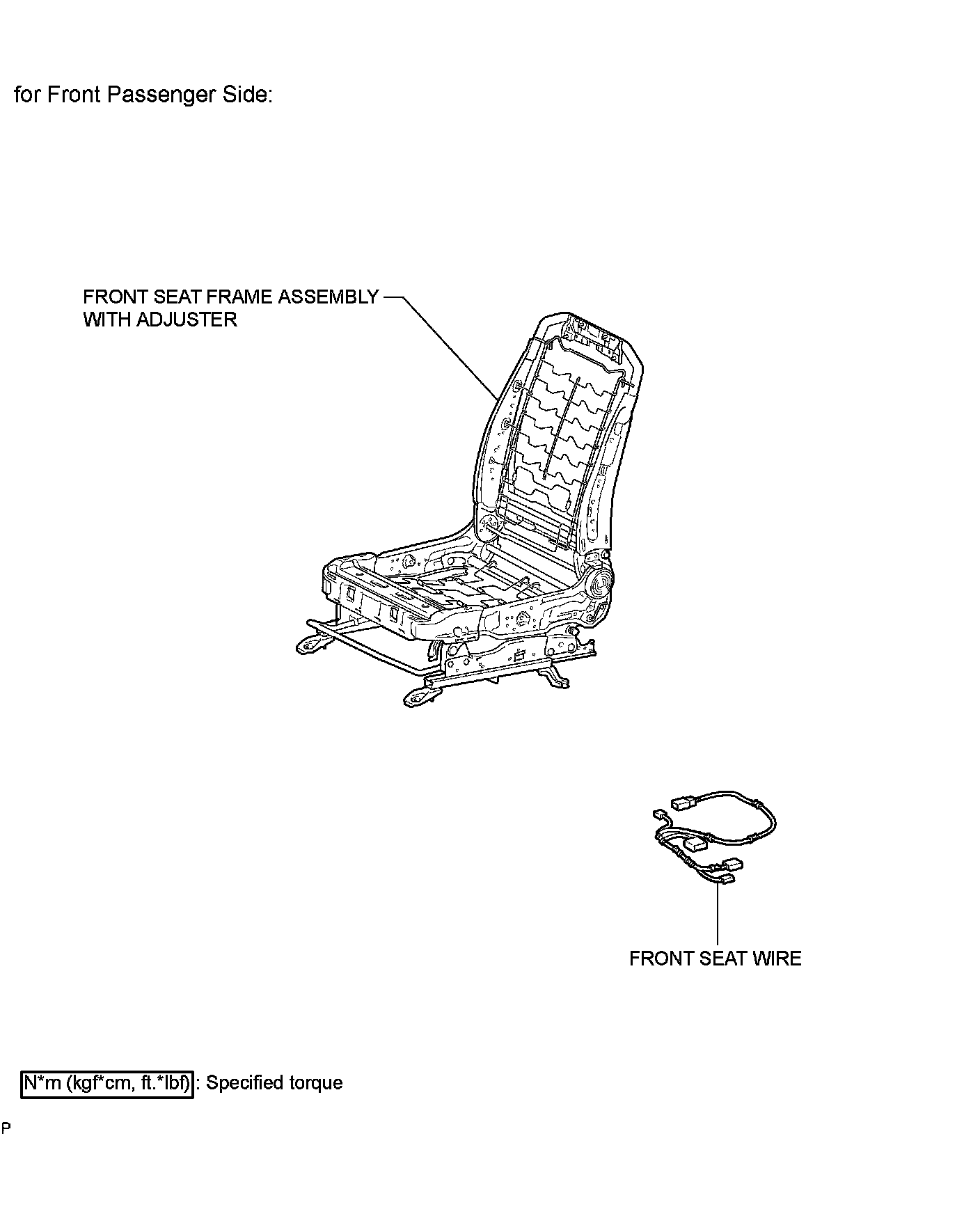

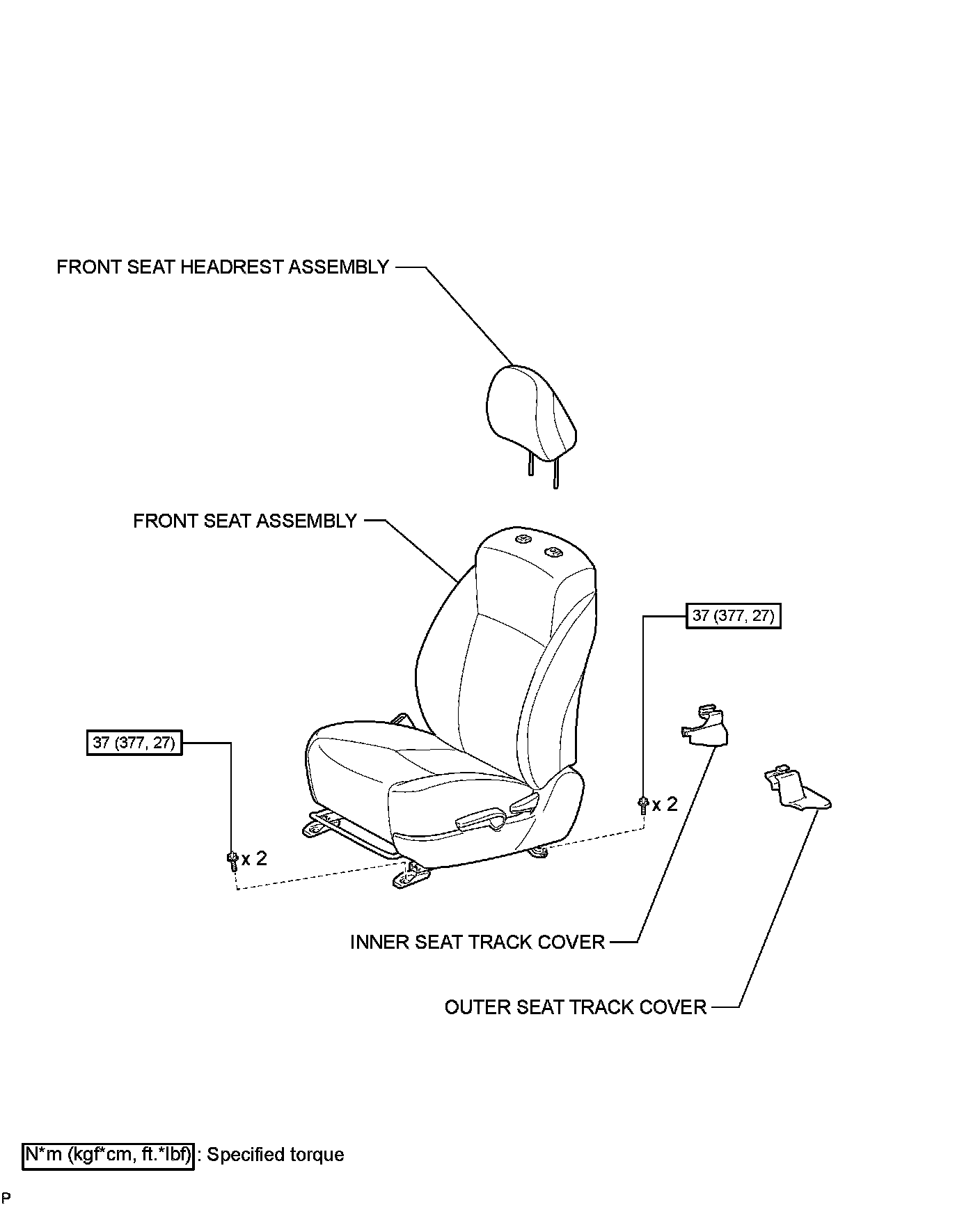

ILLUSTRATION
