Removal

DOOR LOCK: UNLOCK WARNING SWITCH: REMOVAL

REMOVAL
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the steering column assembly Service Precautions.

1. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal
4. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal
5. REMOVE STEERING PAD Removal
6. REMOVE STEERING WHEEL ASSEMBLY Removal
7. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
HINT: Refer to the instructions for Removal of the upper instrument panel Removal.

8. REMOVE FRONT CONSOLE BOX ASSEMBLY
HINT: Refer to the instructions for Removal of the front console box Removal.

9. REMOVE FRONT NO. 1 CONSOLE BOX INSERT Removal
10. REMOVE FRONT NO. 2 CONSOLE BOX INSERT Removal
11. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle) Removal
12. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle) Removal
13. REMOVE NO. 1 SWITCH HOLE BASE Removal
14. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
15. REMOVE LOWER STEERING COLUMN COVER Removal
16. REMOVE UPPER STEERING COLUMN COVER Removal
17. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY Removal
18. REMOVE COLUMN HOLE COVER SILENCER SHEET Removal
19. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 2WD) Removal
20. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD) Removal
21. REMOVE INSTRUMENT PANEL SUB REINFORCEMENT Removal
22. REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY Removal
23. REMOVE TRANSPONDER KEY AMPLIFIER (w/ Engine Immobiliser System) Removal
24. REMOVE STOP LIGHT SWITCH ASSEMBLY Removal
25. REMOVE STEERING POST ASSEMBLY Removal
26. REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY Disassembly
27. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (for Manual Transaxle) Disassembly
28. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (for Automatic Transaxle) Disassembly
29. REMOVE KEY INTERLOCK SOLENOID (for Automatic Transaxle) Disassembly
30. REMOVE SOLENOID WIRE (for Automatic Transaxle) Disassembly
31. REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY Disassembly
32. REMOVE UNLOCK WARNING SWITCH ASSEMBLY

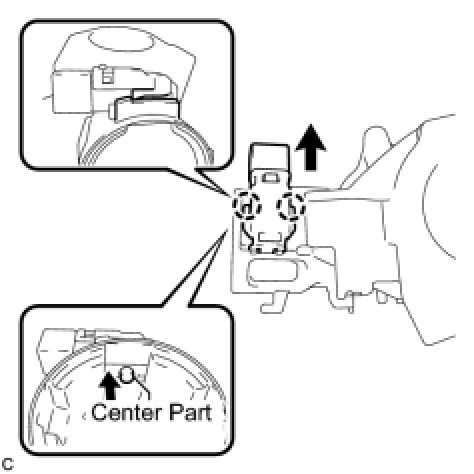

(a) Remove the unlock warning switch assembly by pushing up the center part and releasing the 2 claws.
HINT: Slide the unlock warning switch in the direction shown by the arrow in the illustration to remove it.
