ABS [w/ VSC], TRAC, VSC

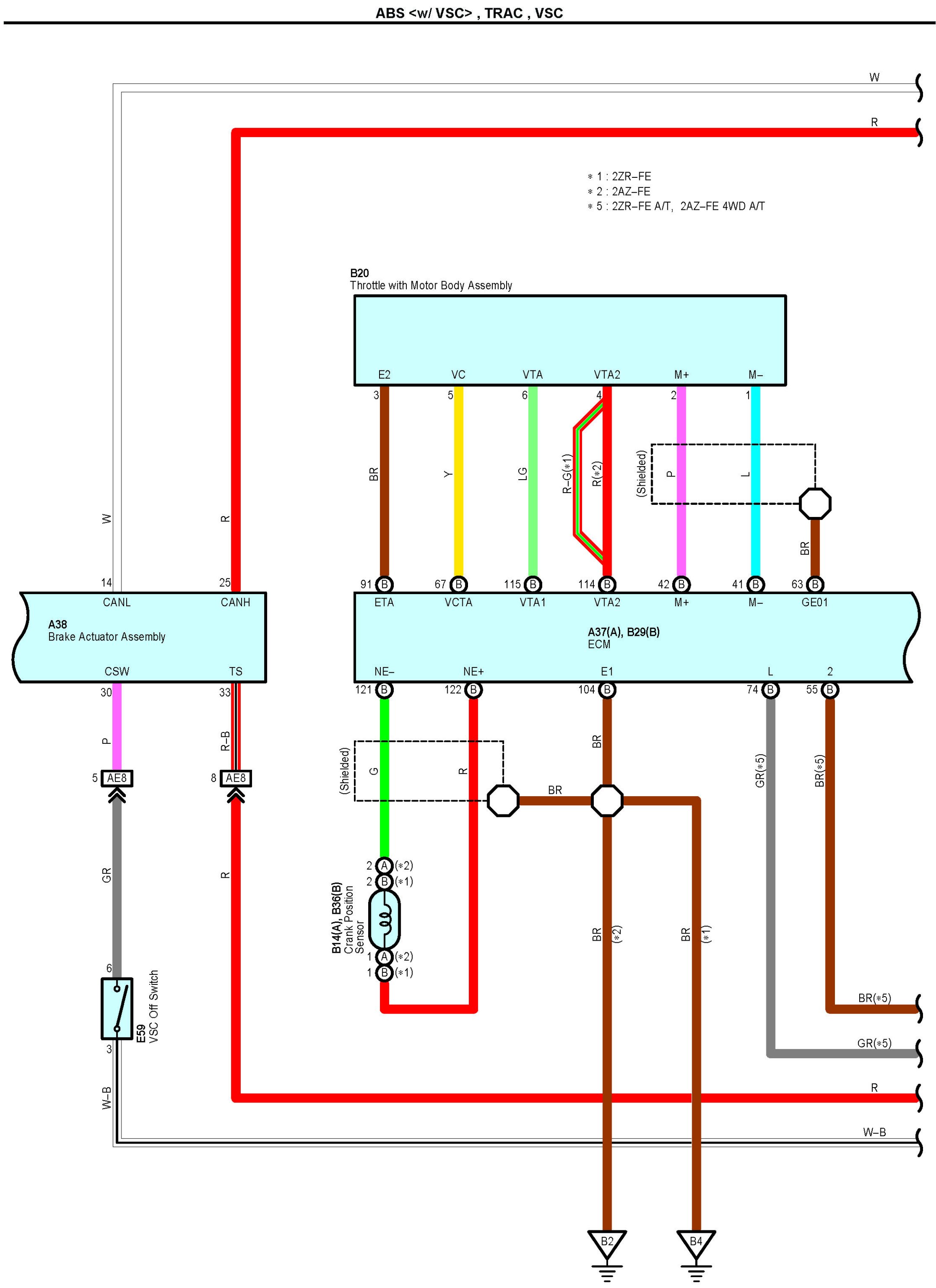

ABS [w/ VSC], TRAC, VSC Part 1:

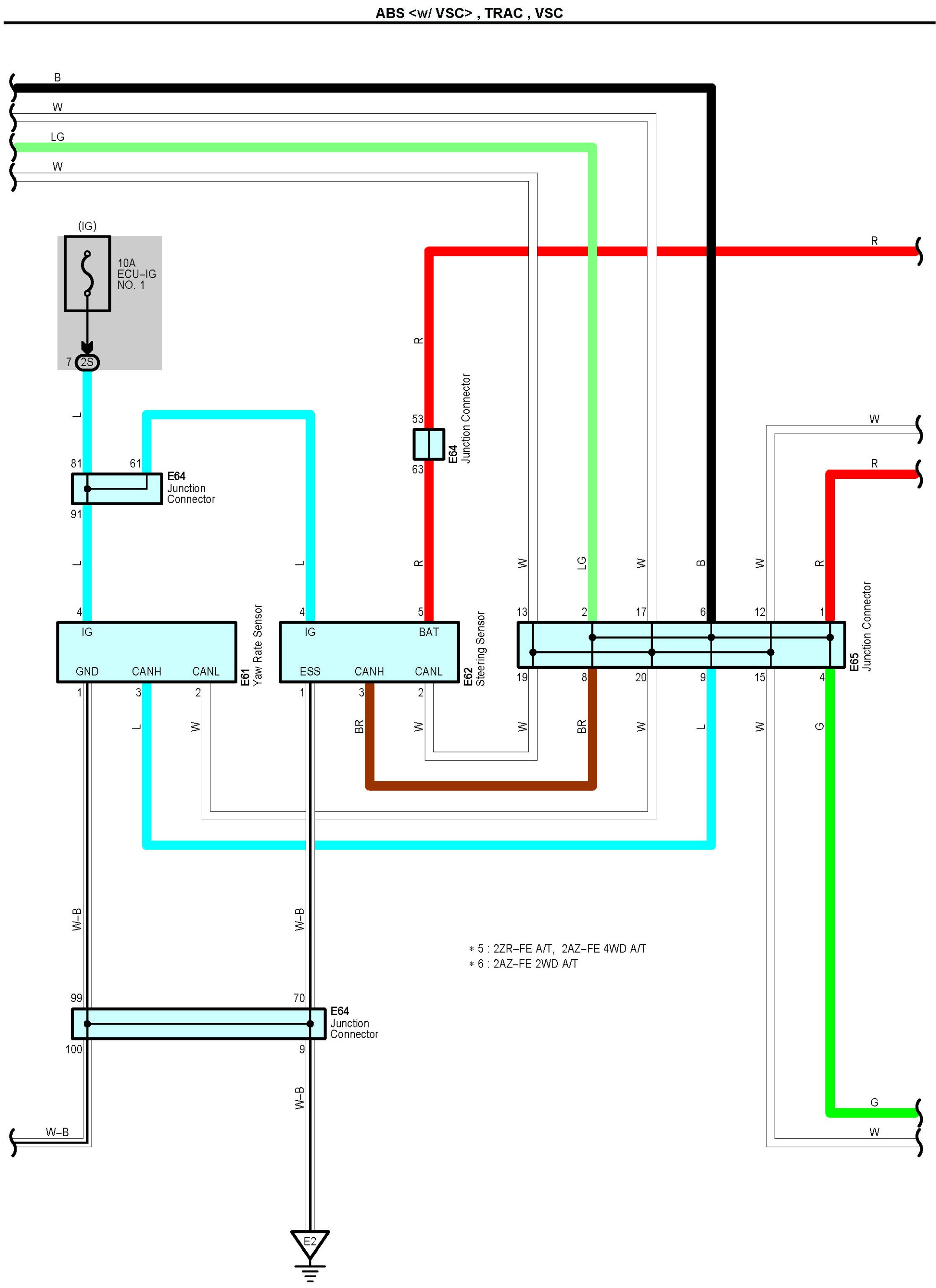

ABS [w/ VSC], TRAC, VSC Part 2:

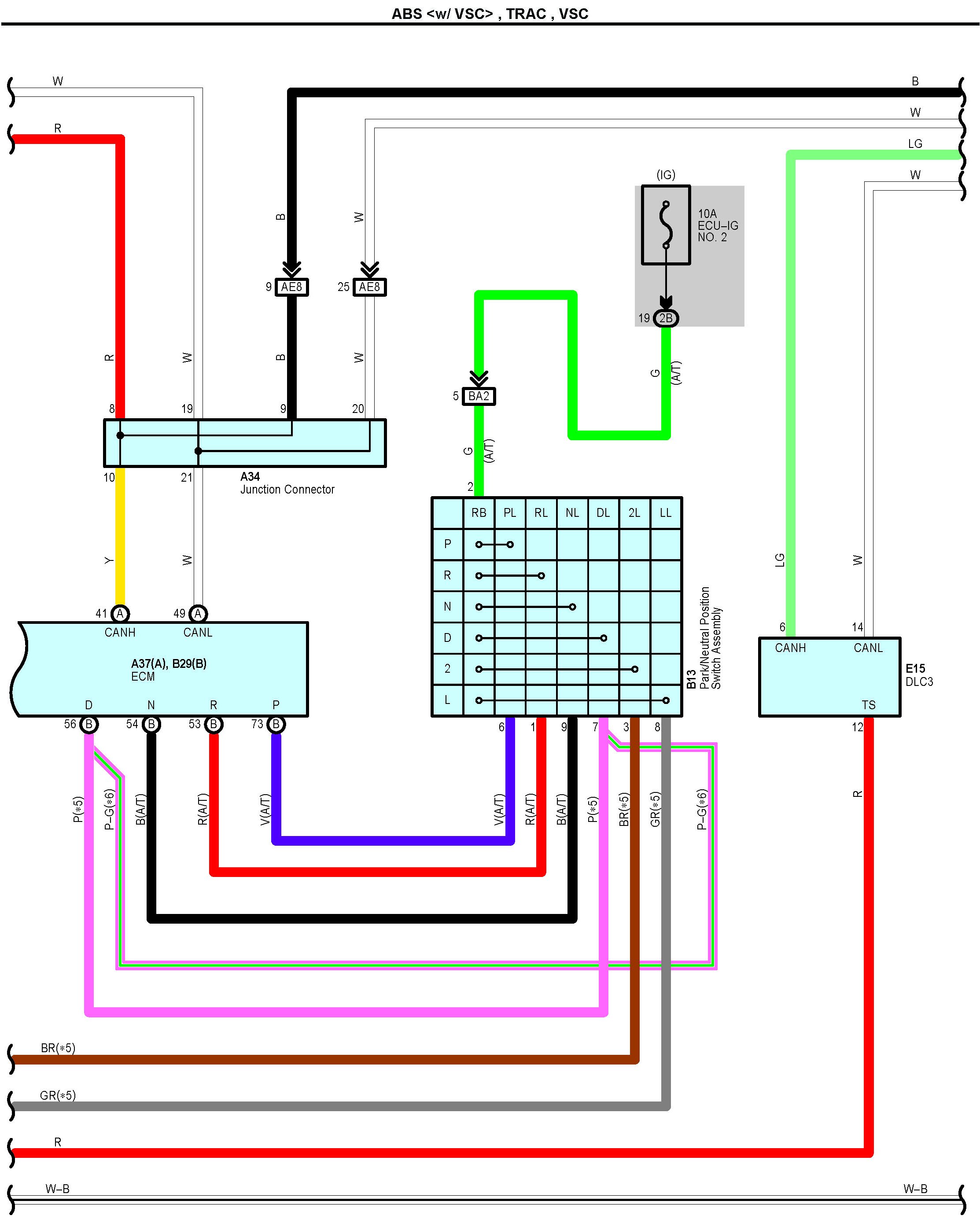

ABS [w/ VSC], TRAC, VSC Part 3:

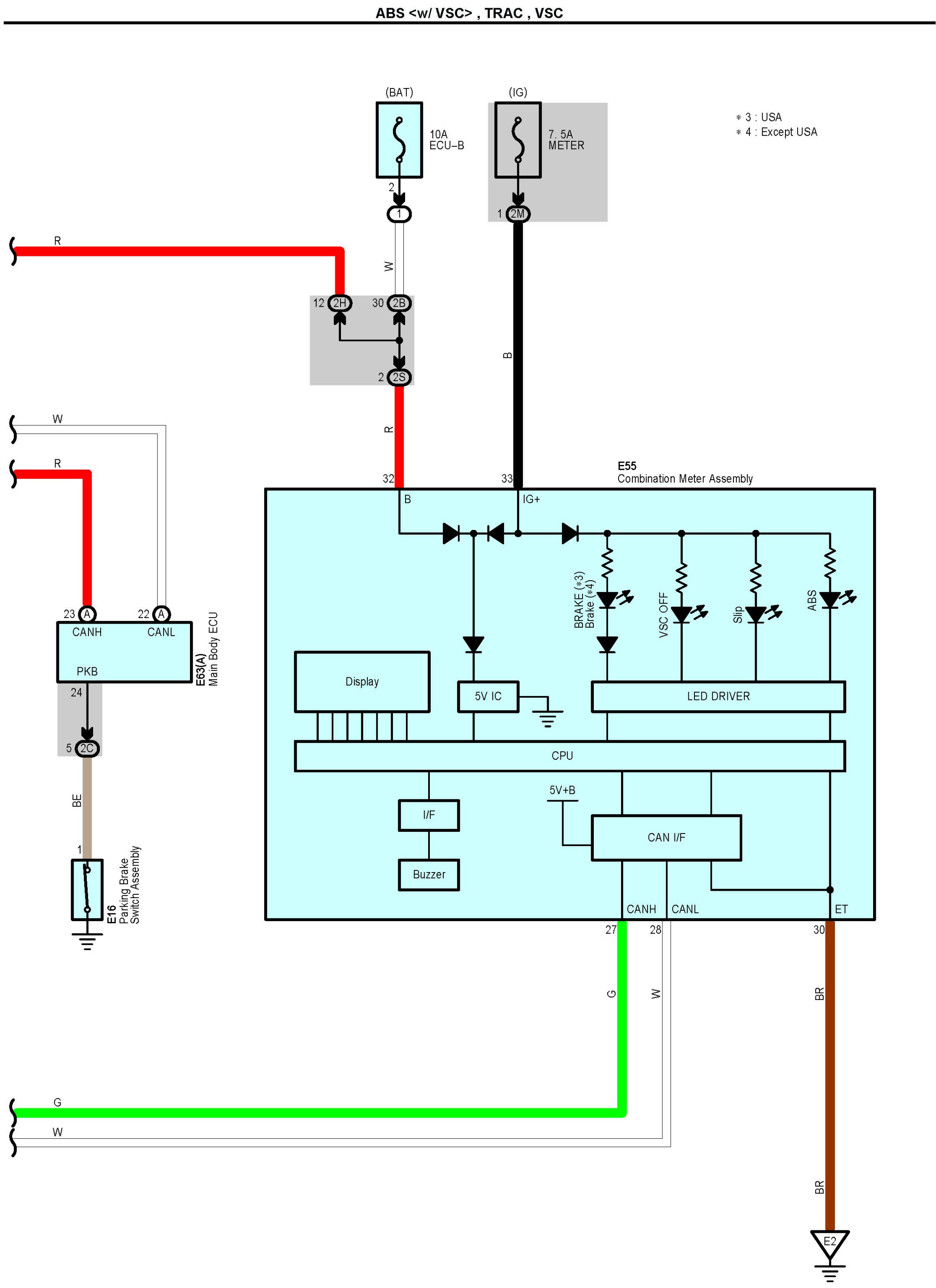

ABS [w/ VSC], TRAC, VSC Part 4:

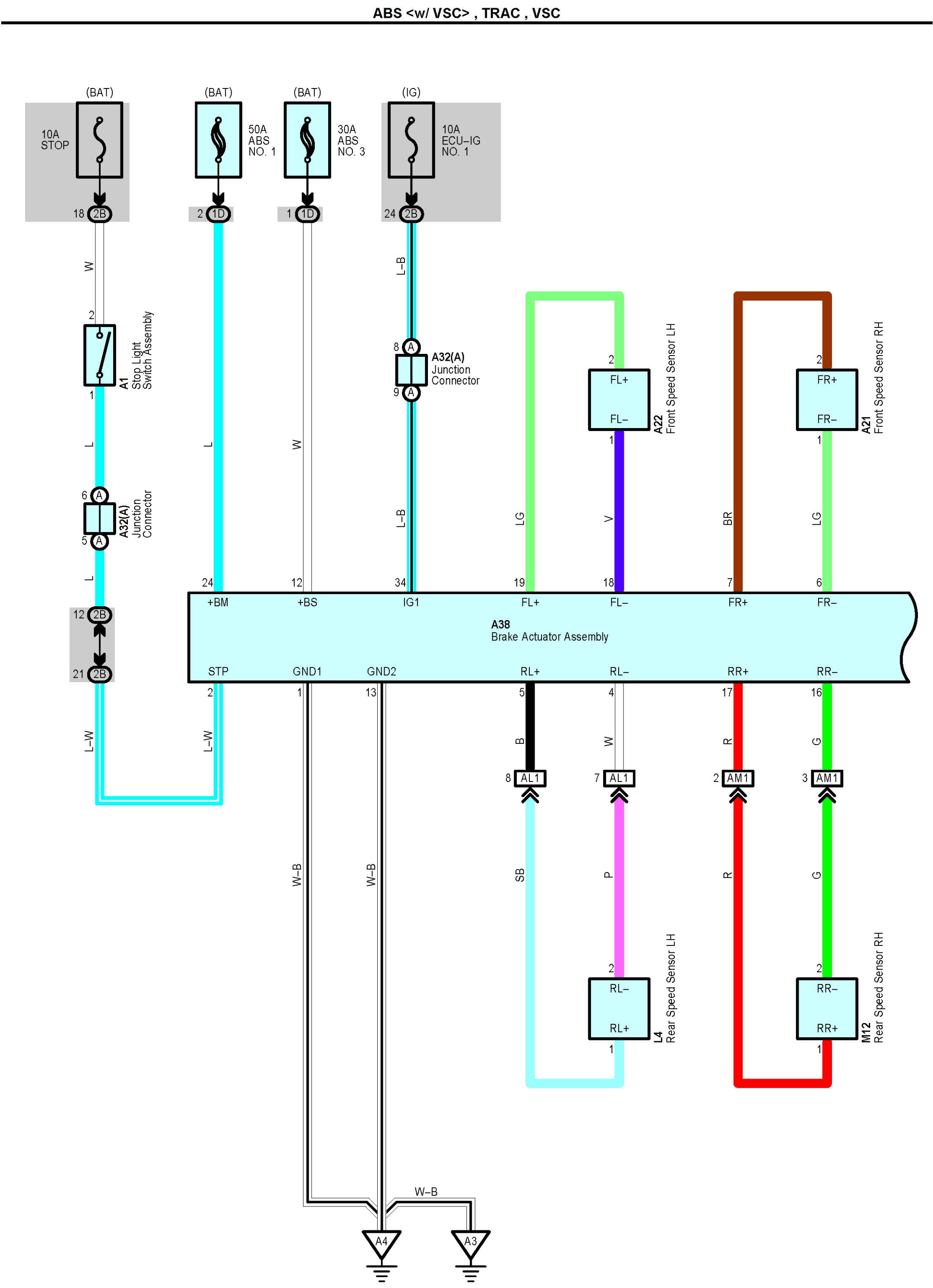

ABS [w/ VSC], TRAC, VSC Part 5:

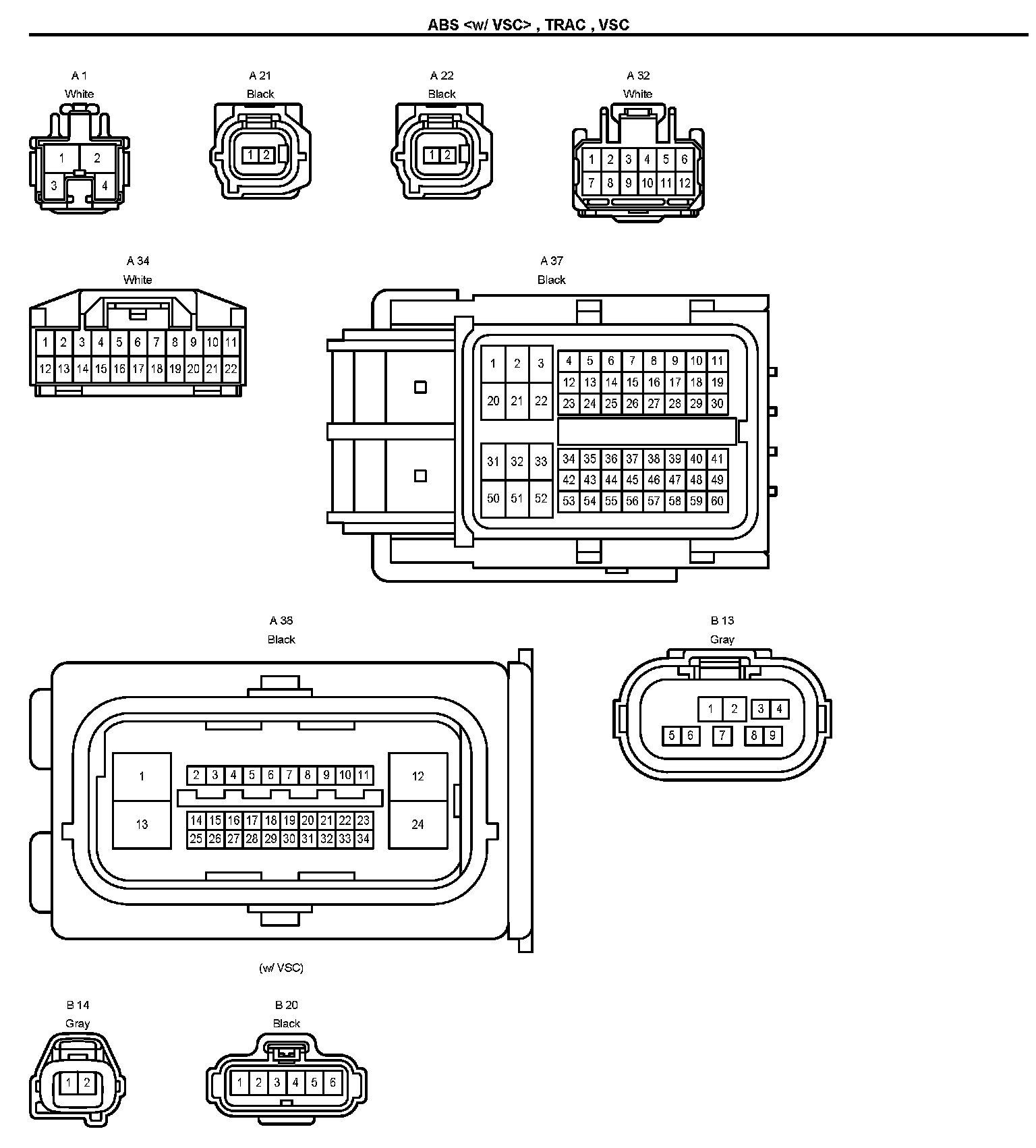

Connectors Part 1:

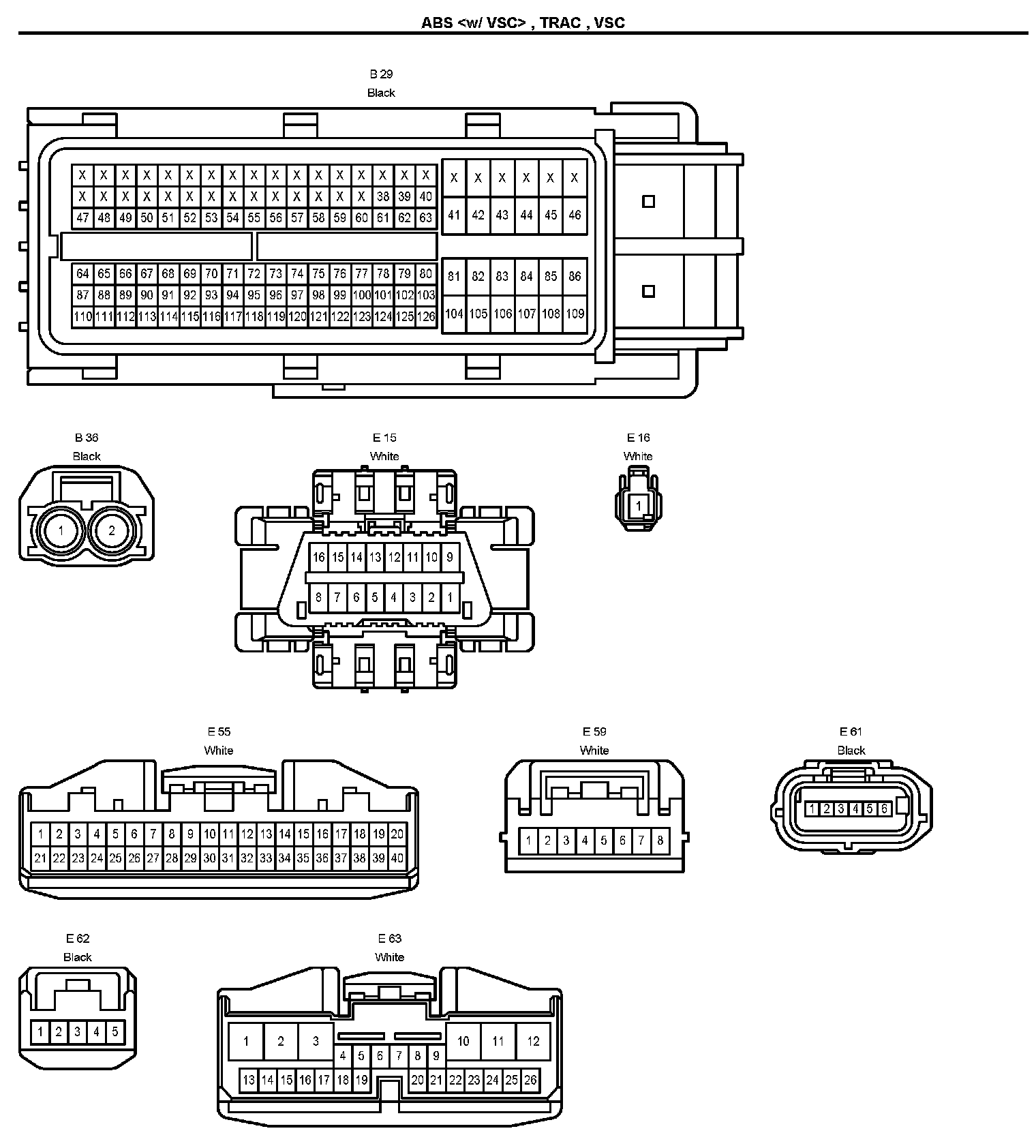

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
