Brake Hose/Line: Description and Operation

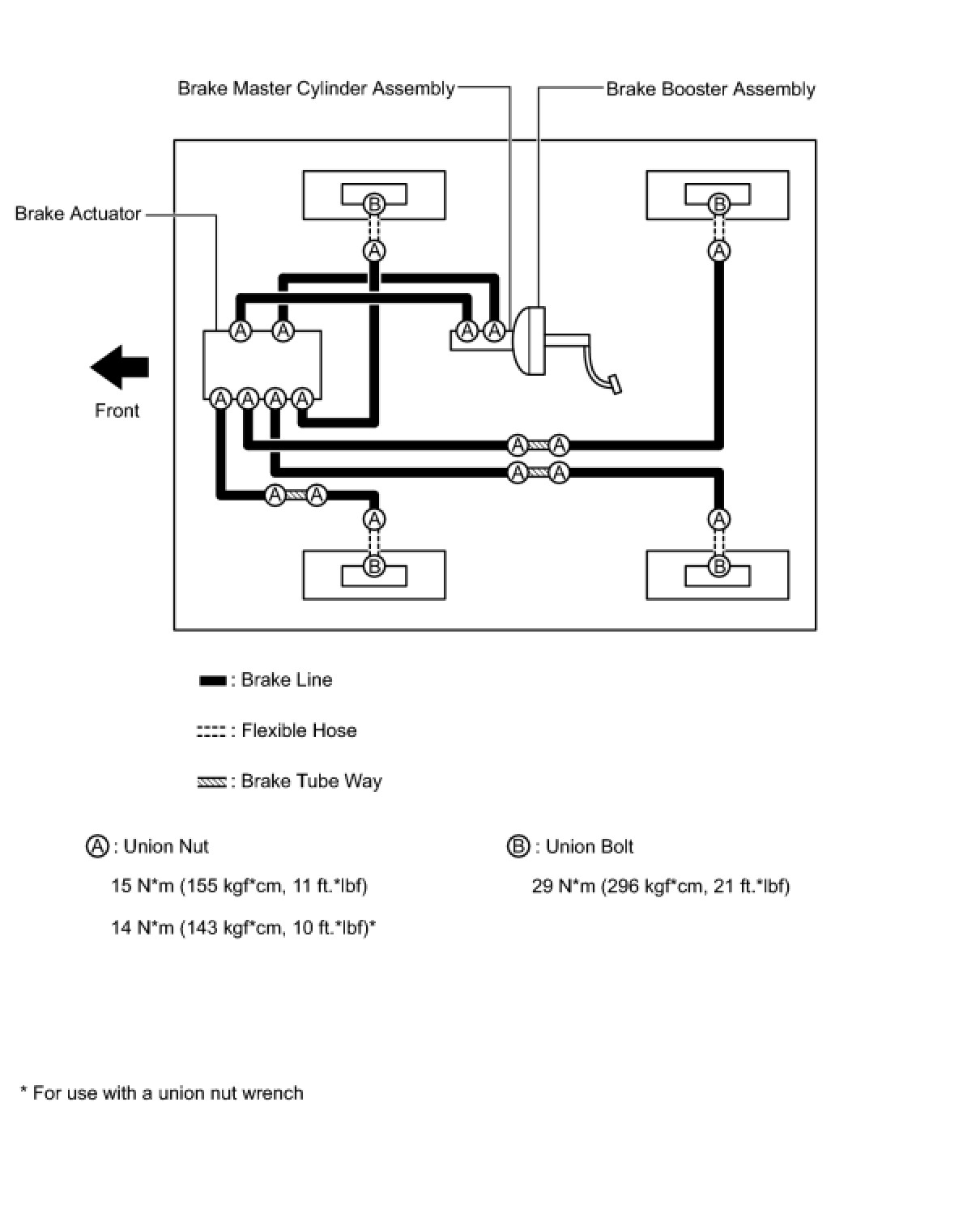

BRAKE SYSTEM (OTHER): BRAKE LINE: SYSTEM DIAGRAM

SYSTEM DIAGRAM
