Fuse Block

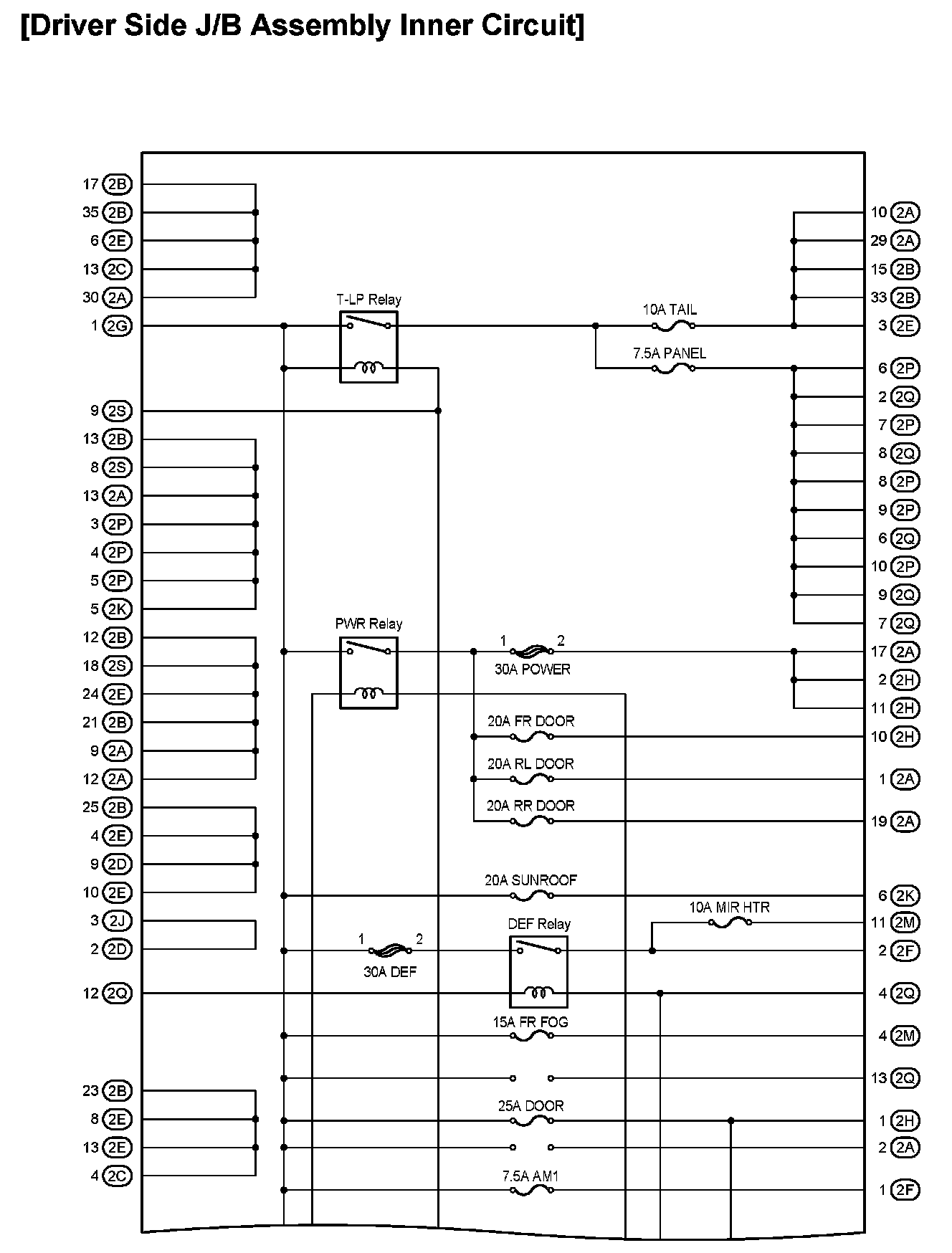

Driver Side J/B Assembly Inner Circuit:

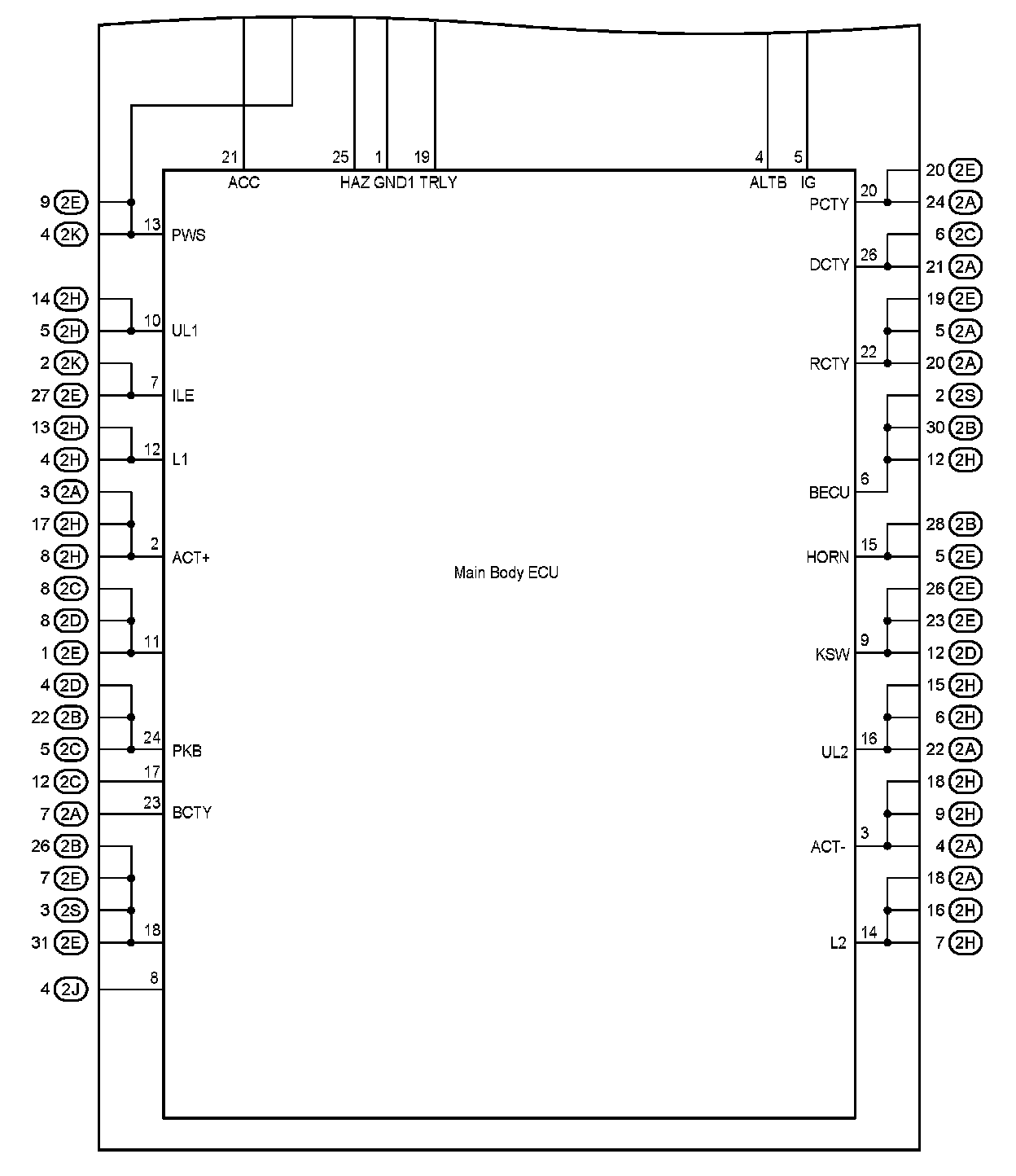

Driver Side J/B Assembly Inner Circuit:

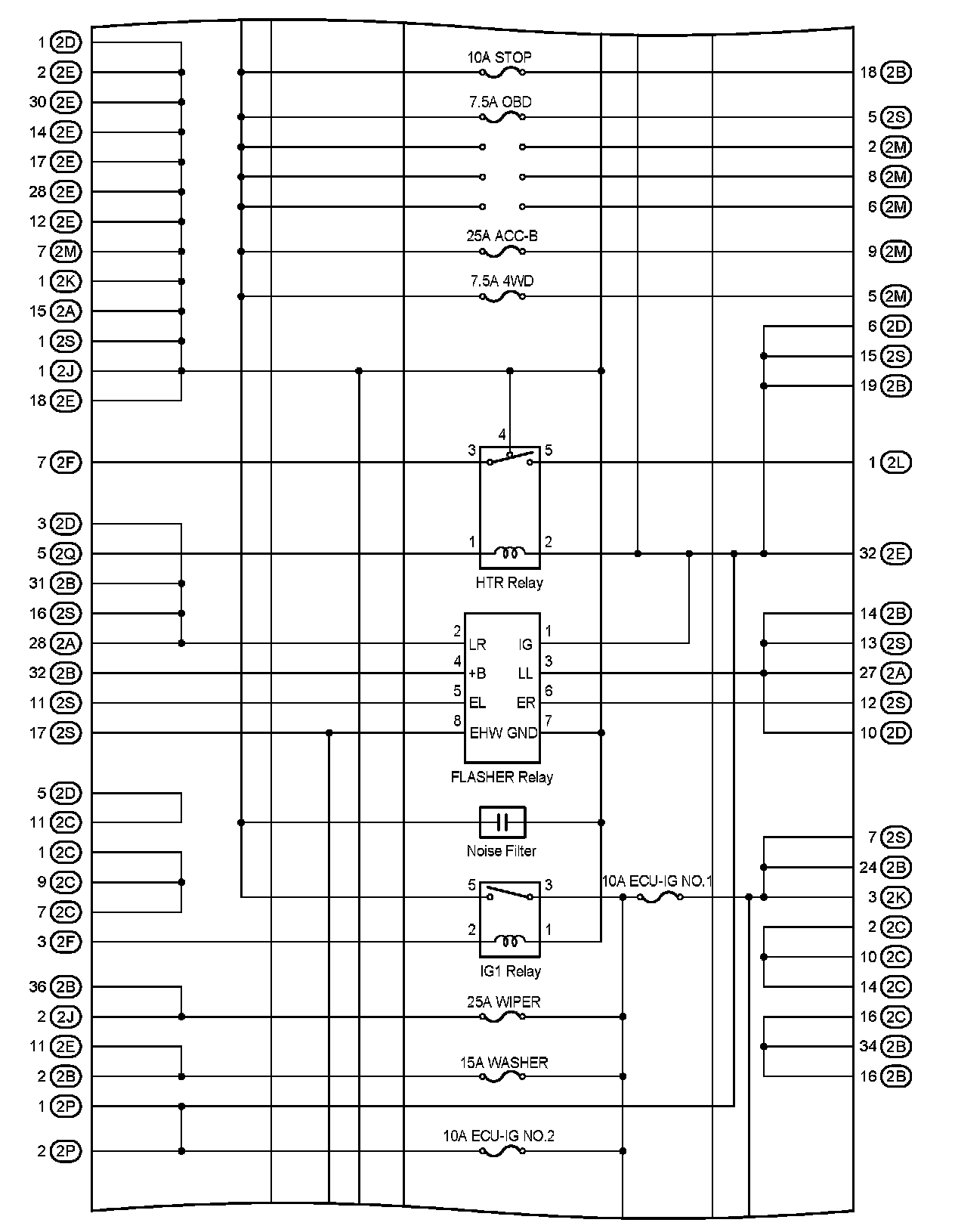

Driver Side J/B Assembly Inner Circuit:

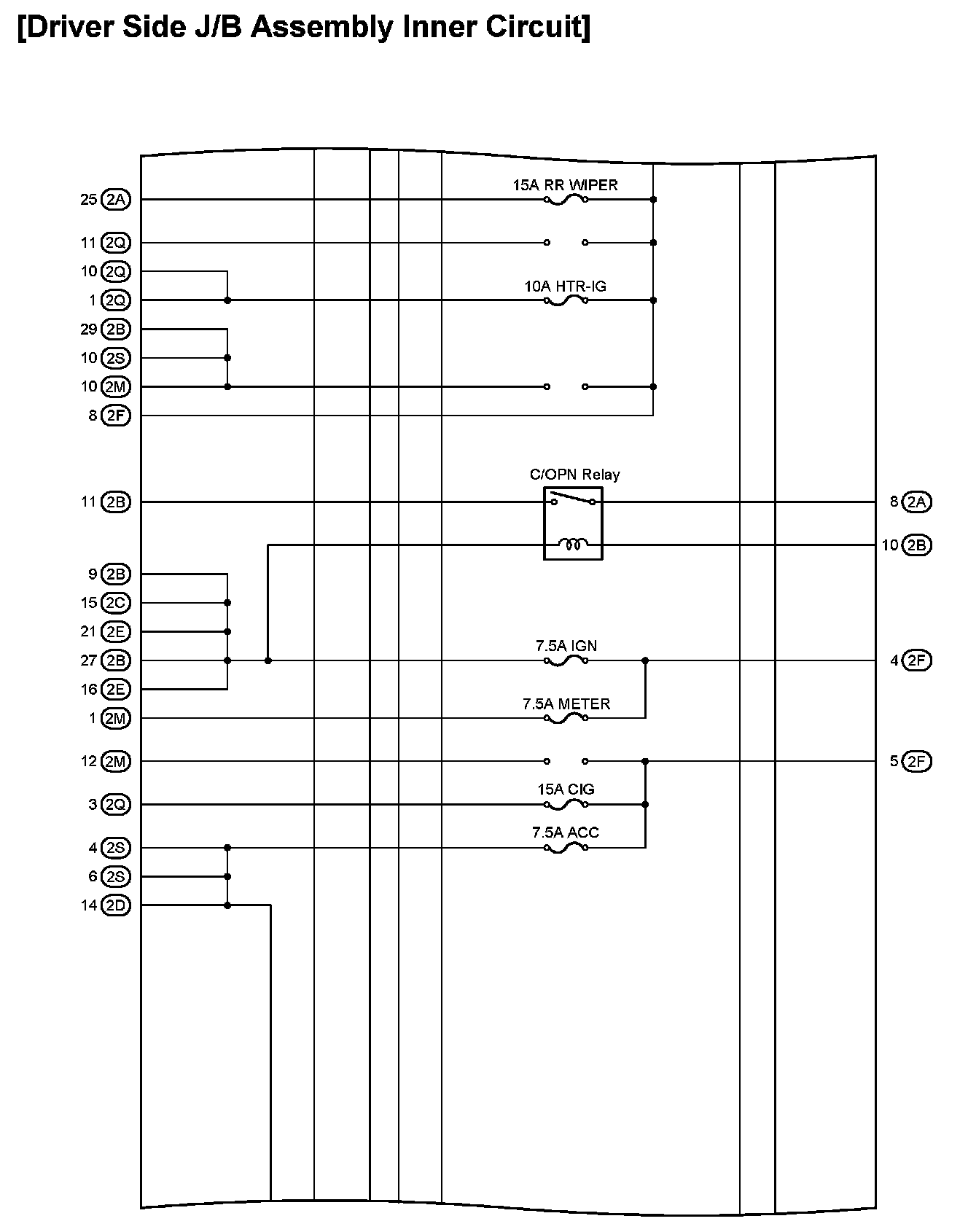

Driver Side J/B Assembly Inner Circuit:

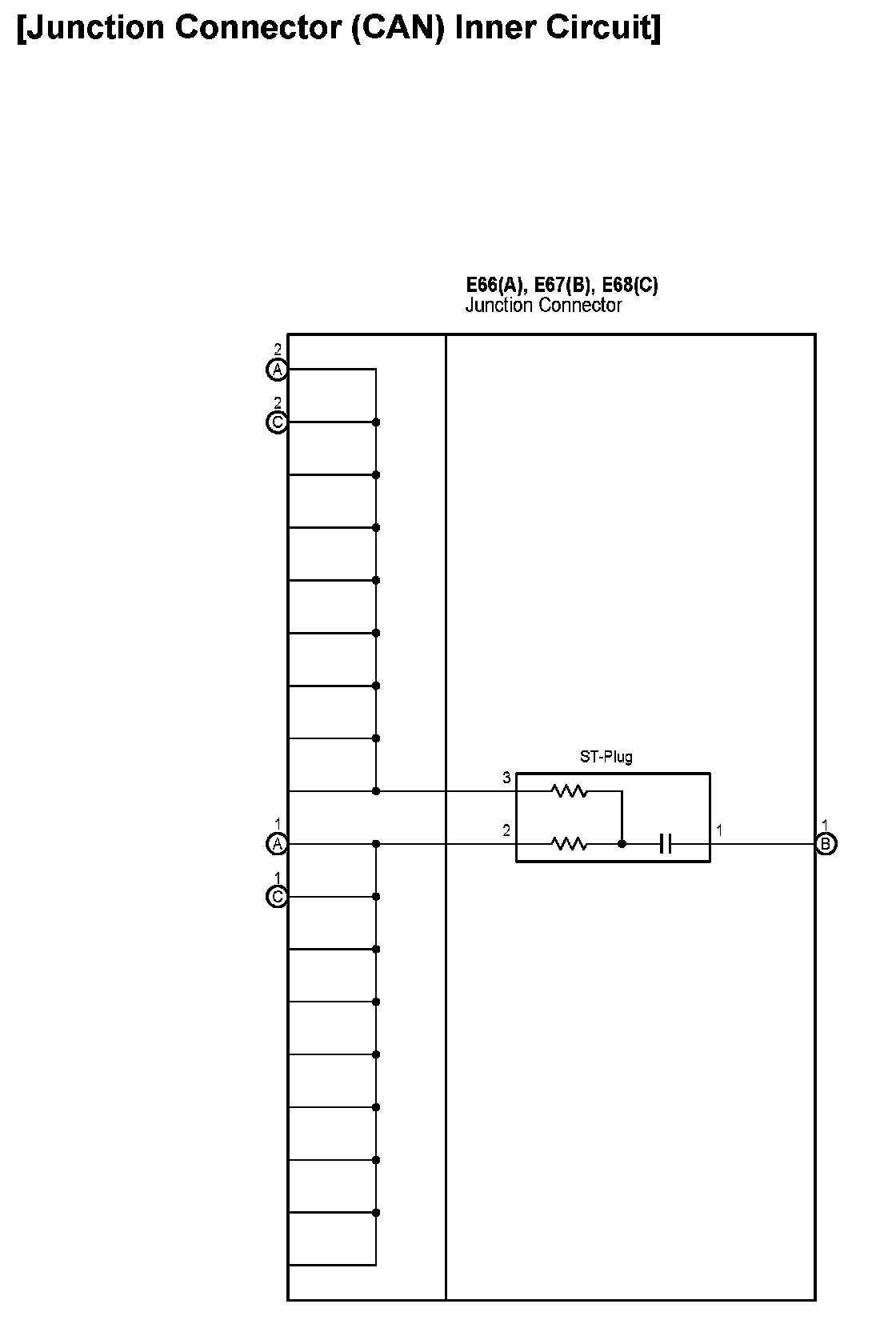

Junction Connector (CAN) Inner Circuit:

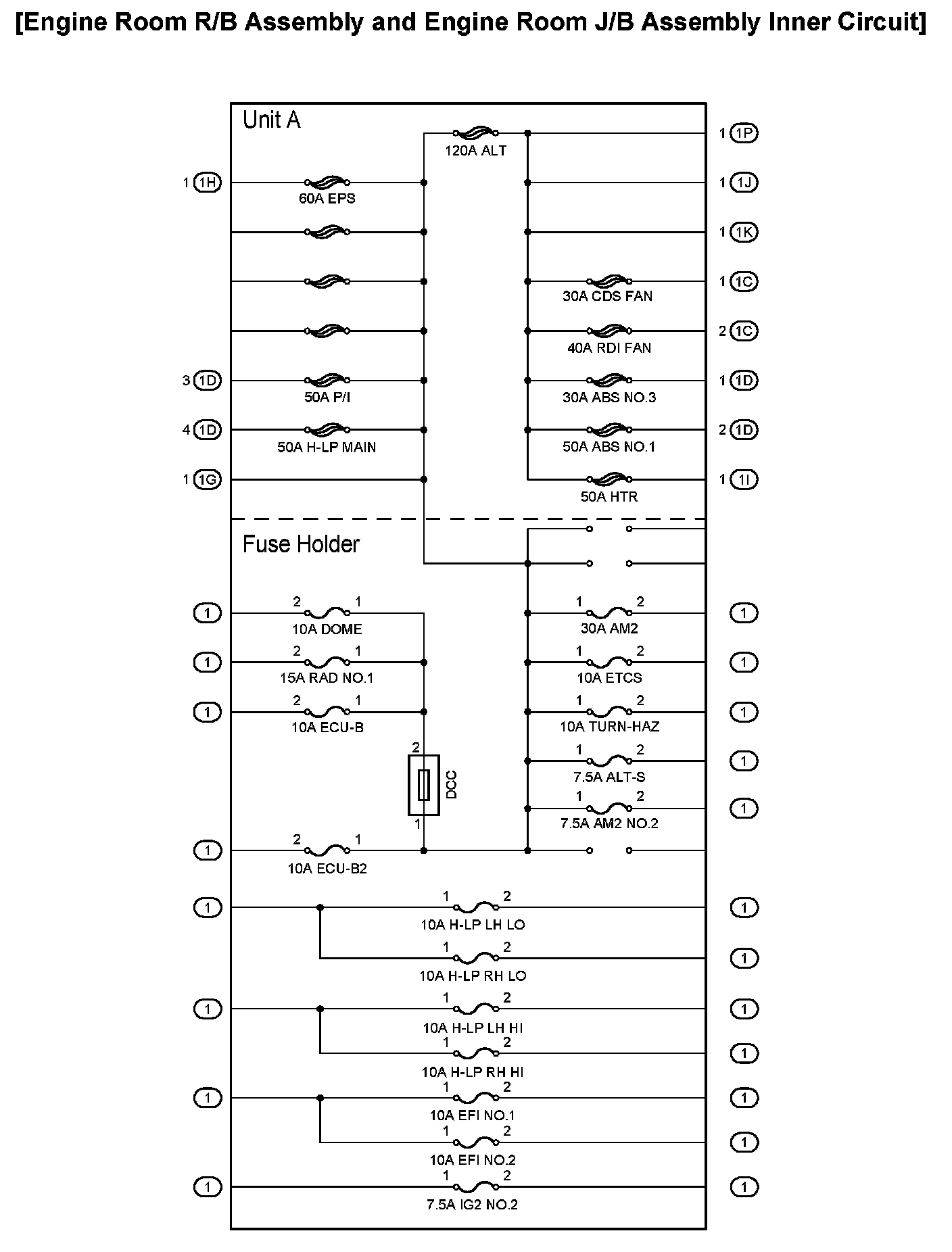

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:
