Removal

2ZR-FE COOLING: COOLING FAN MOTOR: REMOVAL

REMOVAL

1. REMOVE RADIATOR ASSEMBLY
HINT: Removal.

2. REMOVE FAN

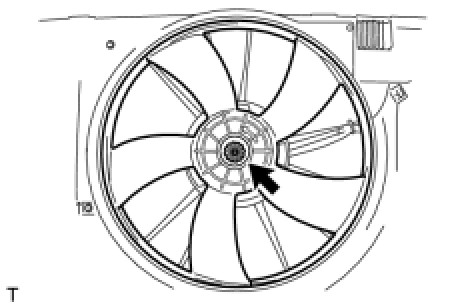

(a) Remove the nut, then remove the fan.
3. REMOVE COOLING FAN MOTOR

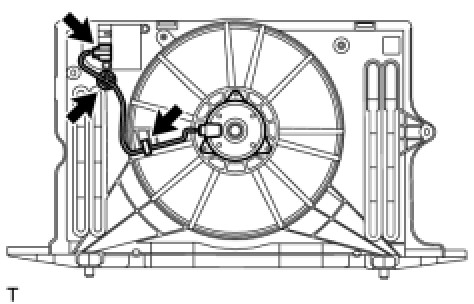

(a) Disconnect the connector and 2 clamps from the fan shroud.





(b) Remove the 3 screws, then remove the cooling fan motor.
