Disassembly

2ZR-FE ENGINE MECHANICAL: CYLINDER HEAD: DISASSEMBLY

DISASSEMBLY

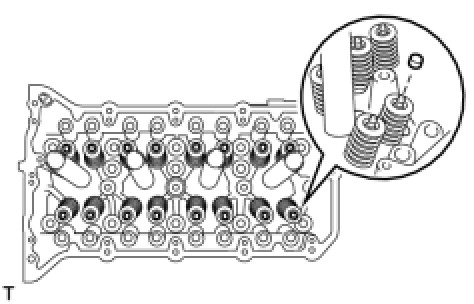

1. REMOVE VALVE STEM CAP

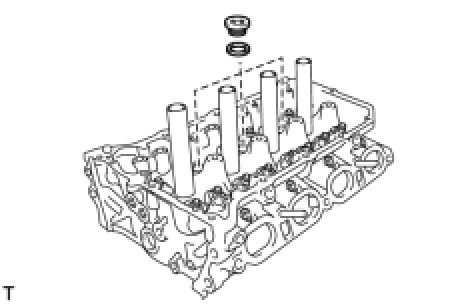

(a) Remove the valve stem caps from the cylinder head.
HINT: Arrange the removed parts in the correct order.

2. REMOVE INTAKE VALVE

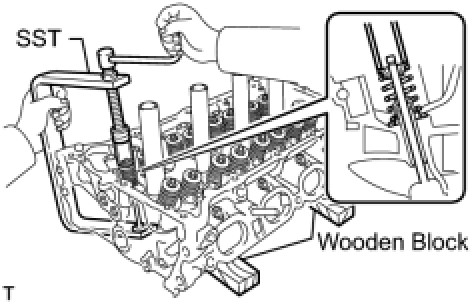

(a) Using SST and wooden blocks, compress and remove the valve retainer locks.
SST: 09202-70020
09202-00010
HINT: Arrange the removed parts in the correct order.

(b) Remove the retainer, valve spring and valve.
HINT: Arrange the removed parts in the correct order.

3. REMOVE EXHAUST VALVE

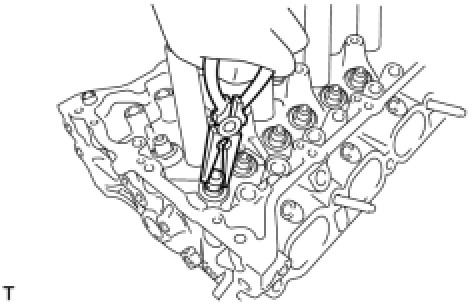

(a) Using needle-nose pliers, remove the oil seals.
5. REMOVE VALVE SPRING SEAT

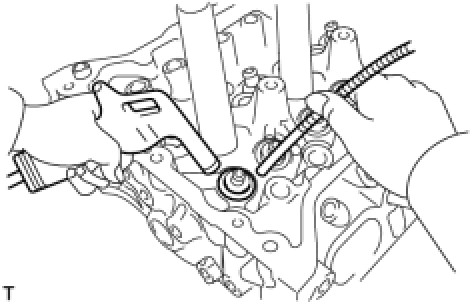

(a) Using compressed air and a magnetic pick-up tool, remove the valve spring seats by blowing air onto them.
6. REMOVE NO. 2 STRAIGHT SCREW PLUG

(a) Using a 10 mm straight hexagon wrench, remove the 3 screw plugs and 3 gaskets.
NOTE: If water leaks from any of the straight screw plugs or if a plug is corroded, replace it.
