2ZR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL TIMING CHAIN COVER OIL SEAL
(a) Apply MP grease to the lip of a new oil seal.
NOTE: Keep the lip free of foreign matter.

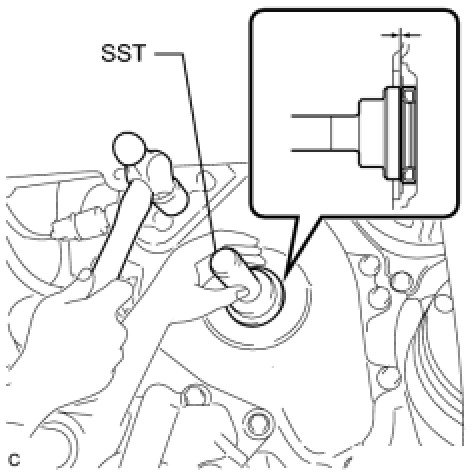

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST: 09223-22010
NOTE: Wipe off extra grease from the crankshaft.

2. INSTALL CRANKSHAFT PULLEY
(a) Align the pulley set key with the key groove of the pulley.

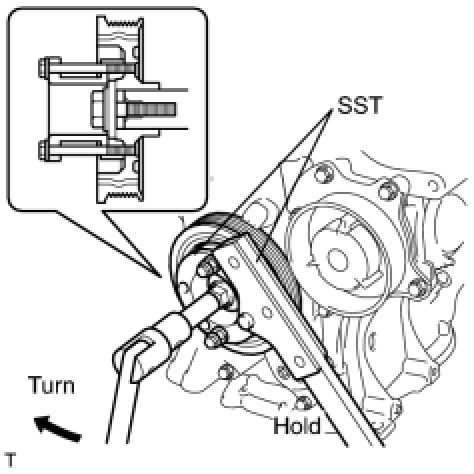

(b) Using SST, hold the pulley in place and tighten the bolt.
SST: 09213-58013
SST: 09330-00021
Torque: 190 Nm (1940 kgf-cm, 140 ft-lbf)
NOTE: Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.

3. INSTALL V-RIBBED BELT Installation
4. ADJUST V-RIBBED BELT Installation
5. INSPECT V-RIBBED BELT Testing and Inspection
6. ADD ENGINE OIL Replacement
7. INSPECT FOR ENGINE OIL LEAK
8. INSTALL NO. 2 CYLINDER HEAD COVER Installation
9. INSTALL ENGINE UNDER COVER RH
10. INSTALL FRONT WHEEL RH
