Components

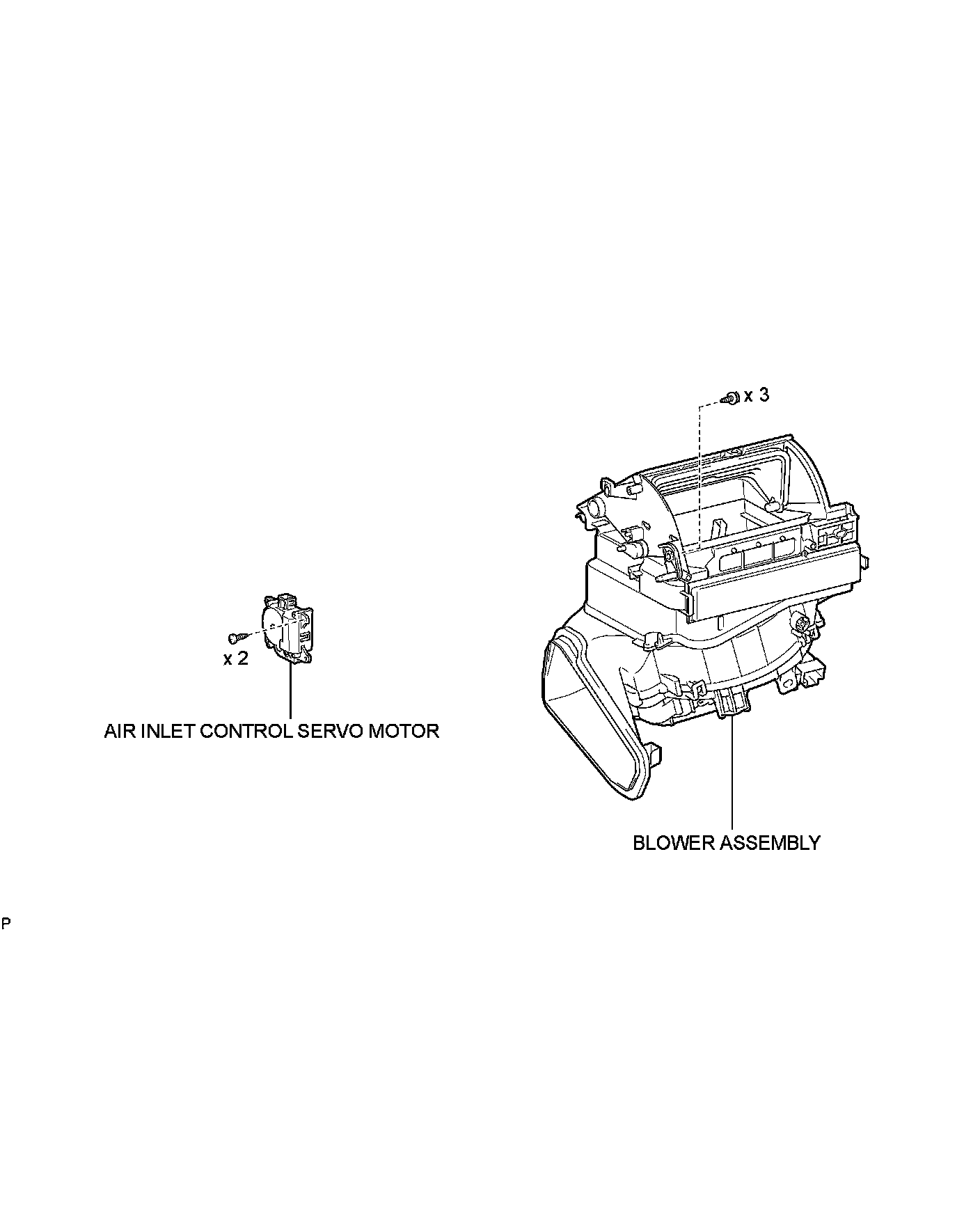

HEATING / AIR CONDITIONING: AIR INLET CONTROL SERVO MOTOR: COMPONENTS

COMPONENTS

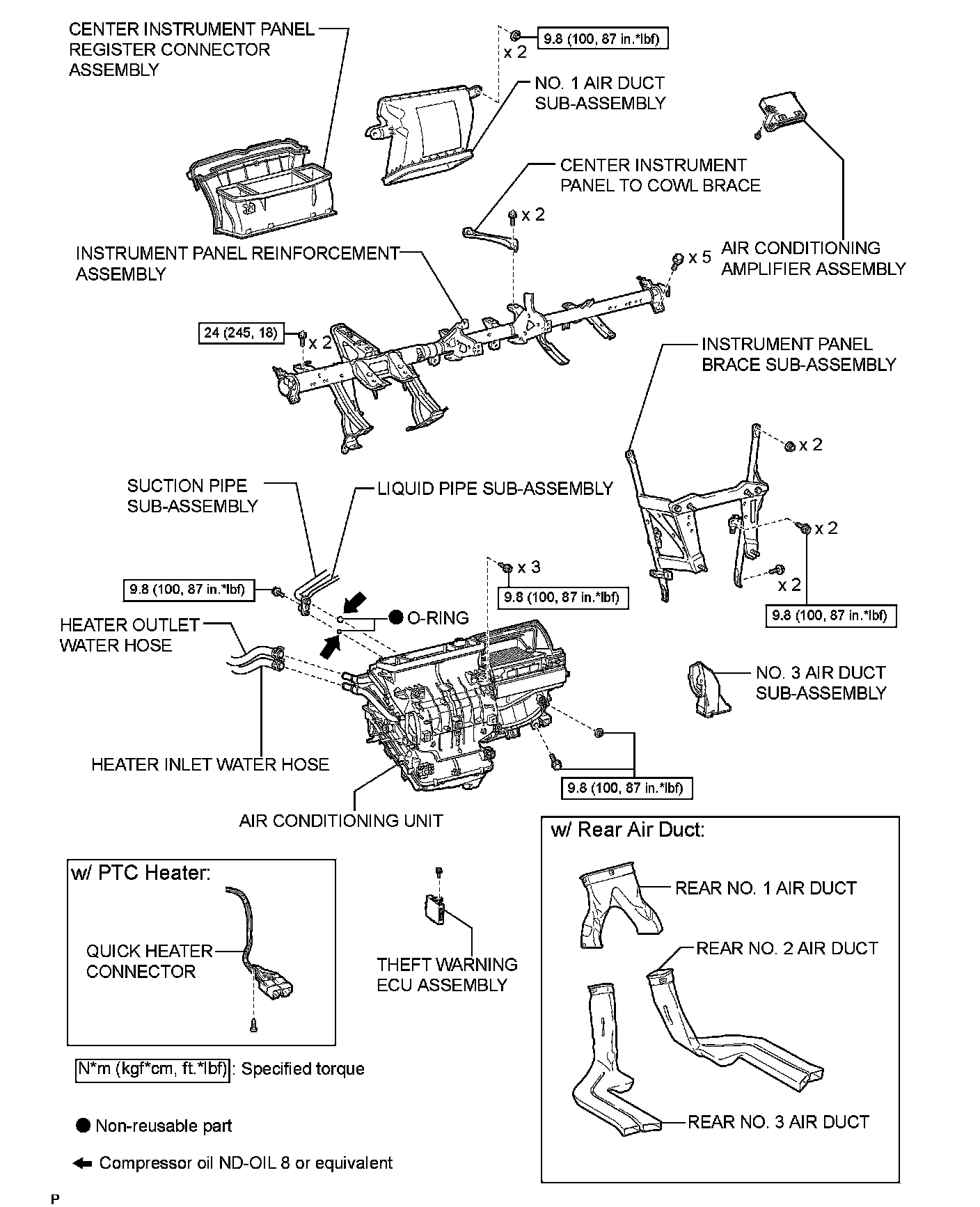

ILLUSTRATION
