Reassembly

HEATING / AIR CONDITIONING: CONDENSER: REASSEMBLY

REASSEMBLY

1. INSTALL COOLER DRYER





(a) Using pliers, install a new cooler dryer to the modulator.

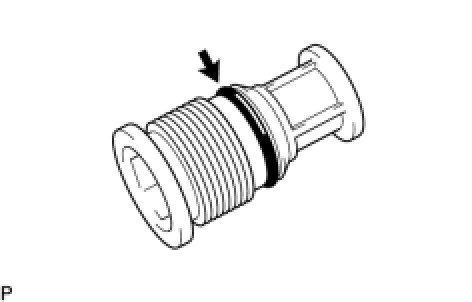

(b) Apply sufficient compressor oil to a new O-ring and the cap fitting surface.
Compressor oil:
ND-OIL 8 or equivalent





(c) Using a 14 mm straight hexagon wrench, install a new cap to the cooler condenser core.
Torque: 2.9 Nm (30 kgf-cm, 26 in-lbf)

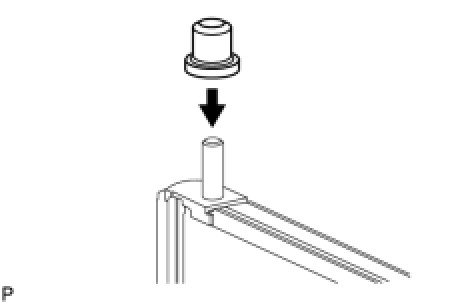

2. INSTALL NO. 1 COOLER CONDENSER CUSHION





(a) Install the 4 No. 1 cooler condenser cushions.
