Installation

METER / GAUGE / DISPLAY: CLOCK: INSTALLATION

INSTALLATION

1. INSTALL CLOCK ASSEMBLY

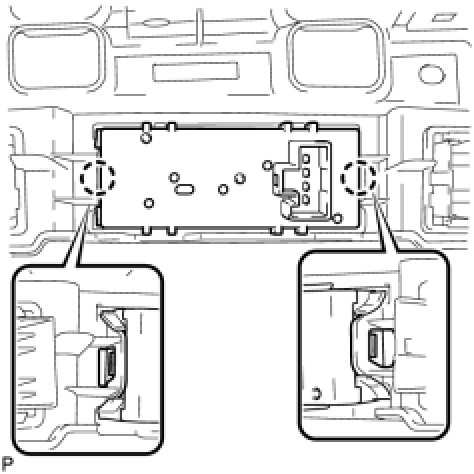

(a) Engage the 2 claws and install the clock assembly.
2. INSTALL AIR CONDITIONING PANEL ASSEMBLY Installation
3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Installation
4. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Installation
5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation
7. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
