Fail-Safe Chart

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

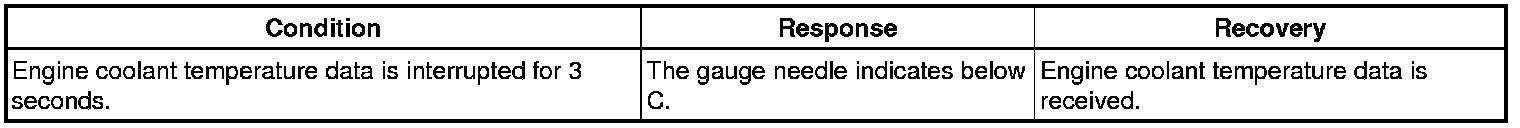

Engine Coolant Temperature Receiver Gauge





Shift Indicator*1





ABS, EBD, BA, TRAC*2, AND VSC*2





Door

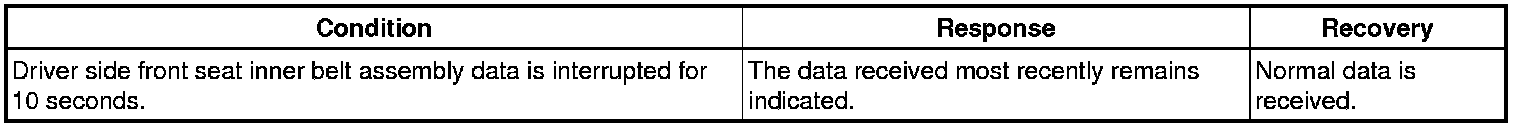

Driver Side Seat Belt

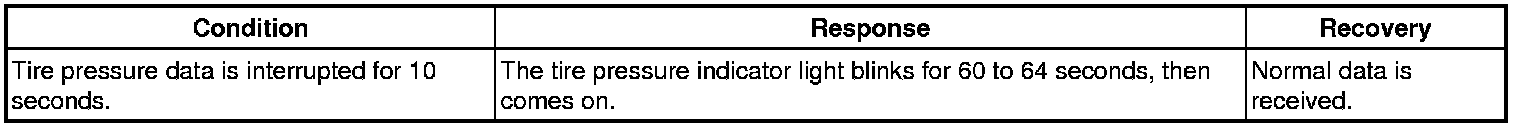

Tire Pressure*3

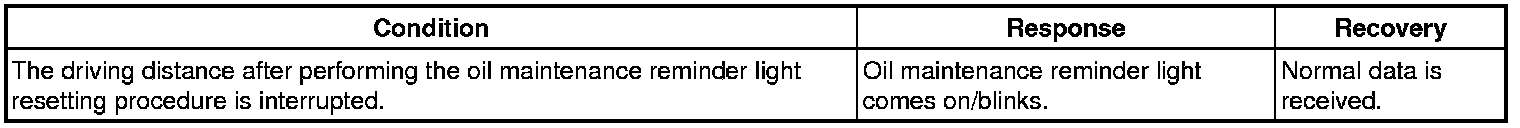

Maintenance*4

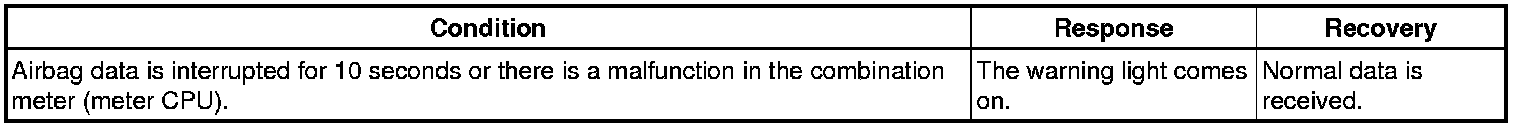

Airbag





Front Passenger Side Seat Belt





EPS





4WD*5





- *1: for Automatic Transaxle
- *2: w/ VSC
- *3: w/ Tire Pressure Warning System
- *4: for U.S.A.
- *5: for 4WD
