Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

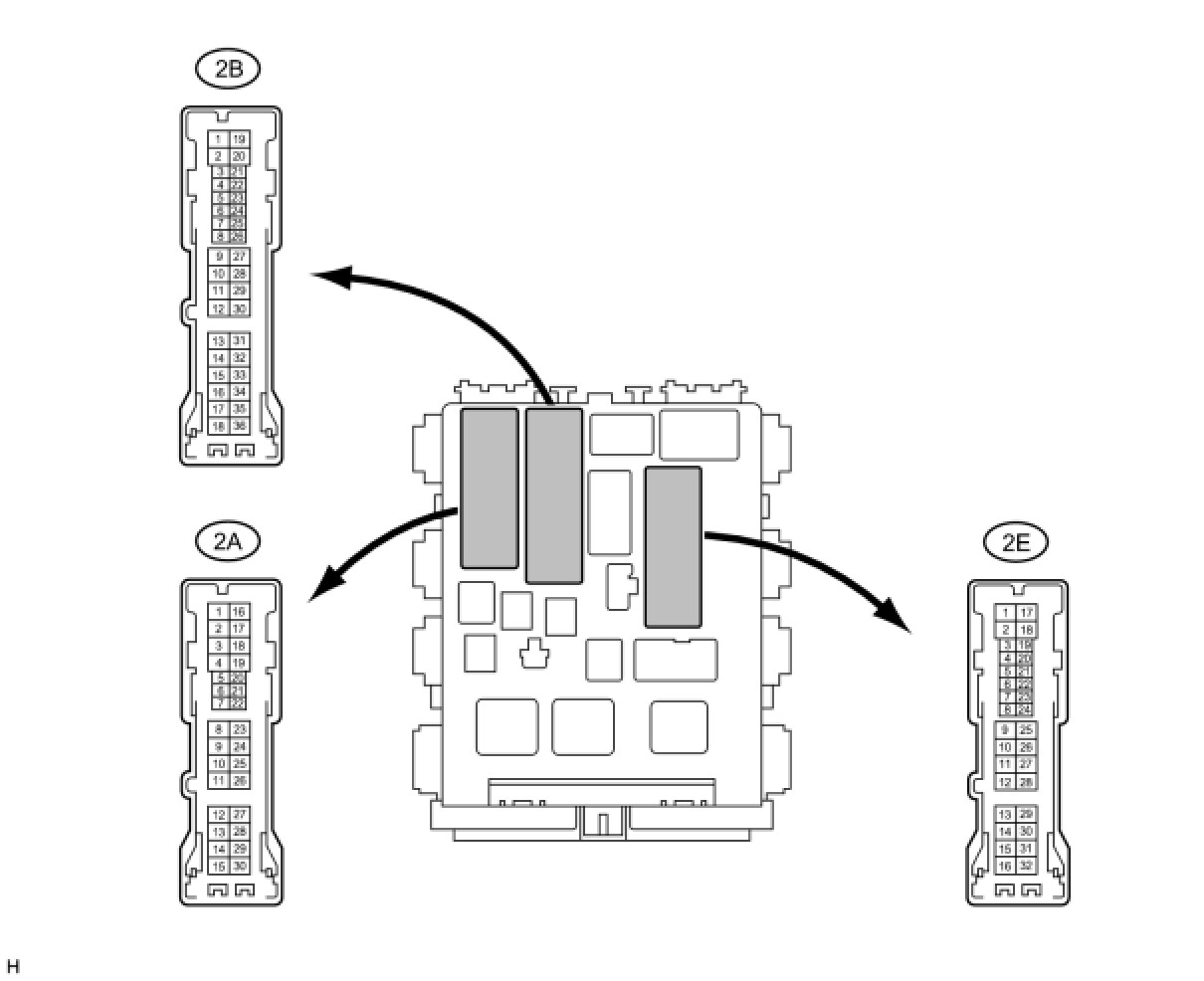

(a) Disconnect the 2A, 2B and 2E junction block connectors.

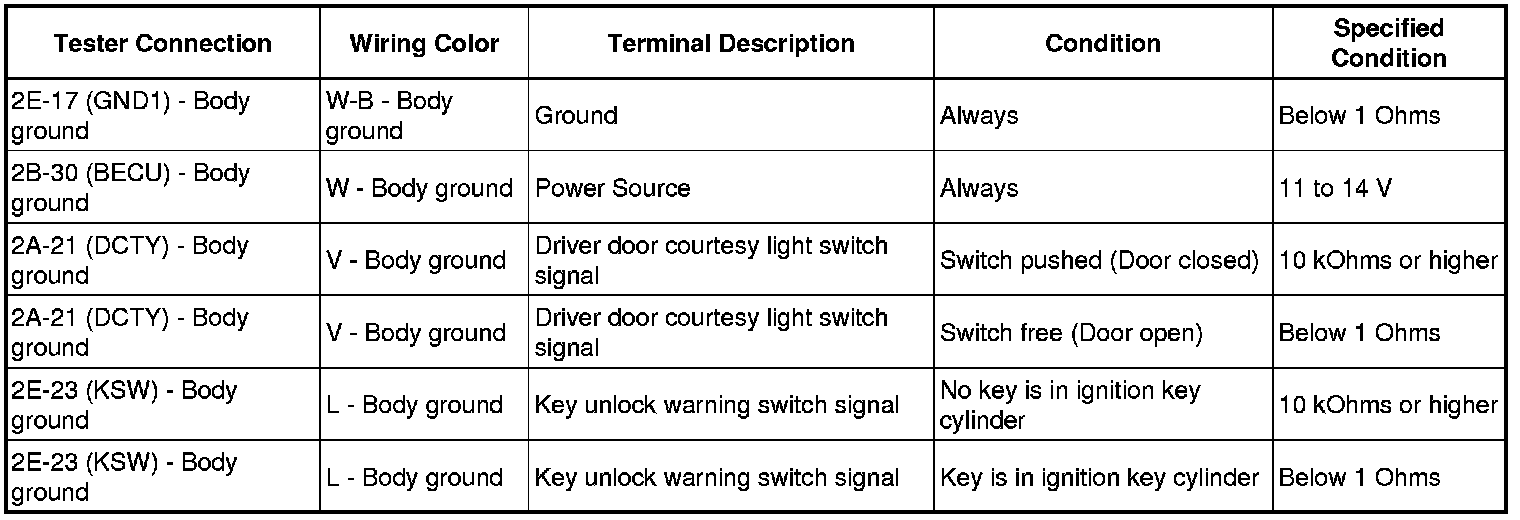

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.
