Headlamp Dimmer Switch: Testing and Inspection








LIGHTING (EXT): HEADLIGHT DIMMER SWITCH: INSPECTION

INSPECTION

1. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY






(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

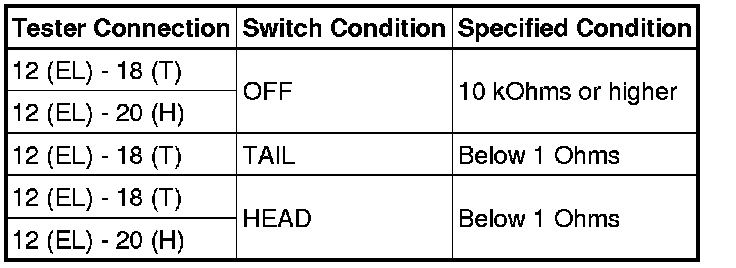

Light Control Switch

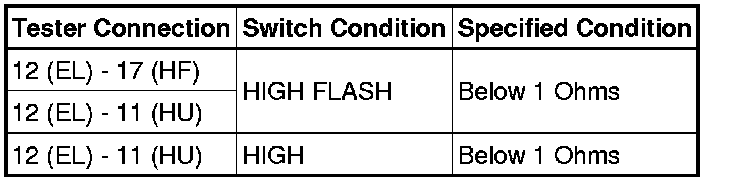

Dimmer Switch

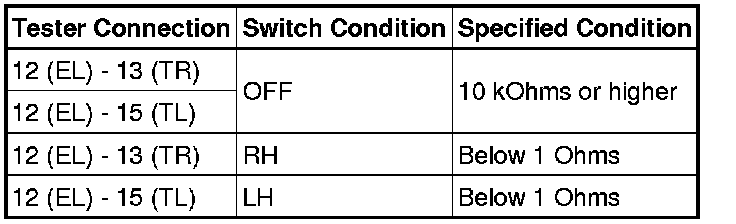

Turn Signal Switch

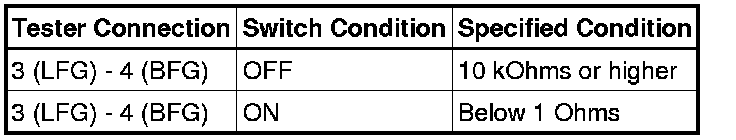

Front Fog Light Switch










If the result is not as specified, replace the switch assembly.
