Installation

LIGHTING (EXT): LICENSE PLATE LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT BULB
(a) Install the license plate light bulb to the license plate light socket.

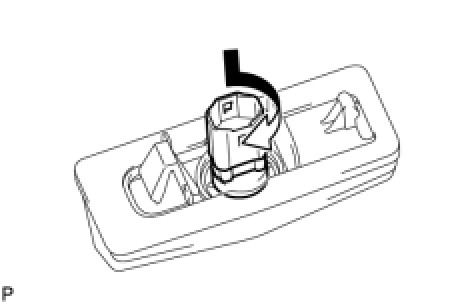

(b) Turn the license plate light bulb and the license plate light socket in the direction indicated by the arrow and install them as a license plate light lens.
2. INSTALL LICENSE PLATE LIGHT ASSEMBLY





(a) Engage the 2 claws and install the license plate light assembly.
Connect the connector.
3. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
4. INSTALL BACK DOOR LOCK CYLINDER ASSEMBLY Reassembly
5. INSTALL BACK DOOR OUTSIDE HANDLE SUB-ASSEMBLY Reassembly
6. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly
7. INSTALL BACK DOOR SIDE GARNISH LH Reassembly
8. INSTALL BACK DOOR SIDE GARNISH RH Reassembly
9. INSTALL BACK DOOR CENTER GARNISH Reassembly
