Parking Brake Switch Circuit

LIGHTING (EXT): LIGHTING SYSTEM: Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION

The daytime running light relay receives the parking brake switch signal.

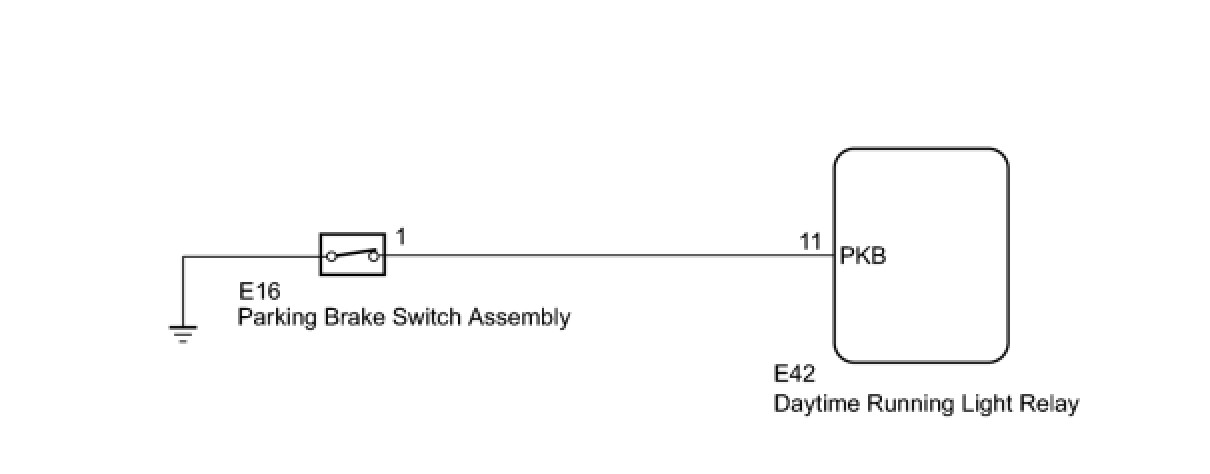

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DAYTIME RUNNING LIGHT RELAY - BODY GROUND)

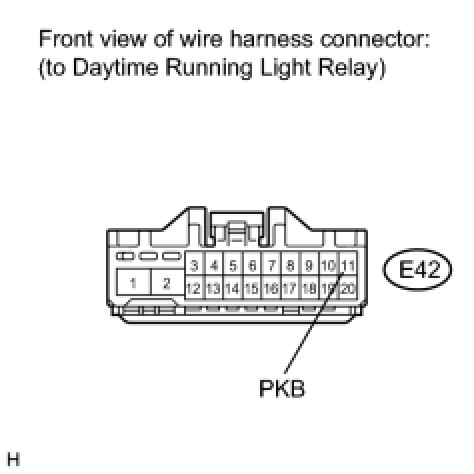

(a) Disconnect the E42 daytime running light relay connector.

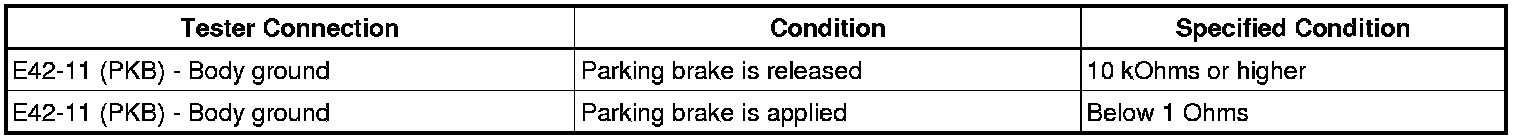

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- INSPECT PARKING BRAKE SWITCH ASSEMBLY
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
2. INSPECT PARKING BRAKE SWITCH ASSEMBLY




(a) Remove the parking brake switch assembly.

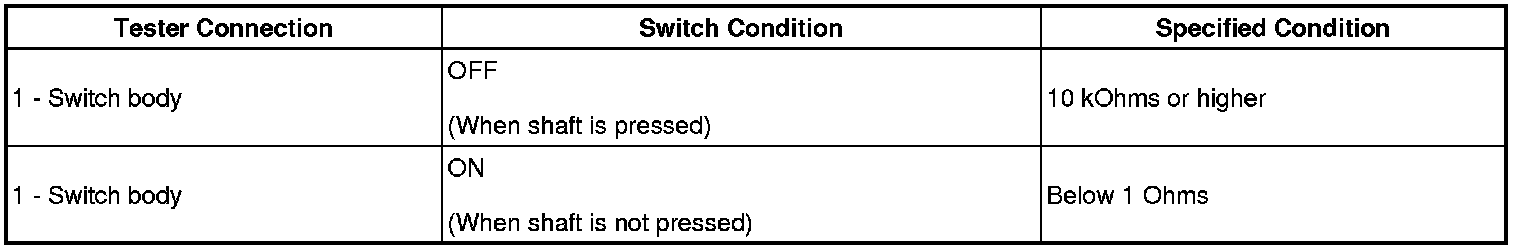

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPLACE PARKING BRAKE SWITCH ASSEMBLY
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (PARKING BRAKE SWITCH CIRCUIT)
