Operation Check

LIGHTING (INT): LIGHTING SYSTEM: OPERATION CHECK

OPERATION CHECK

1. INSPECT ILLUMINATED ENTRY SYSTEM OPERATION
NOTE: Perform this inspection with the customizable functions at their default settings.
HINT: The illuminated entry system illuminates the lights below:
- Personal light*1
- Center room light
- Rear room light

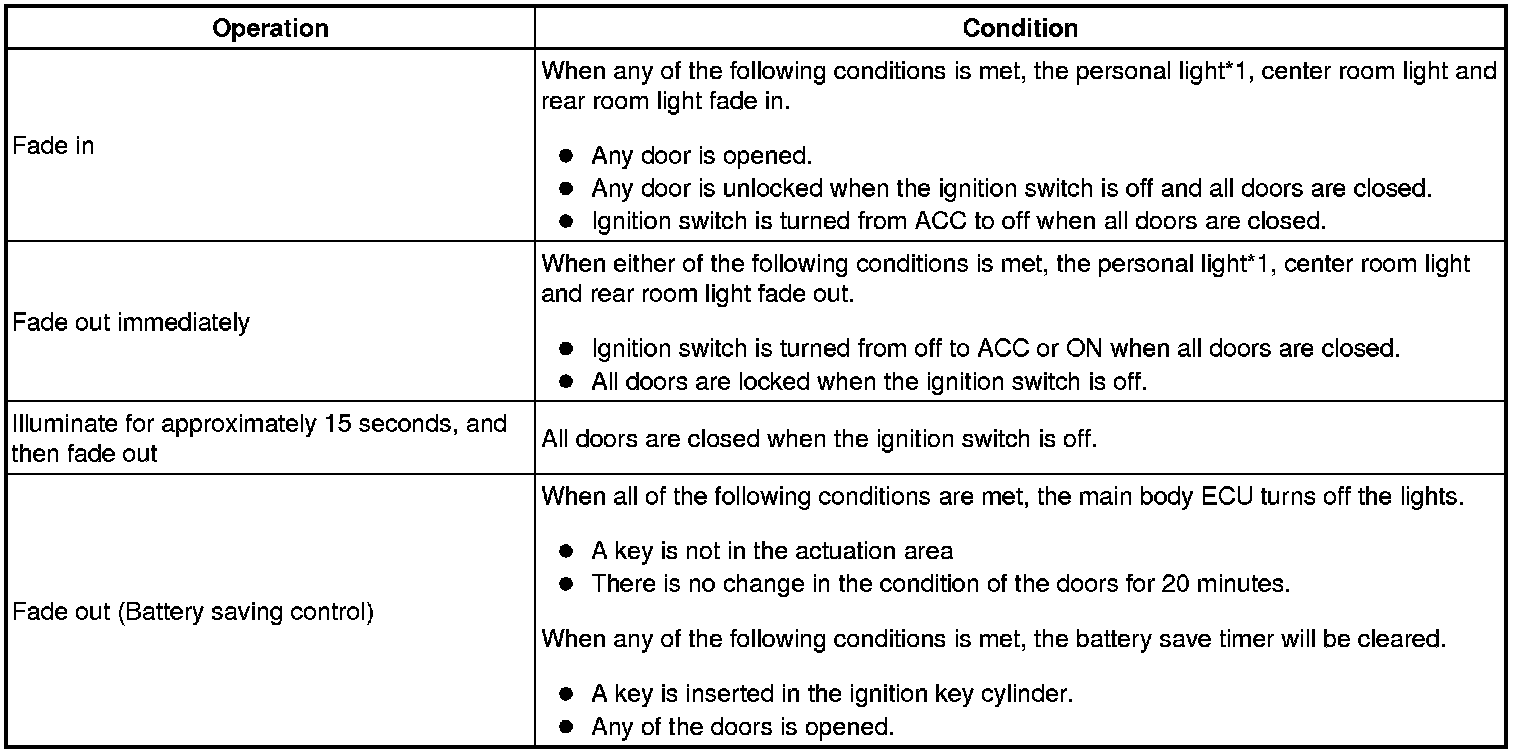

(a) The operations and conditions of this control are described below.





HINT: *1: w/ Sliding Roof
