POWER OUTLETS (INT): POWER OUTLET SOCKET: INSTALLATION

INSTALLATION

1. INSTALL POWER OUTLET SOCKET COVER





(a) Engage the 2 claws to install the power outlet socket cover.

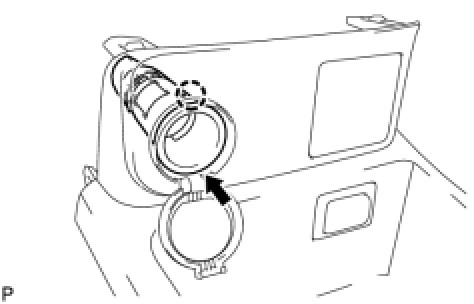

2. INSTALL POWER POINT SOCKET ASSEMBLY





(a) Engage the claw to install the power point socket assembly.
3. INSTALL NO. 2 SWITCH HOLE BASE Installation
4. INSTALL FRONT UPPER CONSOLE BOX Installation
