Installation

2ZR-FE ENGINE CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR





(a) Using SST, install the air fuel ratio sensor.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)

NOTICE:

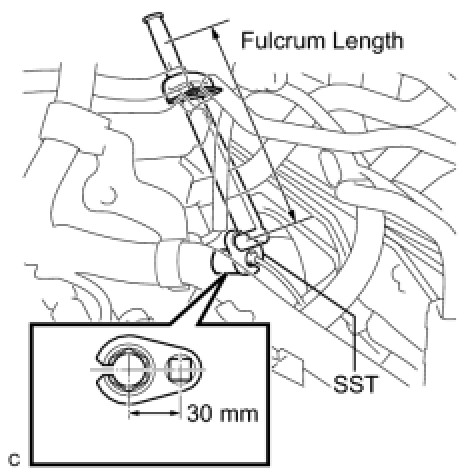

- This torque value is effective when SST is parallel to the torque wrench.
- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and SST with a measurement of 30 mm (1.18 in.) Service Precautions.





(b) Connect the air fuel ratio sensor connector and clamp.
2. INSTALL NO. 2 CYLINDER HEAD COVER Installation
3. INSTALL OUTER COWL TOP PANEL Installation
4. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
5. INSTALL COWL TOP VENTILATOR LOUVER LH Installation
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
7. INSTALL HOOD TO COWL TOP SEAL Installation
8. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
9. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
10. INSTALL FRONT WIPER ARM HEAD CAP Installation
11. INSPECT FOR EXHAUST GAS LEAK
