2ZR-FE ENGINE CONTROL: AIR FUEL RATIO SENSOR: REMOVAL

REMOVAL

1. REMOVE FRONT WIPER ARM HEAD CAP Removal
2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
4. REMOVE HOOD TO COWL TOP SEAL Removal
5. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
6. REMOVE COWL TOP VENTILATOR LOUVER LH Removal
7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Removal
8. REMOVE OUTER COWL TOP PANEL Removal
9. REMOVE NO. 2 CYLINDER HEAD COVER Removal
10. REMOVE AIR FUEL RATIO SENSOR





(a) Disconnect the air fuel ratio sensor connector and clamp.

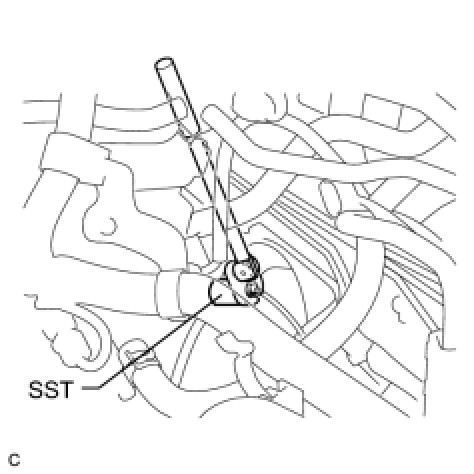

(b) Using SST, remove the air fuel ratio sensor.
SST: 09224-00010
